129704 - Dodge - F4B-GTMAH-307
Regular price
$1,264.18 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

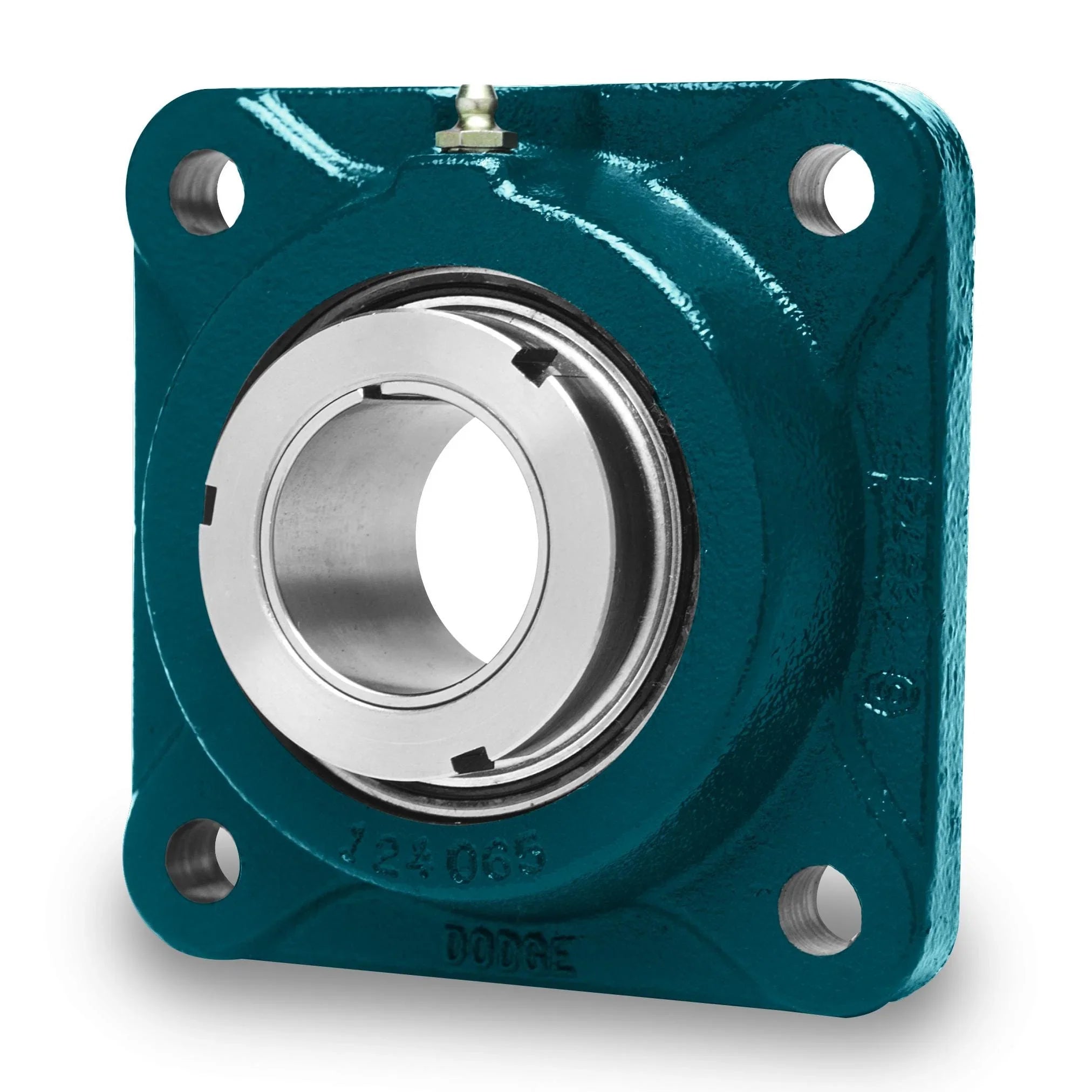

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129704 - Dodge - F4B-GTMAH-307
F4B-GTMAH-307
Technical Specifications
| Ball Bearing Series | 218 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 6.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.7500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.8000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/f4b_gtmai_asmtab.prj&varset={SERIES=218},{SS=3-7/16},{PN=129704},{DESCRIPTION=F4B-GTMAH-307},{A=2-51/64},{B=8-7/16},{C=3-37/64},{D=6-3/4},{F=3/4},{H=1},{J=3/4},{L=5},{N=4-5/8},{Z=3-17/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 21451 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2600 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 16641 |
| Static Load Capacity (Unit) | POUND_FORCE |
