129698 - Dodge - F4B-GTMAH-103
Regular price
$182.90 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

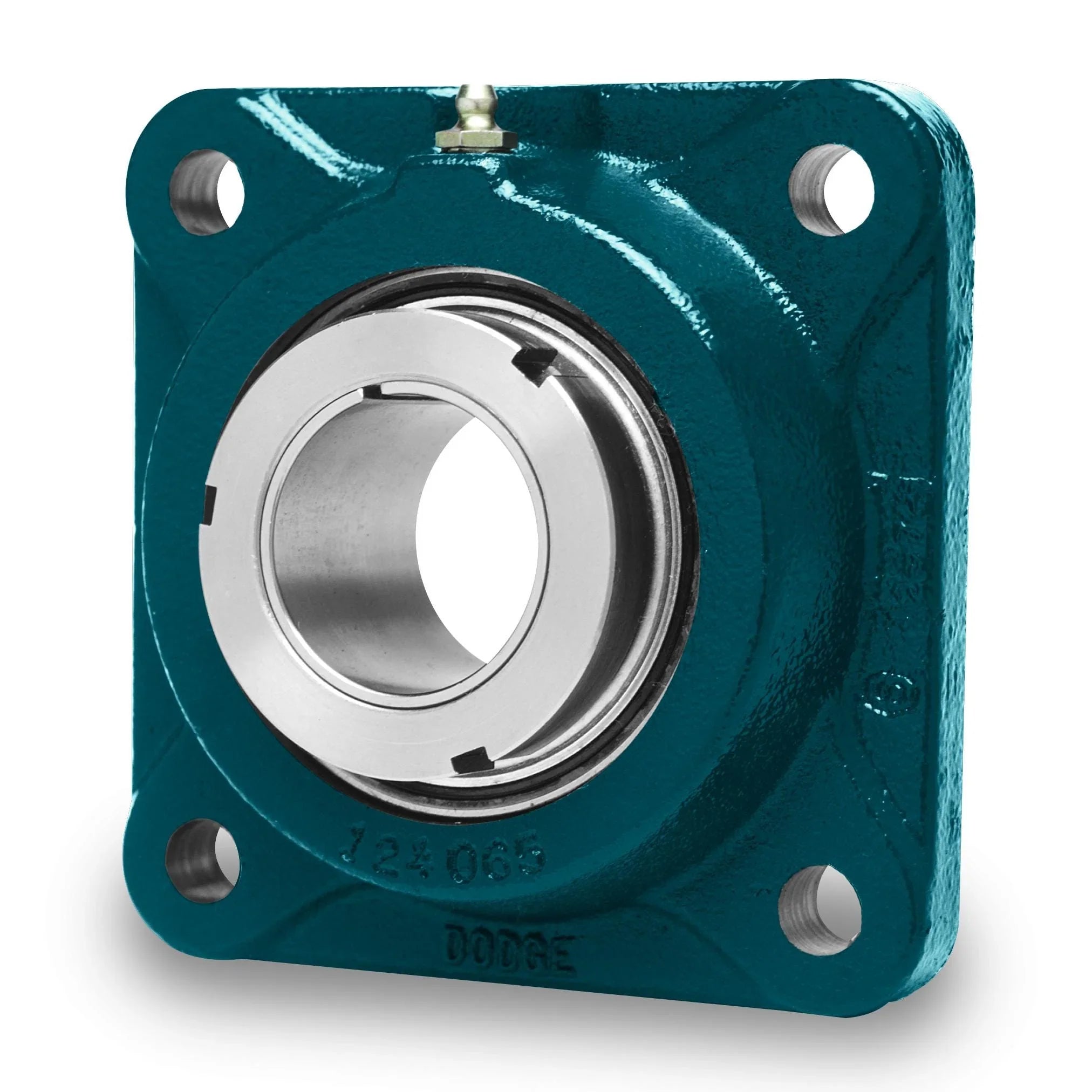

129698 - Dodge - F4B-GTMAH-103
F4B-GTMAH-103
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.7500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/f4b_gtmai_asmtab.prj&varset={SERIES=207},{SS=1-3/16},{PN=129698},{DESCRIPTION=F4B-GTMAH-103},{A=1-5/8},{B=4-3/4},{C=1-49/64},{D=3-5/8},{F=1/2},{H=9/16},{J=17/32},{L=2-19/64},{N=2-7/16},{Z=1-3/4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5758 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 6300 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
