129666 - Dodge - F4B-GTAH-215
Regular price
$630.54 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

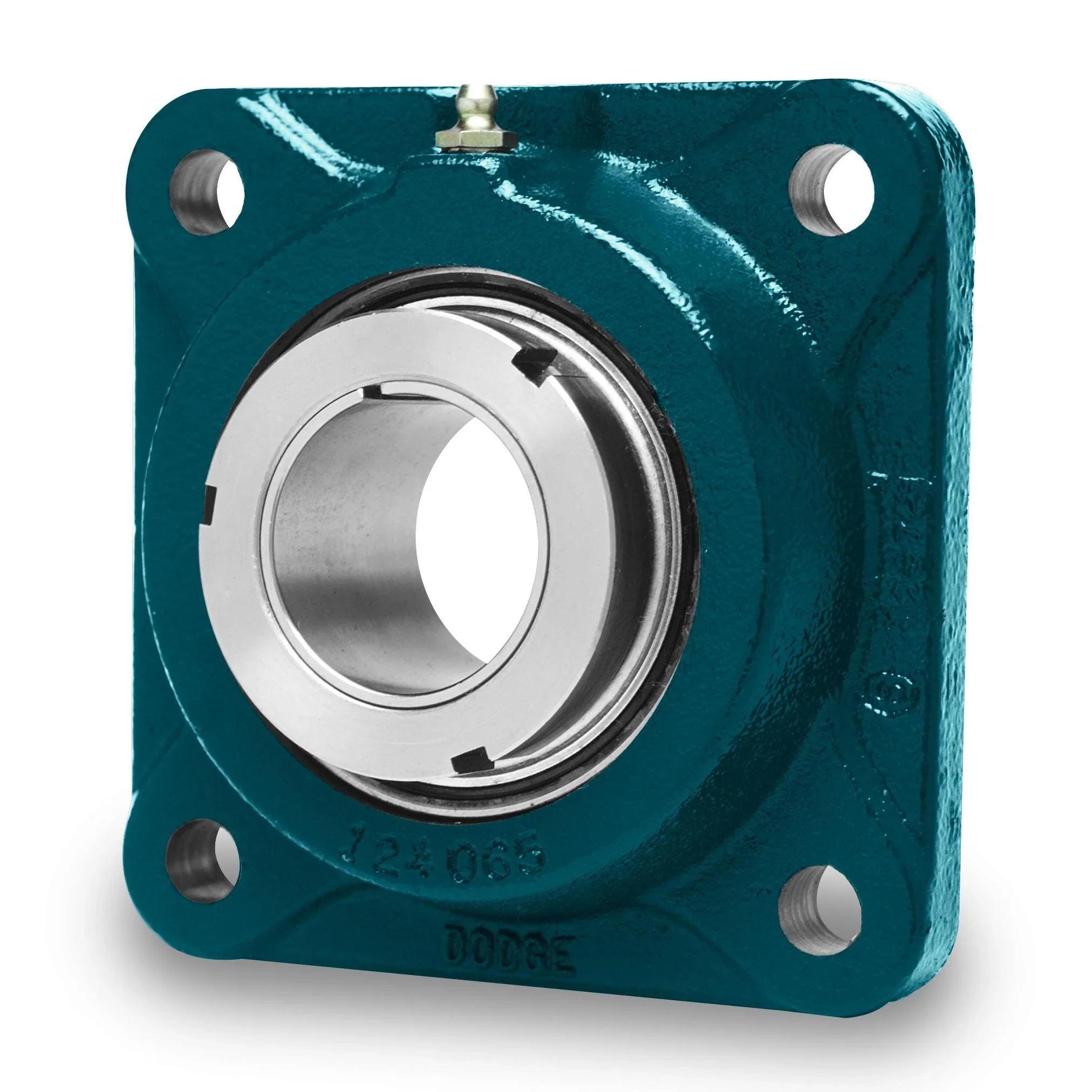

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129666 - Dodge - F4B-GTAH-215
F4B-GTAH-215
Technical Specifications
| Ball Bearing Series | 215 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 6.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.4000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/f4b_gtai_asmtab.prj&varset={SERIES=215},{SS=2-15/16},{PN=129666},{DESCRIPTION=F4B-GTAH-215},{A=2-9/16},{B=7-3/4},{C=3-3/32},{D=6},{F=3/4},{H=1},{J=51/64},{L=4-1/4},{N=3-7/8},{Z=3-3/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 14872 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 11108 |
| Static Load Capacity (Unit) | POUND_FORCE |
