129637 - Dodge - F4B-GT-008
Regular price
$92.38 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

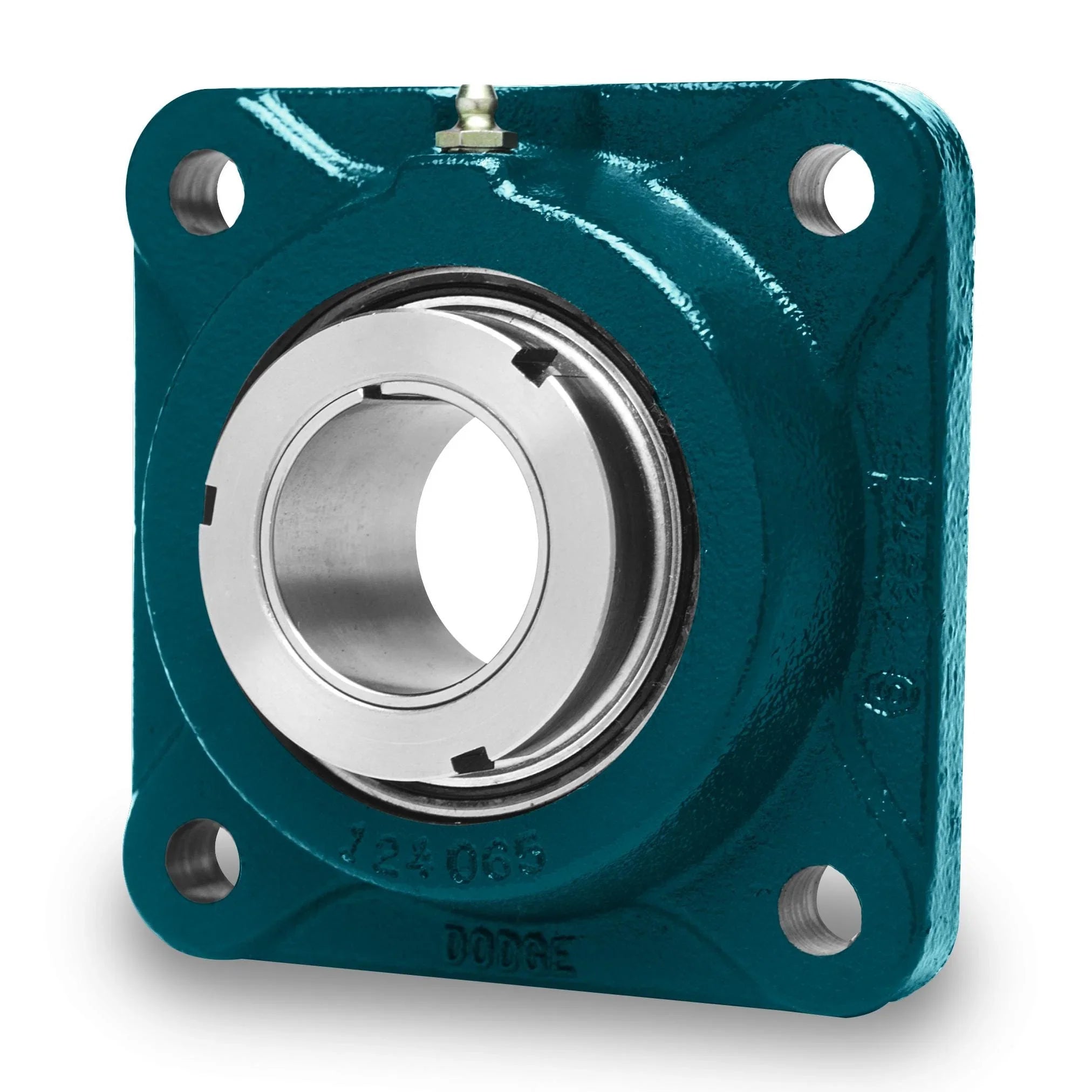

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129637 - Dodge - F4B-GT-008
F4B-GT-008
Technical Specifications
| Ball Bearing Series | 203 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 2.1300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.1300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/f4b_gi_asmtab.prj&varset={SERIES=203},{SS=1/2},{PN=129637},{DESCRIPTION=F4B-GT-008},{A=1-11/32},{B=3},{C=1-15/32},{D=2-1/8},{F=3/8},{H=7/16},{J=39/64},{L=1-13/32},{N=1-11/16},{Z=1-29/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2158 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 12000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 0.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1079 |
| Static Load Capacity (Unit) | POUND_FORCE |
