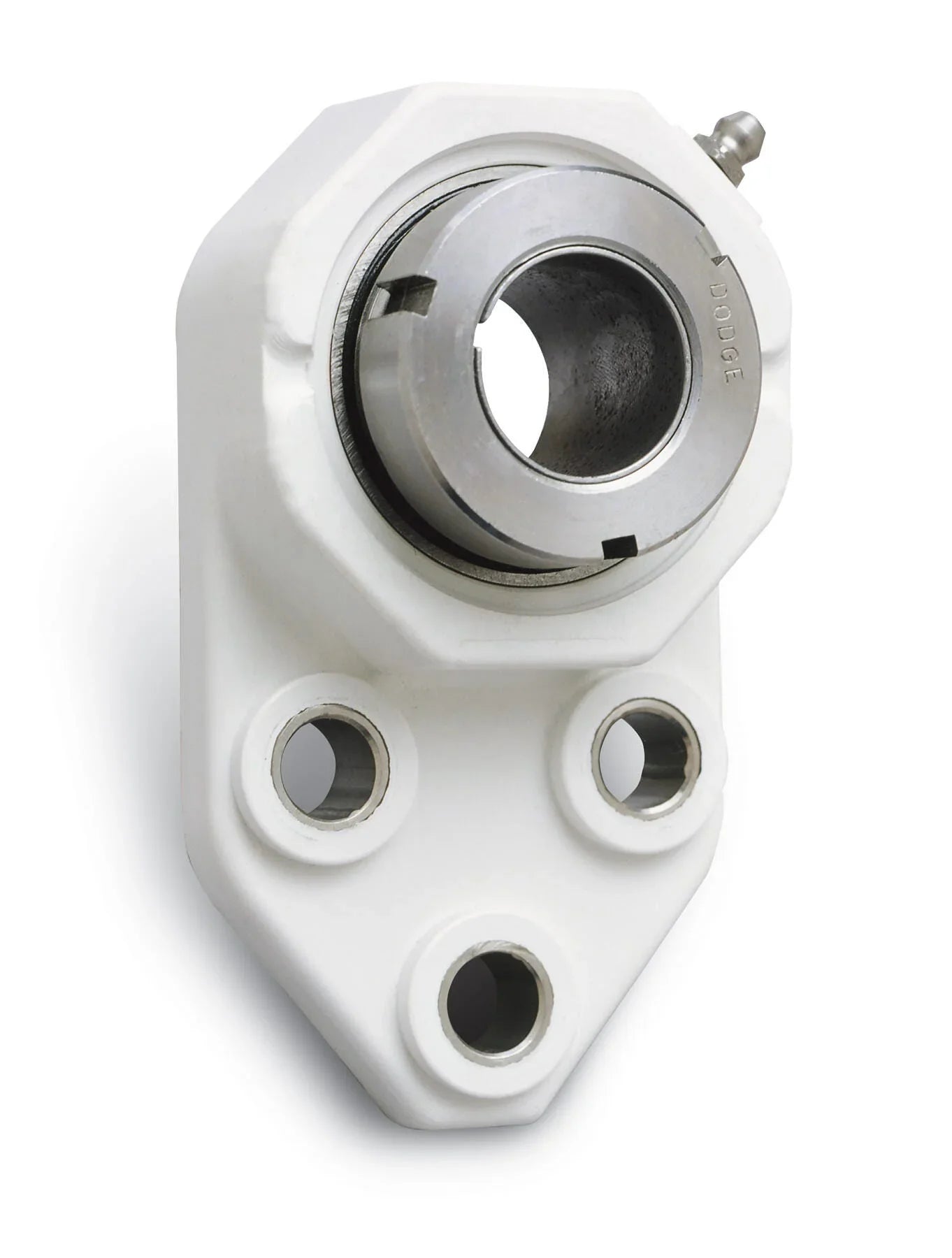

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129635 - Dodge - FB-GTEZ-107-PCR
FB-GTEZ-107-PCR
Technical Specifications
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 2.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/fb_gtez_pcr_asmtab.prj&varset={SERIES=207},{SS=1-7/16},{PN=129635},{DESCRIPTION=FB-GTEZ-107-PCR},{A=1-5/8},{B=6-7/64},{C=1-27/32},{D=2},{E=2-3/8},{F=1/2},{G=1-1/4},{H=5/8},{I=4-17/64},{J=3-45/64},{K=1-9/32},{L=2-19/64},{Z=1-53/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Flanged Bracket |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 5040 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
