129629 - Dodge - FB-GTEZ-100-PCR
Regular price
$281.15 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

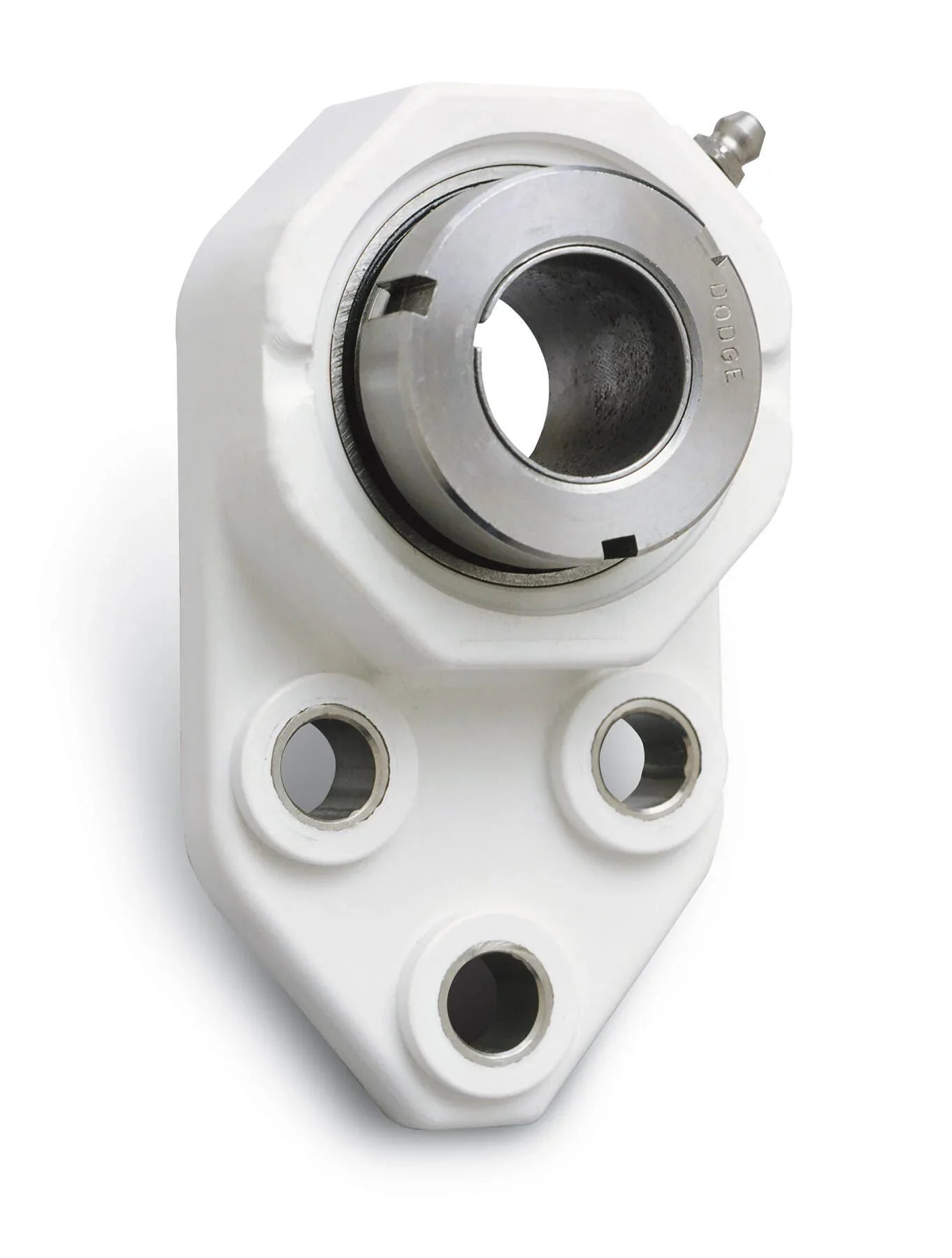

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129629 - Dodge - FB-GTEZ-100-PCR
FB-GTEZ-100-PCR
Technical Specifications
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 1.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 1.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/fb_gtez_pcr_asmtab.prj&varset={SERIES=205},{SS=1},{PN=129629},{DESCRIPTION=FB-GTEZ-100-PCR},{A=1-29/64},{B=4-29/32},{C=1-11/16},{D=1-5/8},{E=1-13/16},{F=3/8},{G=1-1/8},{H=35/64},{I=3-9/16},{J=2-23/32},{K=1-9/64},{L=1-51/64},{Z=1-43/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Flanged Bracket |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 7200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
