129346 - Dodge - F2B-GTEZ-104-PCR
Regular price
$297.34 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

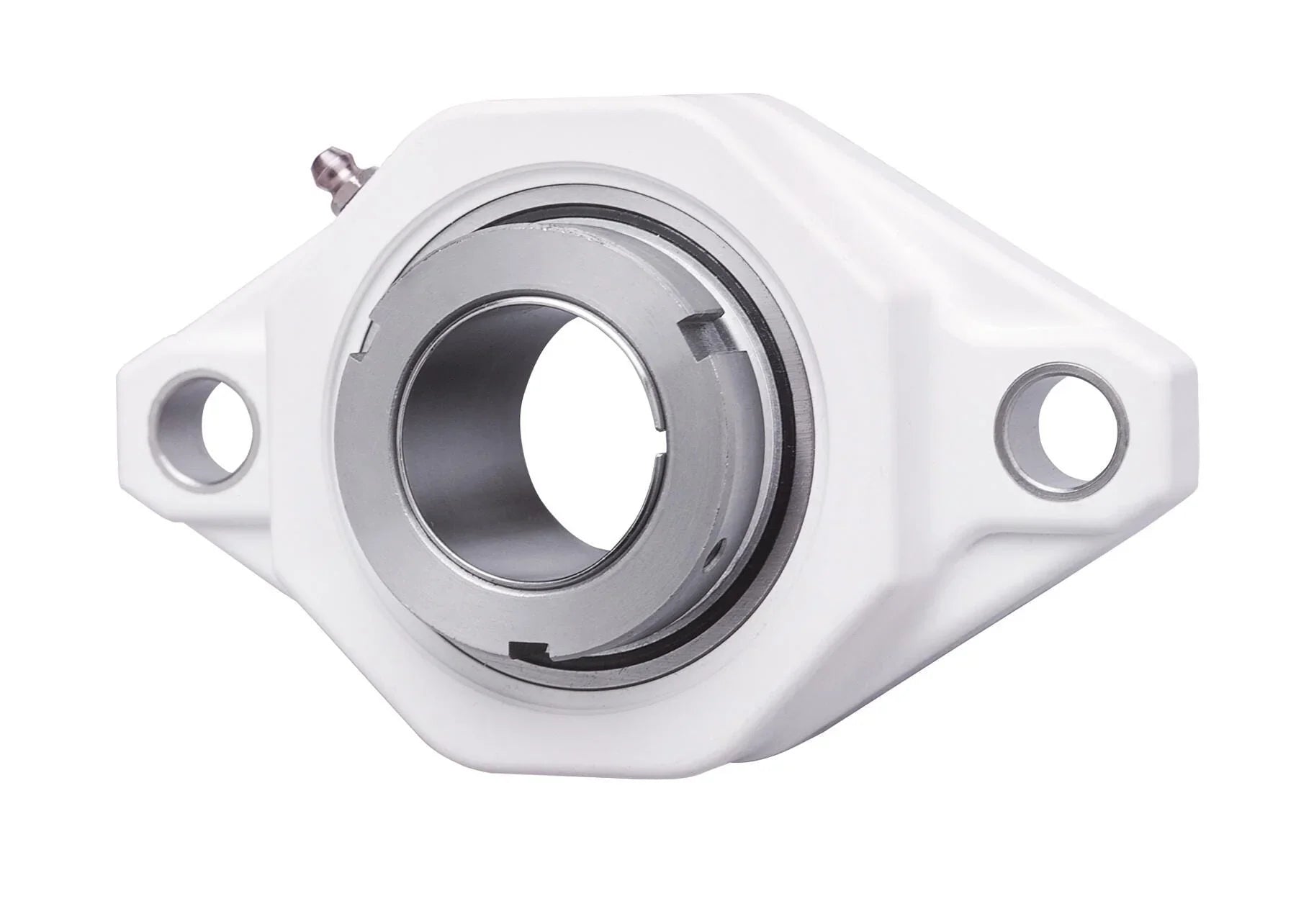

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129346 - Dodge - F2B-GTEZ-104-PCR
F2B-GTEZ-104-PCR
Technical Specifications
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 5.1200 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.1200 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/f2b_gtez_pcr_i_asmtab.prj&varset={SERIES=207},{SS=1-1/4},{PN=129346},{DESCRIPTION=F2B-GTEZ-104-PCR},{A=1-5/8},{B=6-5/16},{C=1-27/32},{D=5-1/8},{F=1/2},{H=5/8},{J=35/64},{L=2-19/64},{M=3-45/64},{Z=1-53/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Flange |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 5040 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
