129336 - Dodge - F2B-GTM-115
Regular price
$279.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

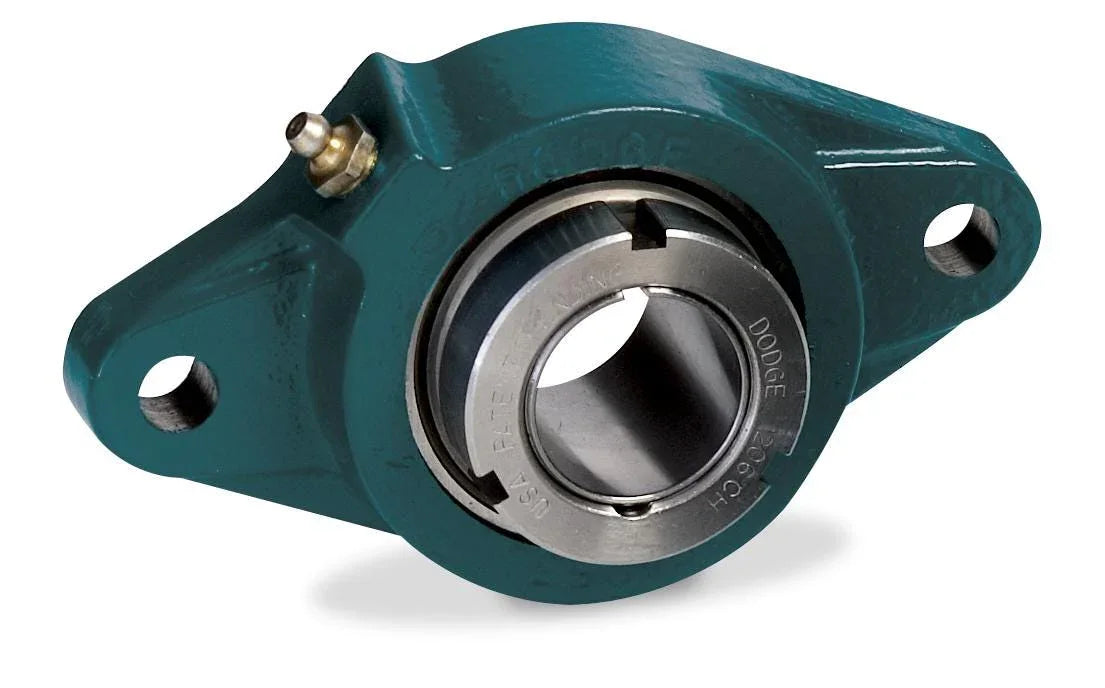

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129336 - Dodge - F2B-GTM-115
F2B-GTM-115
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 7.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bore Length | 1.9300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/f2b_gtm_i_asmtab.prj&varset={SERIES=211},{SS=1 -15/16},{PN=129336},{DESCRIPTION=F2B-GTM-115},{A=1-59/64},{B=8-5/8},{C=2-5/32},{D=7-1/4},{F=5/8},{H=11/16},{J=17/32},{L=3-1/4},{M=5-1/4},{N=2-17/64},{Z=2-1/8}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4300 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
