129322 - Dodge - F2B-GT-20M
Regular price
$101.06 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

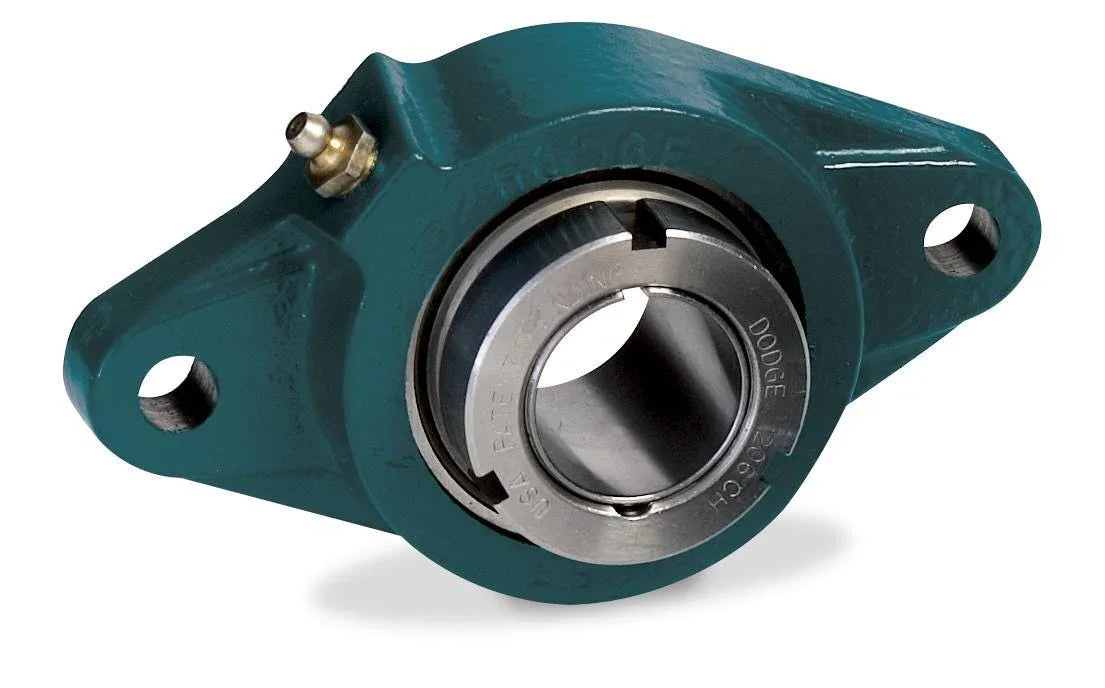

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129322 - Dodge - F2B-GT-20M
F2B-GT-20M
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.5300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/f2b_gt_asmtab.prj&varset={SERIES=204},{SS=20},{PN=129322},{DESCRIPTION=F2B-GT-20M},{A=37.3},{B=111.9},{C=40.9},{D=89.7},{F=M10},{H=12.7},{J=15.9},{L=38.1},{M=60.3},{N=38.1},{Z=40.9}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 10000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 20.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
