129315 - Dodge - F2B-GT-111
Regular price
$195.92 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

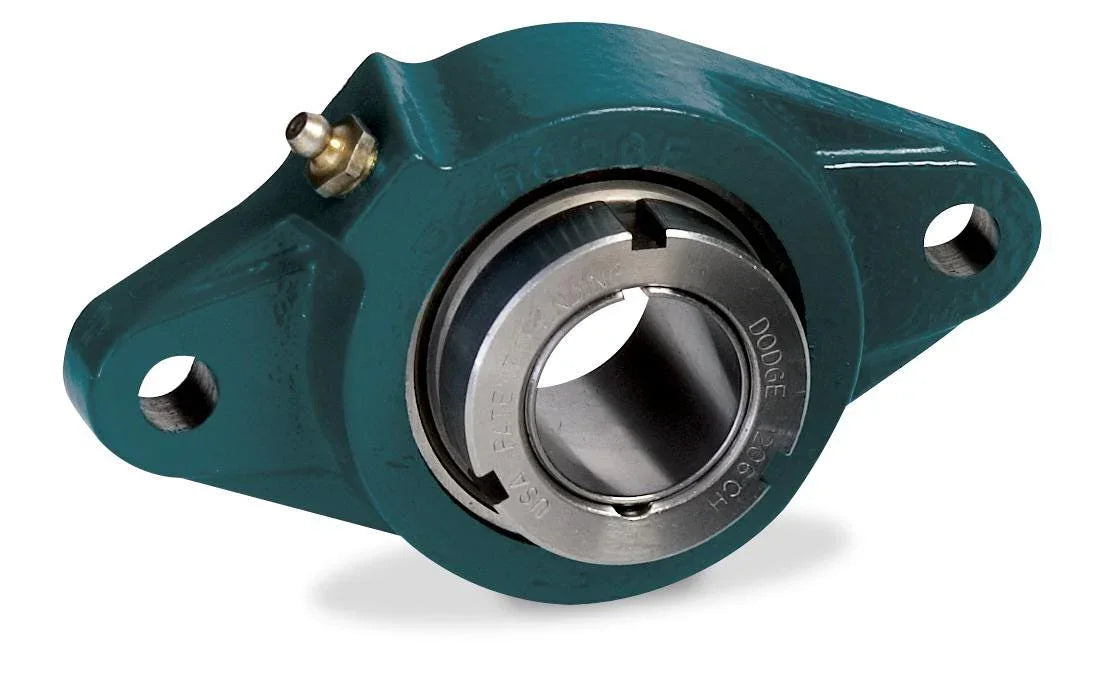

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129315 - Dodge - F2B-GT-111
F2B-GT-111
Technical Specifications
| Ball Bearing Series | 209 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 5.8400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.8400 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.8500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/f2b_gt_i_asmtab.prj&varset={SERIES=209},{SS=1-11/16},{PN=129315},{DESCRIPTION=F2B-GT-111},{A=1-27/32},{B=7-1/16},{C=2},{D=5-27/32},{F=1/2},{H=5/8},{J=9/16},{L=2-43/64},{M=4-3/8},{N=1-29/32},{Z=1-31/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5300 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
