129298 - Dodge - TB-GTEZ-104-PCR
Regular price
$359.17 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

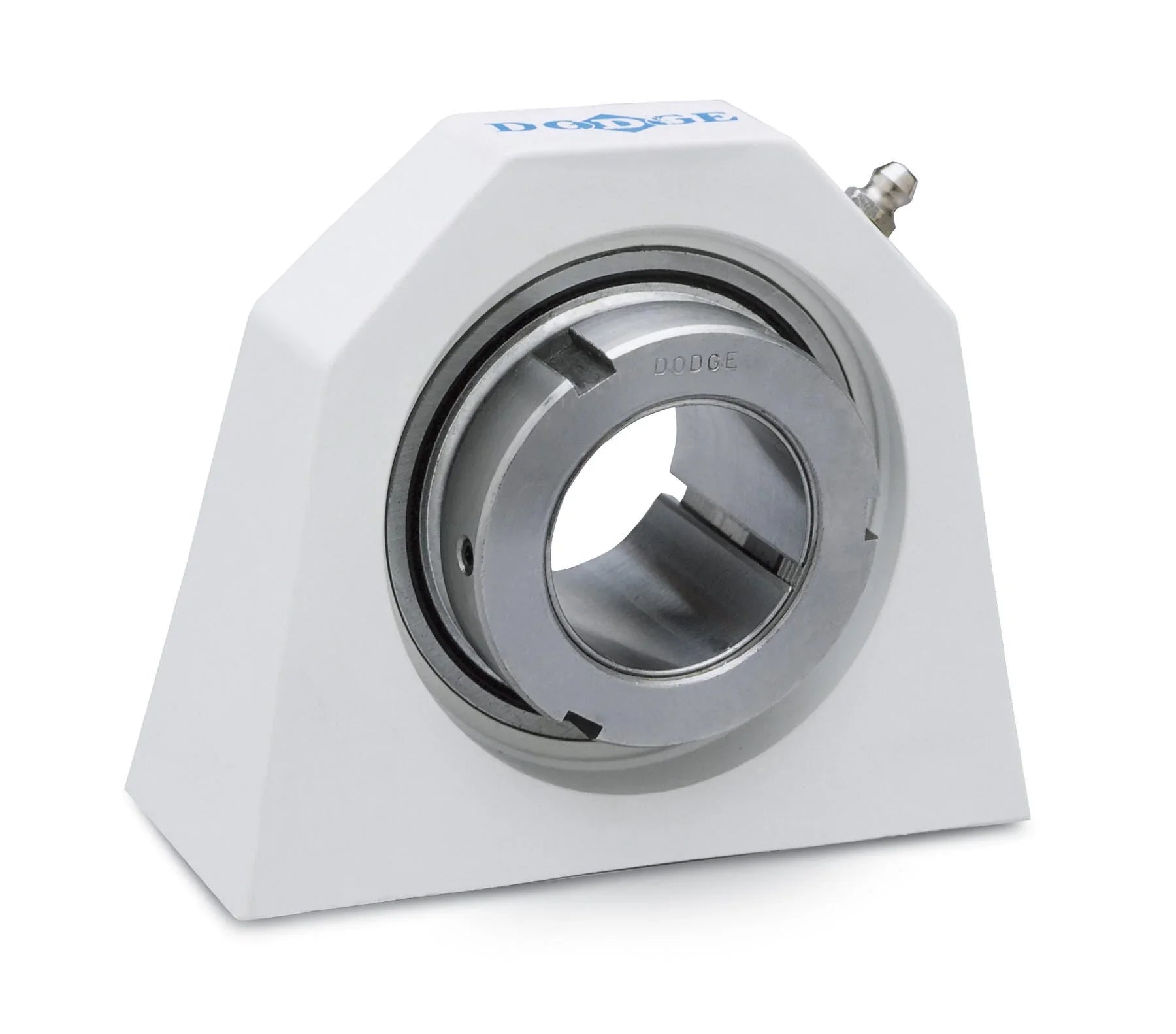

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129298 - Dodge - TB-GTEZ-104-PCR
TB-GTEZ-104-PCR
Technical Specifications
| Base to Center Height | 1.8800 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/tb_gtez_asmtab_i.prj&varset={SERIES=207},{SS=1-1/4},{PN=129298},{DESCRIPTION=TB-GTEZ-104-PCR},{A=1-5/8},{B=4-5/8},{C=1-57/64},{D=3-1/4},{J=3-53/64},{L=2-19/64},{M=1-7/8},{N=35/64},{R=1/2-13},{S=1-1/16},{Z=1-3/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 5040 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
