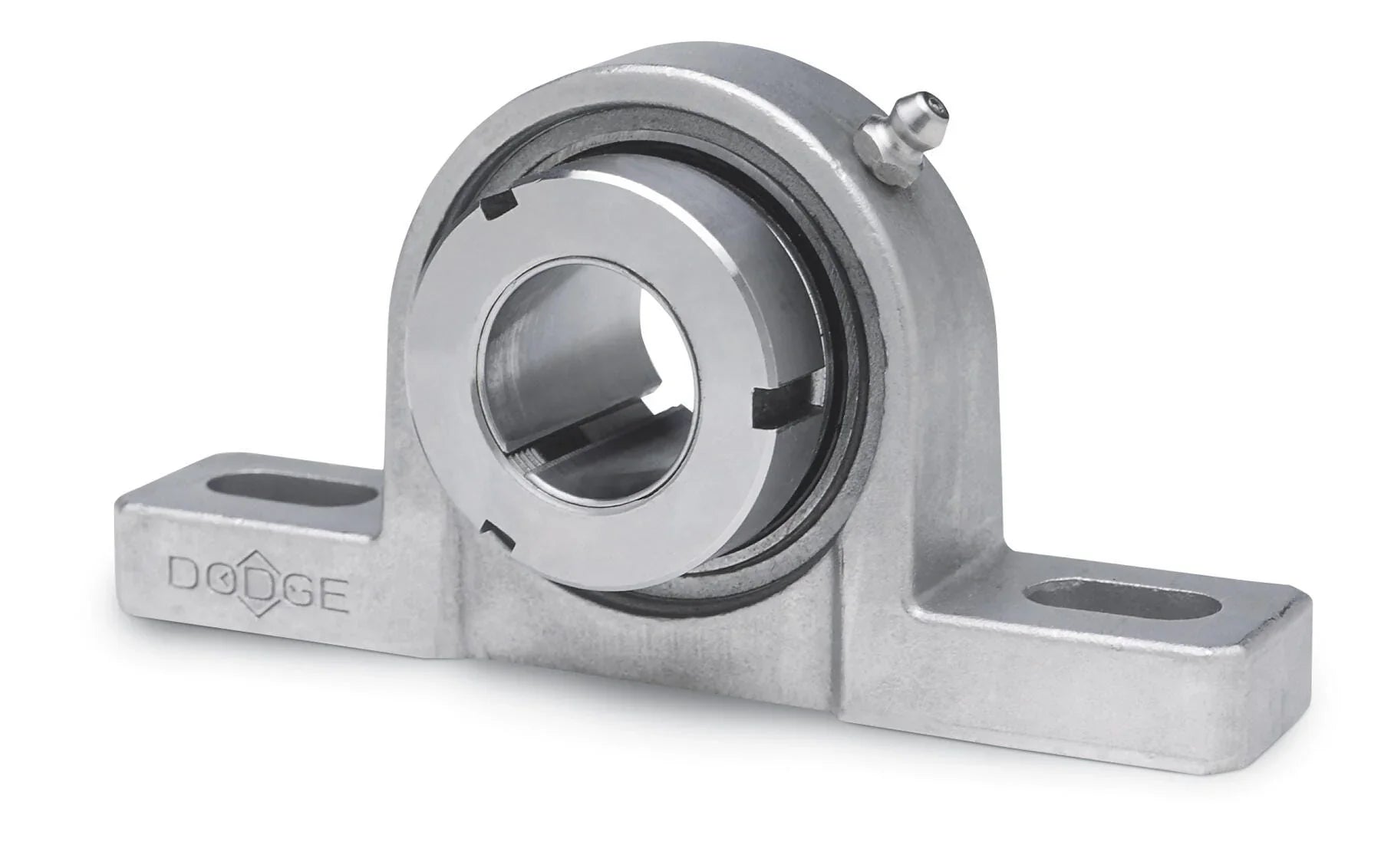

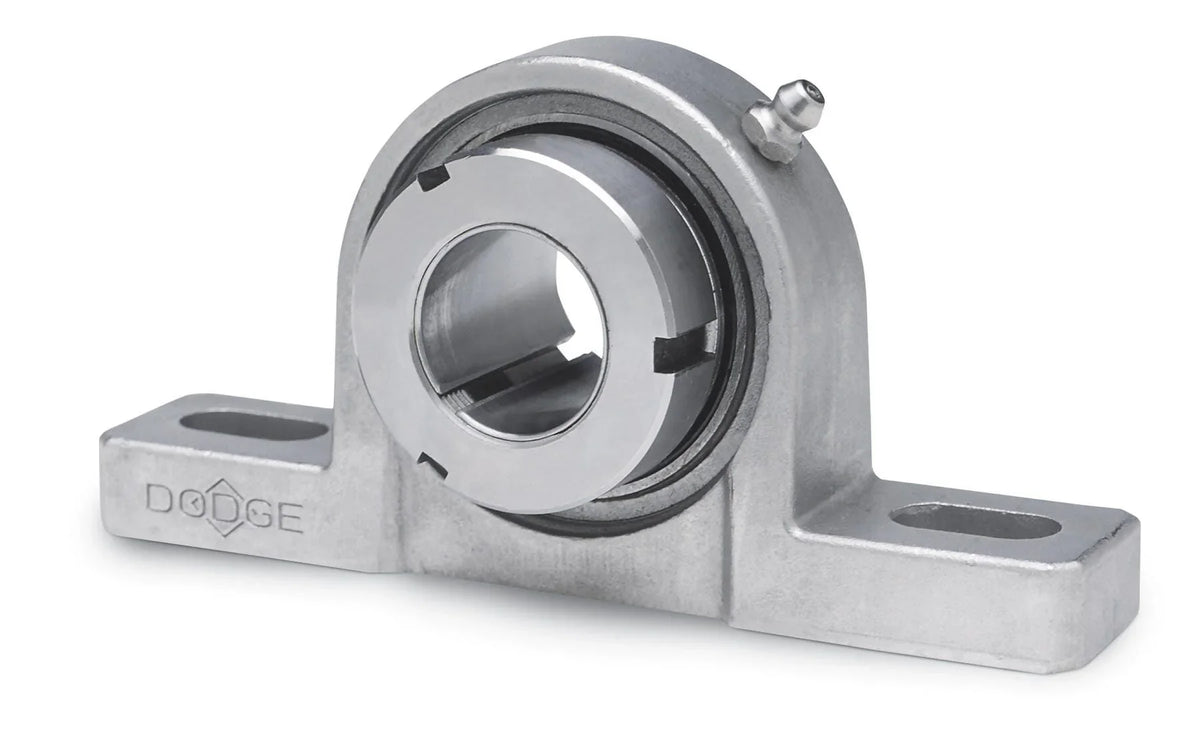

129275 - Dodge - P2B-GTEZ-50M-SHCR
Regular price
$464.17 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129275 - Dodge - P2B-GTEZ-50M-SHCR
P2B-GTEZ-50M-SHCR
Technical Specifications
| Base to Center Height | 1.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 6.6800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.7600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.8600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/p2b_gtez_shcr_asmtab.prj&varset={SERIES=210},{SS=50},{PN=129275},{DESCRIPTION=P2B-GTEZ-50M-SHCR},{A=47.2},{B=203.2},{C=41.3},{DMIN=146.4},{DMAX=169.9},{F=M16},{G=29.0},{H=15.9},{J=109.5},{L=74.6},{M=57.2},{R=16.7},{S=30.6},{Z=29.4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 3840 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 50.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 5213 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-30,TS-300 |
