129262 - Dodge - P2B-GTEZ-100-SHCR
Regular price
$239.45 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

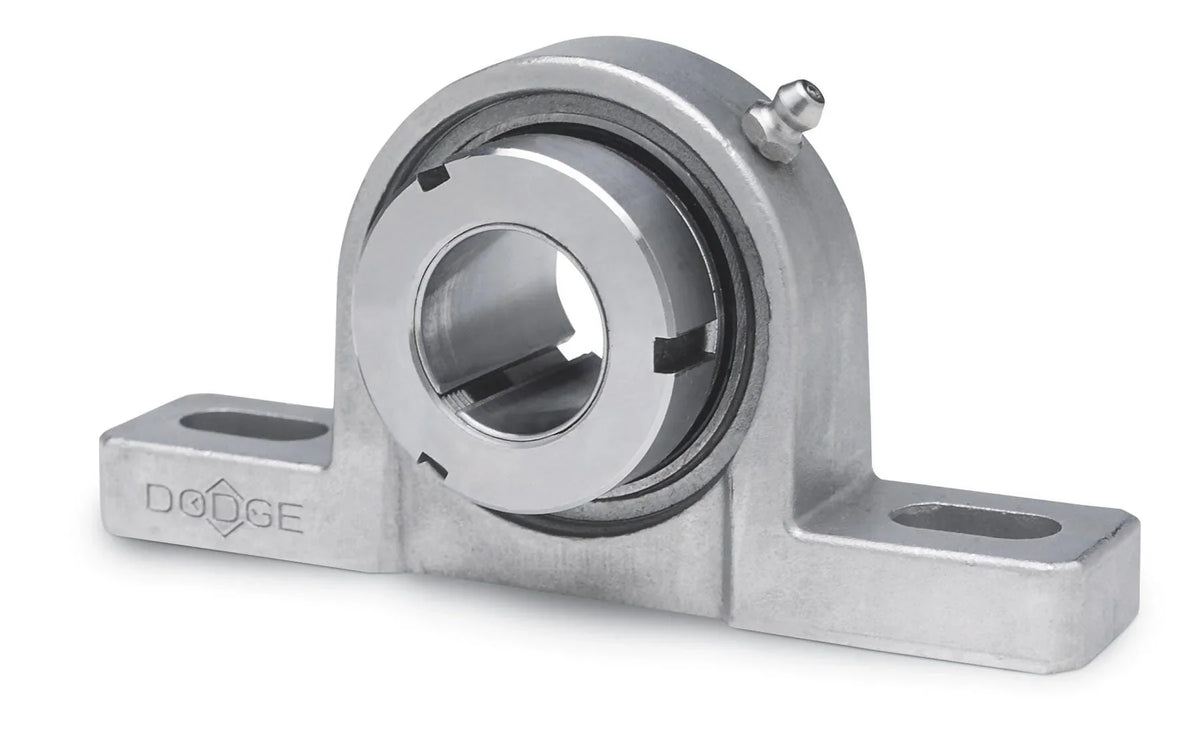

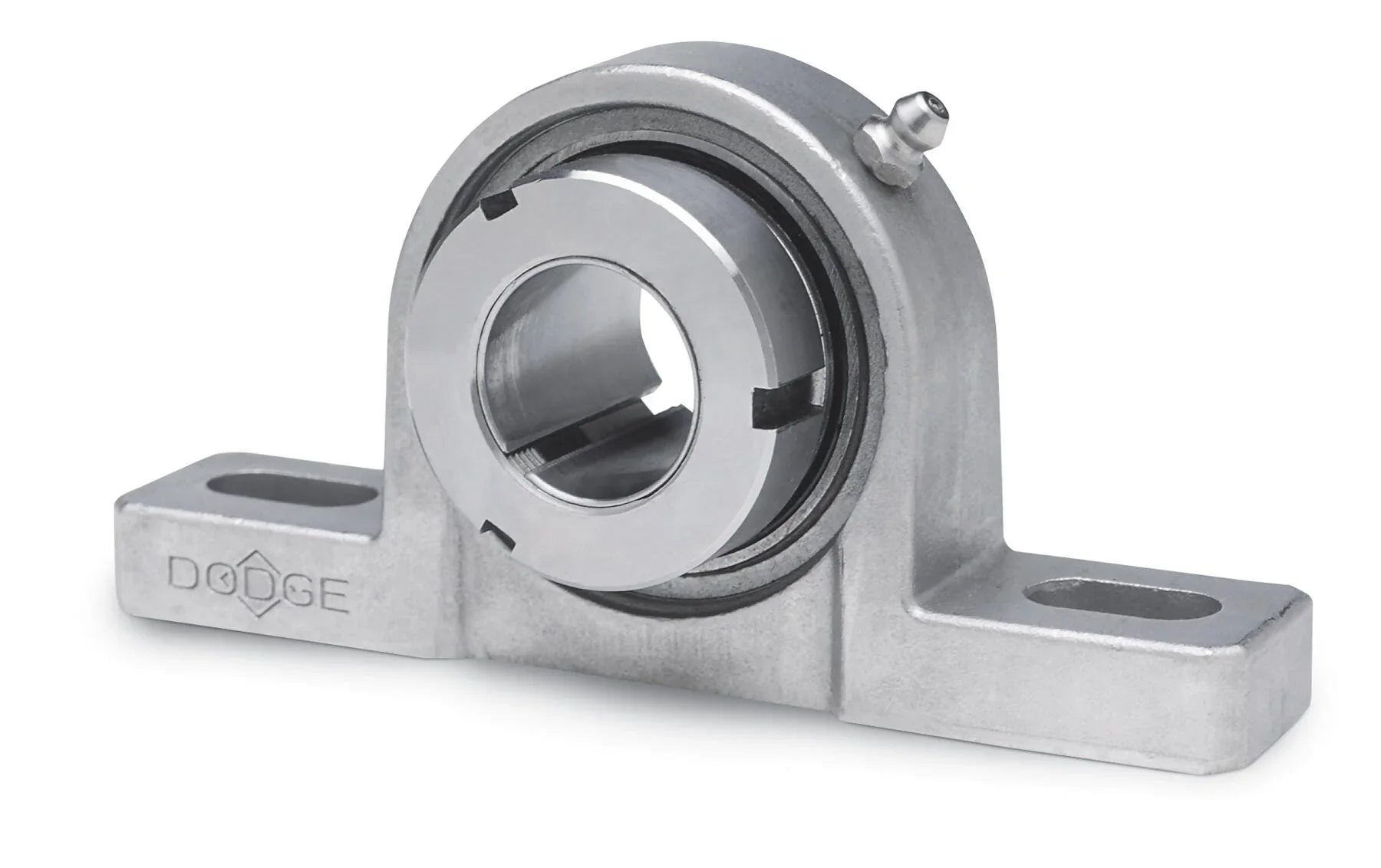

129262 - Dodge - P2B-GTEZ-100-SHCR
P2B-GTEZ-100-SHCR
Technical Specifications
| Base to Center Height | 1.4400 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 4.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.6800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/p2b_gtez_shcr_asmtab_i.prj&varset={SERIES=205},{SS=1},{PN=129262},{DESCRIPTION=P2B-GTEZ-100-SHCR},{A=1-29/64},{B=5-1/2},{C=1-1/8},{DMIN=3-11/16},{DMAX=4-1/2},{F=3/8},{G=27/32},{H=17/32},{J=2-23/32},{L=1-51/64},{M=1-7/16},{R=1/2},{S=61/64},{Z=61/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 7200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
