129257 - Dodge - P2B-GTEZ-45M-PCR
Regular price
$383.21 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

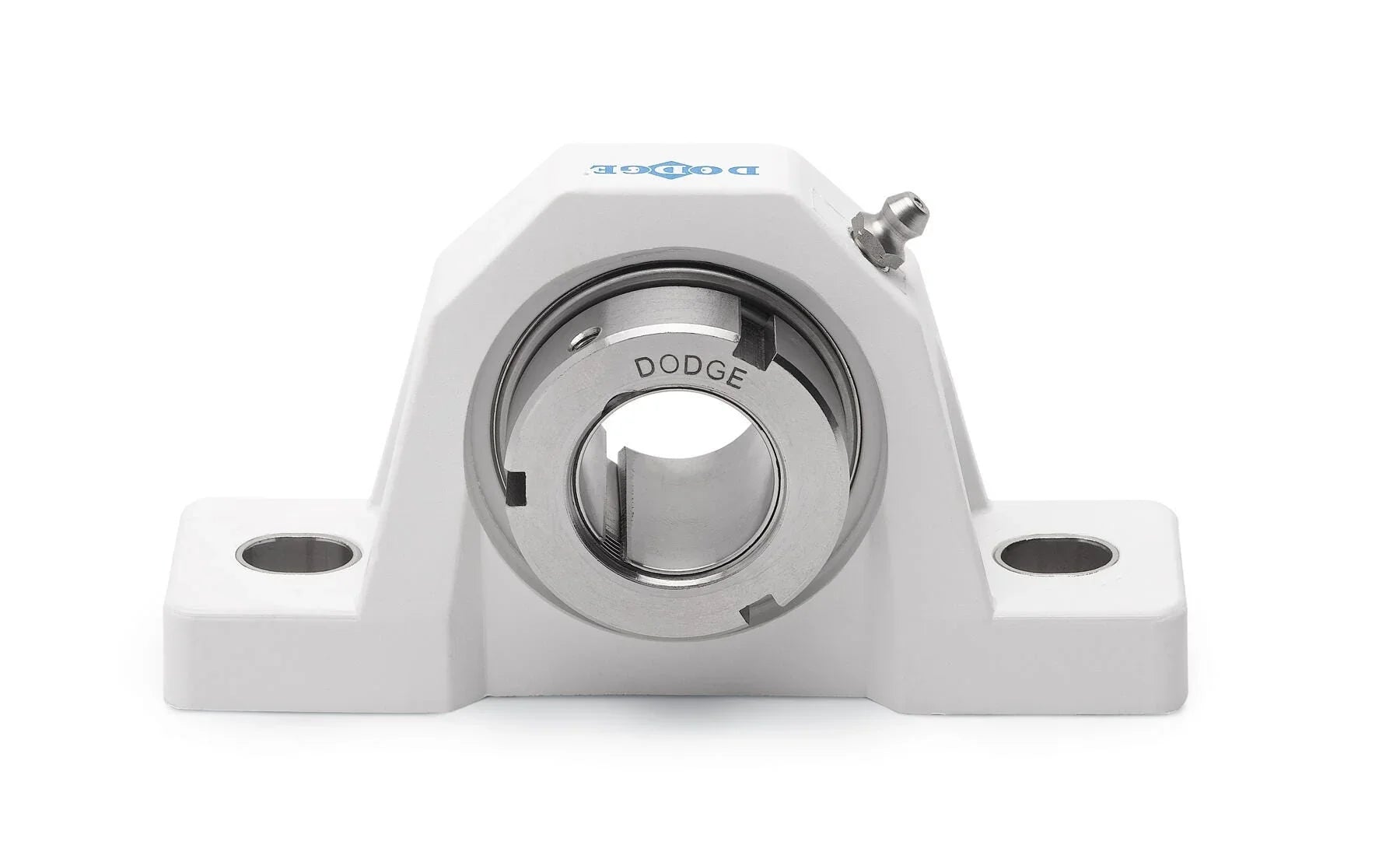

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129257 - Dodge - P2B-GTEZ-45M-PCR
P2B-GTEZ-45M-PCR
Technical Specifications
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 5.9600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.4200 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.8500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/p2b_gtez_pcr_body_asmtab.prj&varset={SERIES=209},{SS=45},{PN=129257},{DESCRIPTION=P2B-GTEZ-45M-PCR},{A=46.8},{B=183.0},{C=53.6},{DMIN=137.7},{DMAX=151.6},{F=M12},{G=22.2},{H=21.4},{J=109.5},{L=67.9},{M=54.0},{R=16.7},{S=30.2},{Z=29.4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 4240 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 45.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
