129255 - Dodge - P2B-GTBEZ-40M-PCR
Regular price
$314.52 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

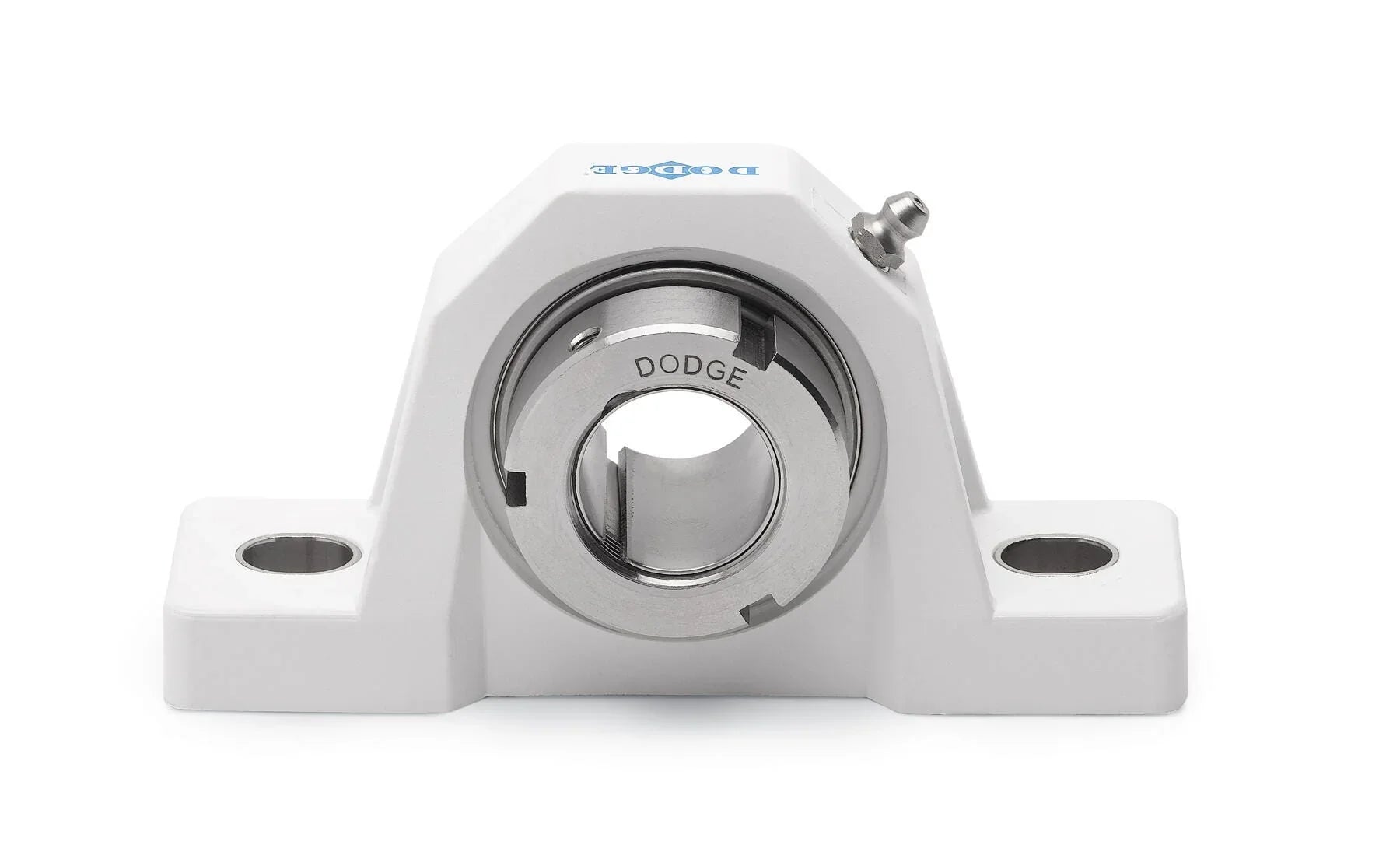

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129255 - Dodge - P2B-GTBEZ-40M-PCR
P2B-GTBEZ-40M-PCR
Technical Specifications
| Base to Center Height | 1.9400 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 5.6400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.1000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/p2b_gtez_pcr_body_asmtab.prj&varset={SERIES=208},{SS=40},{PN=129255},{DESCRIPTION=P2B-GTBEZ-40M-PCR},{A=46.8},{B=183.0},{C=53.6},{DMIN=129.8},{DMAX=143.3},{F=M12},{G=22.2},{H=19.4},{J=106.0},{L=63.5},{M=49.2},{R=16.7},{S=30.2},{Z=29.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 4480 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
