129254 - Dodge - P2B-GTBEZ-108-PCR
Regular price
$314.52 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

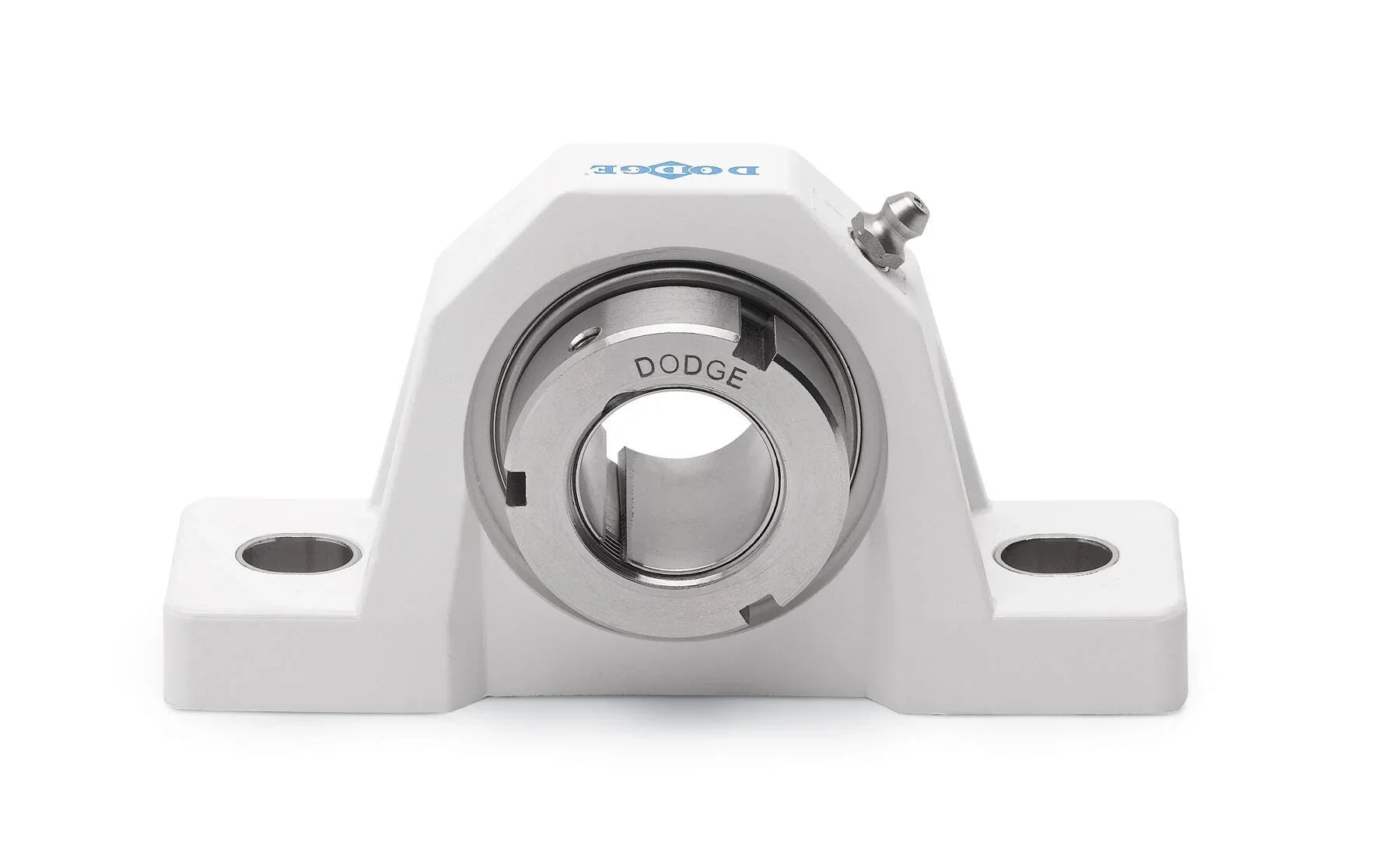

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129254 - Dodge - P2B-GTBEZ-108-PCR
P2B-GTBEZ-108-PCR
Technical Specifications
| Base to Center Height | 1.9400 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 5.6400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.1000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/p2b_gtez_pcr_bodi_asmtab.prj&varset={SERIES=208},{SS=1-1/2},{PN=129254},{DESCRIPTION=P2B-GTBEZ-108-PCR},{A=1-27/32},{B=7-13/64},{C=2-7/64},{DMIN=5-7/64},{DMAX=5-41/64},{F=1/2},{G=7/8},{H=49/64},{J=4-11/64},{L=2-1/2},{M=1-15/16},{R=21/32},{S=1-3/16},{Z=1-9/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 4480 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
