129245 - Dodge - P2B-GTEZ-20M-PCR
Regular price
$196.76 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

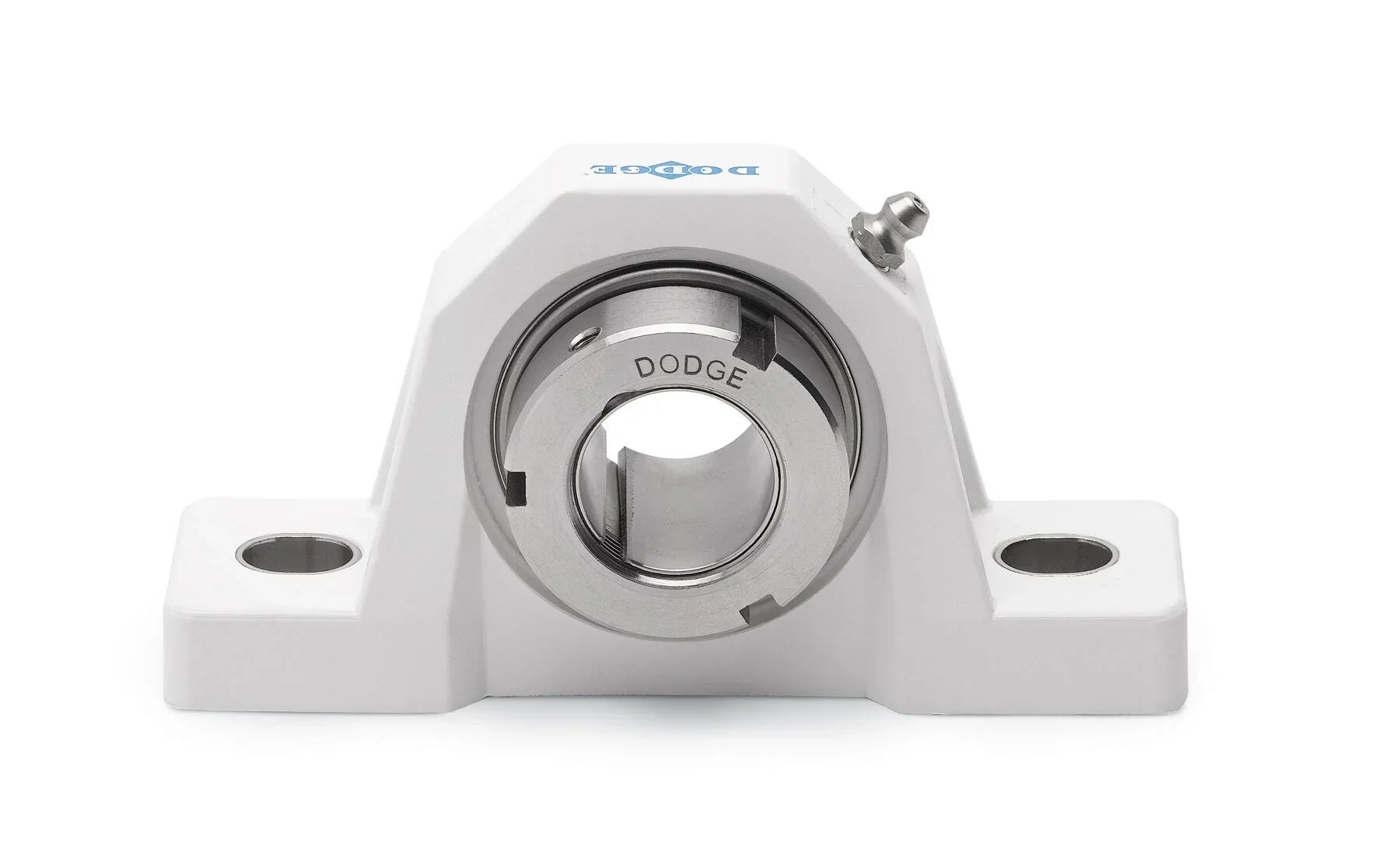

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129245 - Dodge - P2B-GTEZ-20M-PCR
P2B-GTEZ-20M-PCR
Technical Specifications
| Base to Center Height | 1.3100 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.9200 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.6600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/p2b_gtez_pcr_body_asmtab.prj&varset={SERIES=204},{SS=20},{PN=129245},{DESCRIPTION=P2B-GTEZ-20M-PCR},{A=37.3},{B=127.8},{C=37.7},{DMIN=93.3},{DMAX=99.6},{F=M10},{G=15.1},{H=15.5},{J=66.7},{L=38.1},{M=33.3},{R=12.3},{S=25.0},{Z=25.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 8000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 20.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-10,TS-100 |
