129233 - Dodge - P2B-GTM-308
Regular price
$1,049.66 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

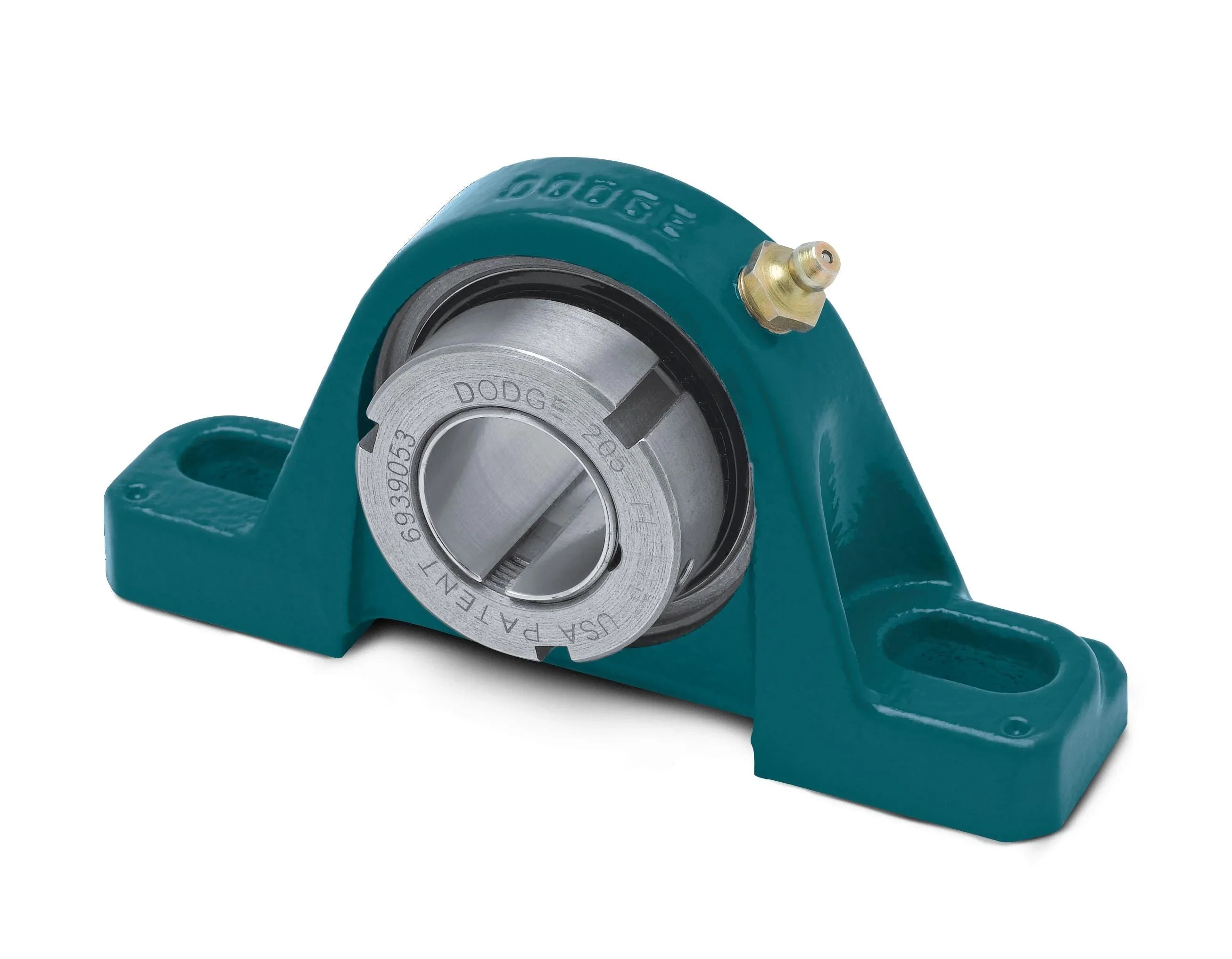

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129233 - Dodge - P2B-GTM-308
P2B-GTM-308
Technical Specifications
| Ball Bearing Series | 218 Series |
| Base to Center Height | 4.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 11.6200 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 10.3200 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.8000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/p2b_gtm_asmtab_i.prj&varset={SERIES=218},{SS=3-1/2},{PN=129233},{DESCRIPTION=P2B-GTM-308},{A=2-51/64},{B=14},{C=3-3/8},{DMIN=10-5/16},{DMAX=11-5/8},{F=7/8},{G=1-19/32},{H=1-5/16},{J=7-31/32},{L=5},{M=4},{R=1},{S=1-51/64},{U=6-9/16},{V=13-1/8},{W=1-3/16},{X=3/16},{Z=1-3/4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 21451 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2600 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 16641 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-50 |
