129204 - Dodge - P2B-GTU-17M
Regular price
$92.38 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

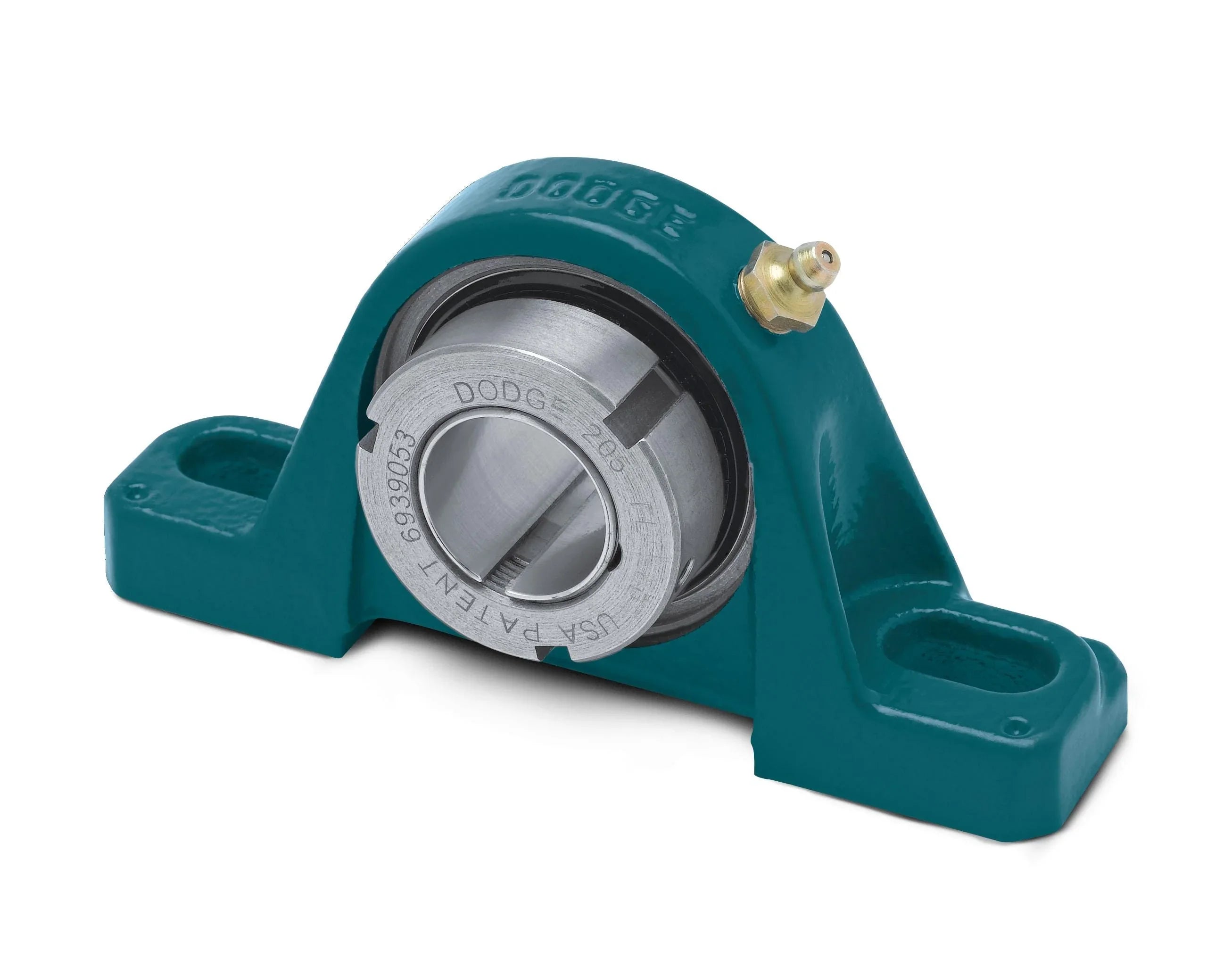

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129204 - Dodge - P2B-GTU-17M
P2B-GTU-17M
Technical Specifications
| Ball Bearing Series | 203 Series |
| Base to Center Height | 1.1900 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 4.0600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/p2b_gt_asmtab.prj&varset={SERIES=203},{SS=17},{PN=129204},{DESCRIPTION=P2B-GTU-17M},{A=34.1},{B=127.0},{C=30.6},{DMIN=82.6},{DMAX=103.2},{F=M10},{G=21.4},{H=13.5},{J=57.9},{L=35.7},{M=30.2},{R=10.3},{S=23.8},{U=57.2},{V=114.3},{W=9.5},{X=3.2},{Z=23.4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2158 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 12000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 17.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1079 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-10 |
