129186 - Dodge - P2B-GTB-100
Regular price
$109.74 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

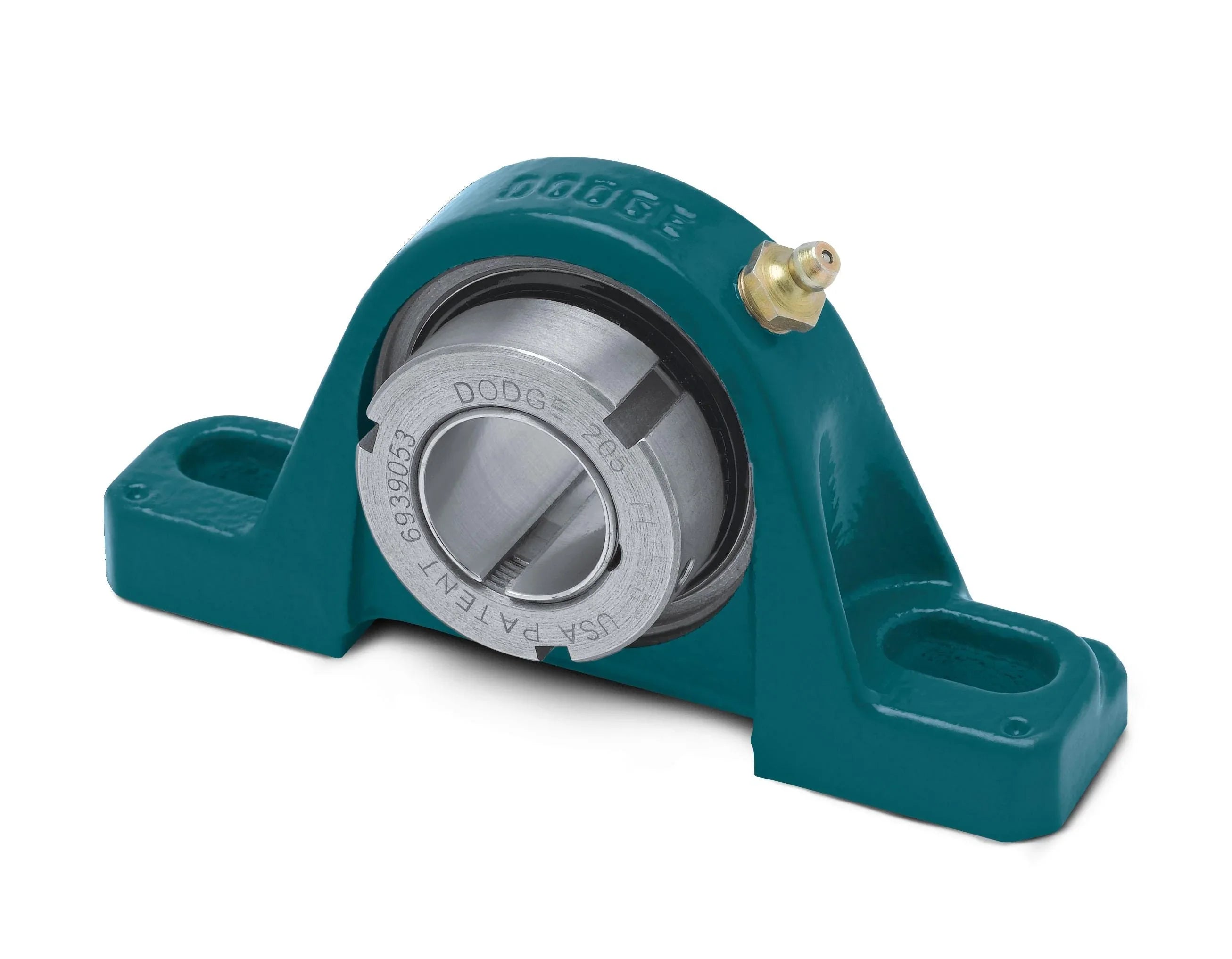

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129186 - Dodge - P2B-GTB-100
P2B-GTB-100
Technical Specifications
| Ball Bearing Series | 205 Series |
| Base to Center Height | 1.4400 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 4.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.6900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/p2b_gtb_asmtab_i.prj&varset={SERIES=205},{SS=1},{PN=129186},{DESCRIPTION=P2B-GTB-100},{A=1-29/64},{B=5-1/2},{C=1-13/32},{DMIN=3-11/16},{DMAX=4-1/2},{F=3/8},{G=27/32},{H=29/64},{J=2-21/32},{L=1-51/64},{M=1-5/16},{R=1/2},{S=61/64},{U=2-1/2},{V=5},{W=1/2},{X=3/16},{Z=61/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 9000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-10,TS-100 |
