128870 - Dodge - INS-ER-DL-012
Regular price
$66.92 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

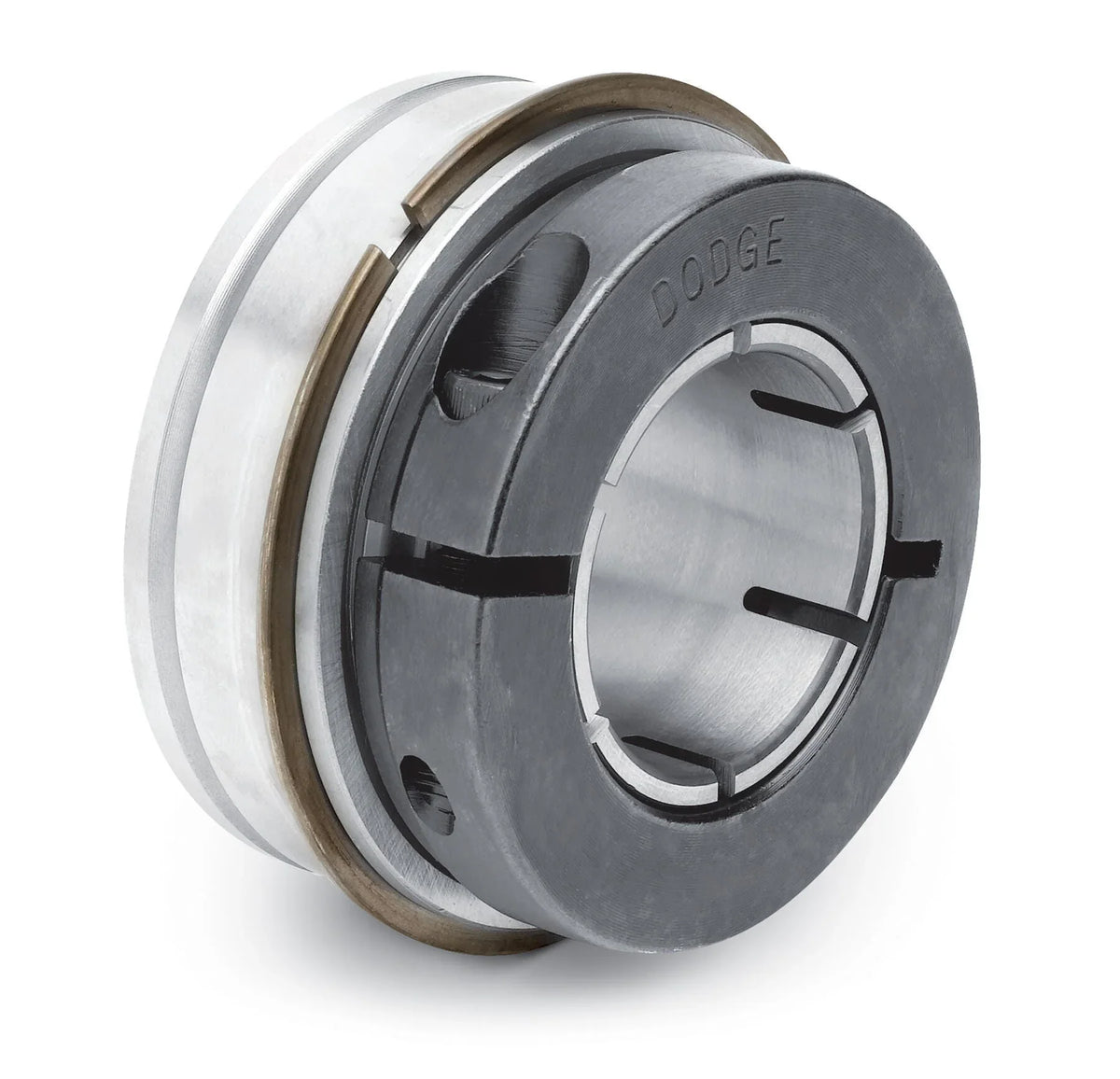

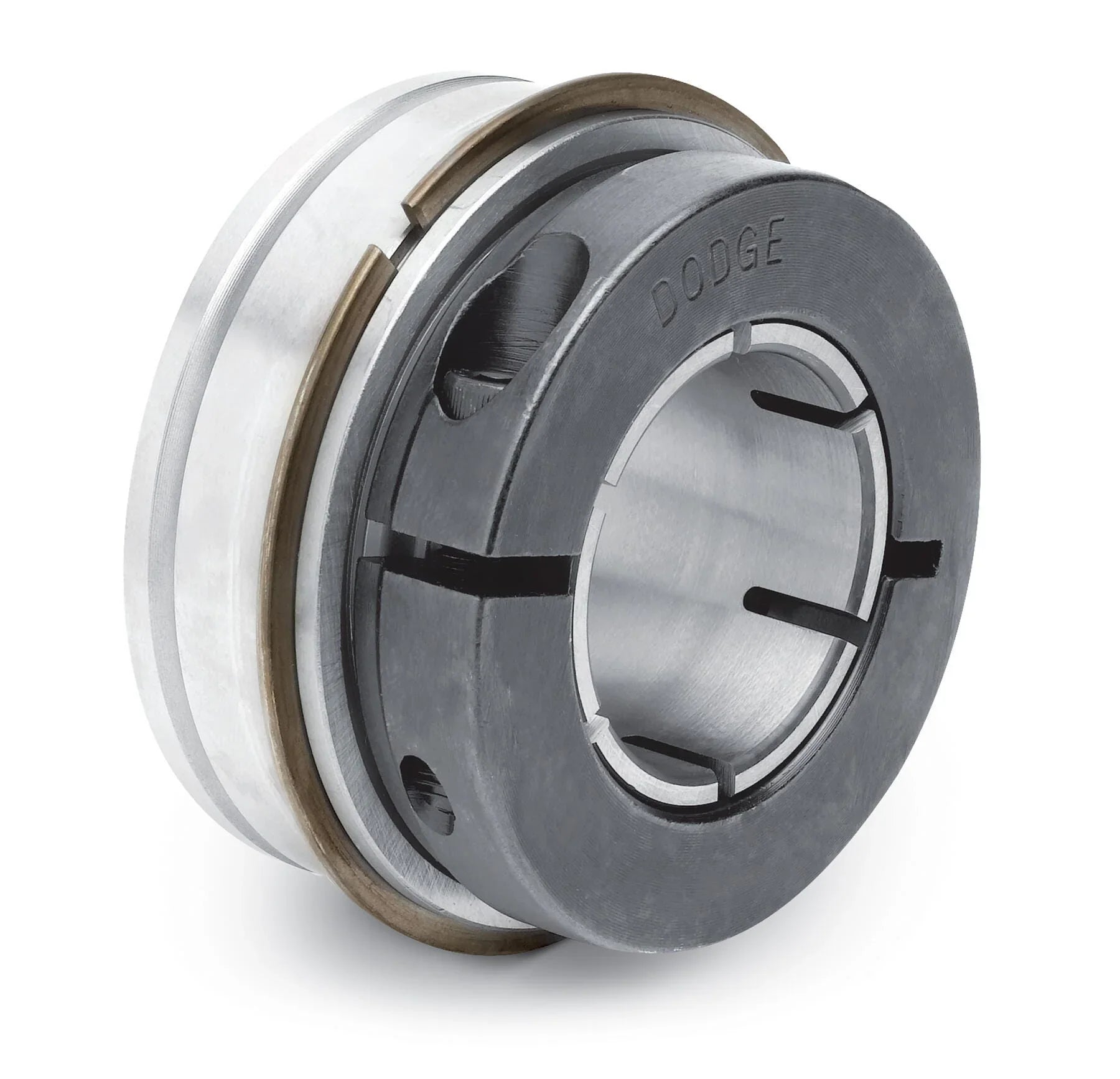

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
128870 - Dodge - INS-ER-DL-012
INS-ER-DL-012
Technical Specifications
| Bearing Type | Ball |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/inch/ins_er_dl.prj&varset={SERIES=204},{BORE=3/4},{PN=128870},{DESCRIPTION=ER-DL-012},{A=1.28},{B=0.78},{C=0.50},{D=0.72},{E=1.8501},{F=1.71},{M2=0.1640},{G=1.12},{H=2.04},{J=1.23},{K=0.05},{L=0.48},{M=0.09},{N=0.44},{P=0.17},{SCREW=#8-32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Grease Name | Unirex N2 |
| Maximum Speed | 7500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 0.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
