128854 - Dodge - F4B-DLM-208
Regular price
$398.74 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

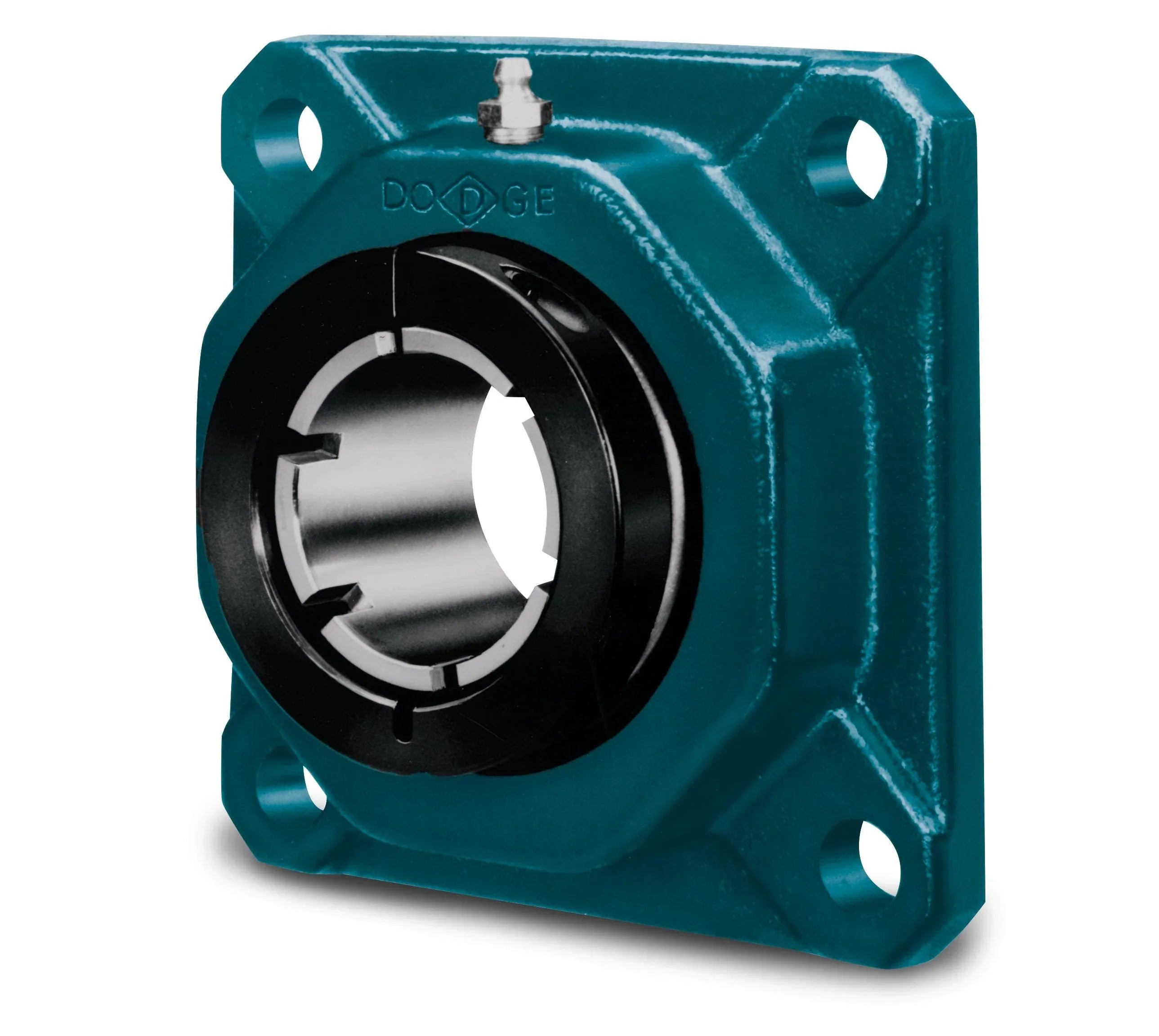

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
128854 - Dodge - F4B-DLM-208
F4B-DLM-208
Technical Specifications
| Ball Bearing Series | 214 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.8800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.8800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.6000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/inch/f4b_dlm_flange_asmtab_i.prj&varset={SERIES=214},{SS=2-1/2},{PN=128854},{DESCRIPTION=F4B-DLM-208},{W=14.6},{A=2.6},{B=7.38},{C=2.85},{D=5.88},{F=5/8},{H=0.69},{J=0.66},{L=4.38},{N=3.69}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 13995 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 2.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 9838 |
| Static Load Capacity (Unit) | POUND_FORCE |
