128841 - Dodge - F2B-DLM-115
Regular price
$240.08 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

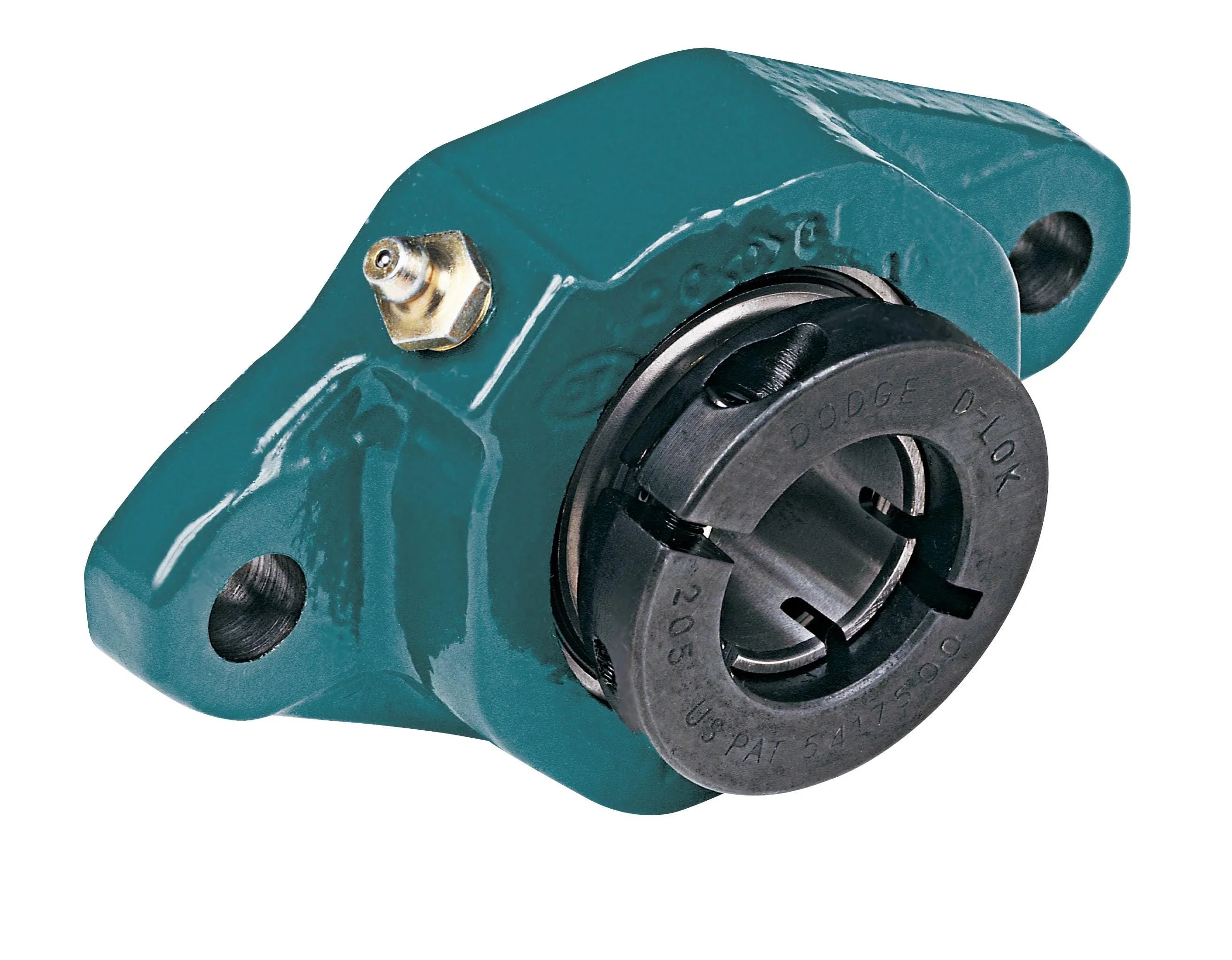

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
128841 - Dodge - F2B-DLM-115
F2B-DLM-115
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bore Length | 2.5900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/inch/p2b_dlm_flange_asmtab_i.prj&varset={SERIES=211},{SS=1-15/16},{PN=128841},{DESCRIPTION=F2B-DLM-115},{W=9.2},{A=2.25},{B=8.63},{C=2.3},{D=7.25},{F=5/8},{H=0.67},{J=0.71},{L=3.69},{M=5.25},{N=2.27},{CS=5630},{CD=9975},{BN=10},{BD=9/16},{PDI=3.0920},{IC=9-17},{SC=5/16-24},{TC=400},{MH=C.I.},{IR=4118},{OR=52100},{R=NYLON 6-6},{MB=52100},{SM=�2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
