128838 - Dodge - F2B-DLM-108
Regular price
$177.84 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

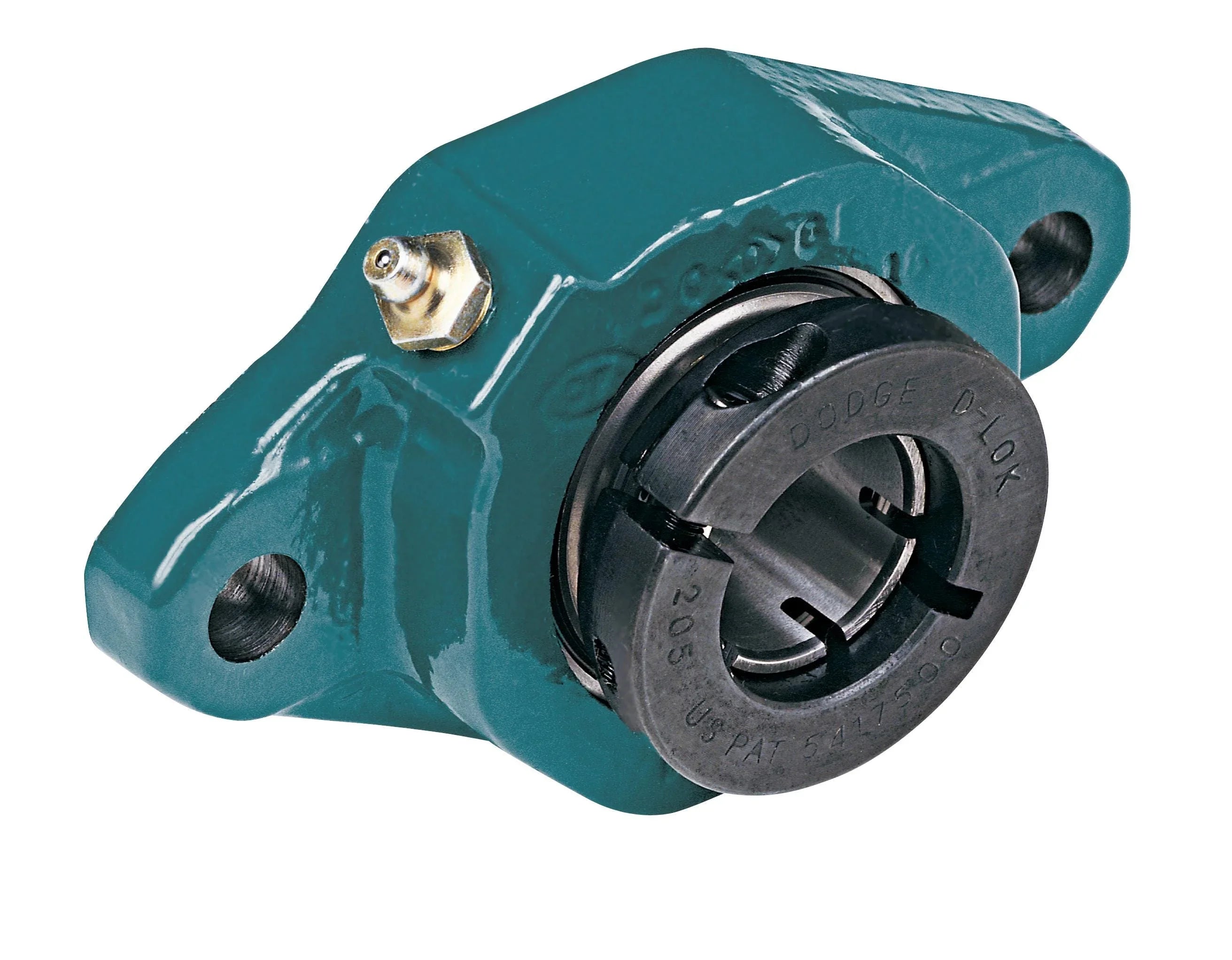

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
128838 - Dodge - F2B-DLM-108
F2B-DLM-108
Technical Specifications
| Ball Bearing Series | 209 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.8400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bore Length | 2.0100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/inch/p2b_dlm_flange_asmtab_i.prj&varset={SERIES=209},{SS=1-1/2},{PN=128838},{DESCRIPTION=F2B-DLM-108},{W=5.6},{A=2.01},{B=7.06},{C=2.06},{D=5.84},{F=1/2},{H=0.63},{J=0.66},{L=2.99},{M=4.38},{N=1.91},{CS=4450},{CD=7891},{BN=9},{BD=.520},{PDI=2.5591},{IC=7-14},{SC=1/4-28},{TC=180},{MH=C.I.},{IR=4118},{OR=52100},{R=NYLON 6-6},{MB=52100},{SM=�2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
