128182 - Dodge - F4B-SL-200L
Regular price
$100.59 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

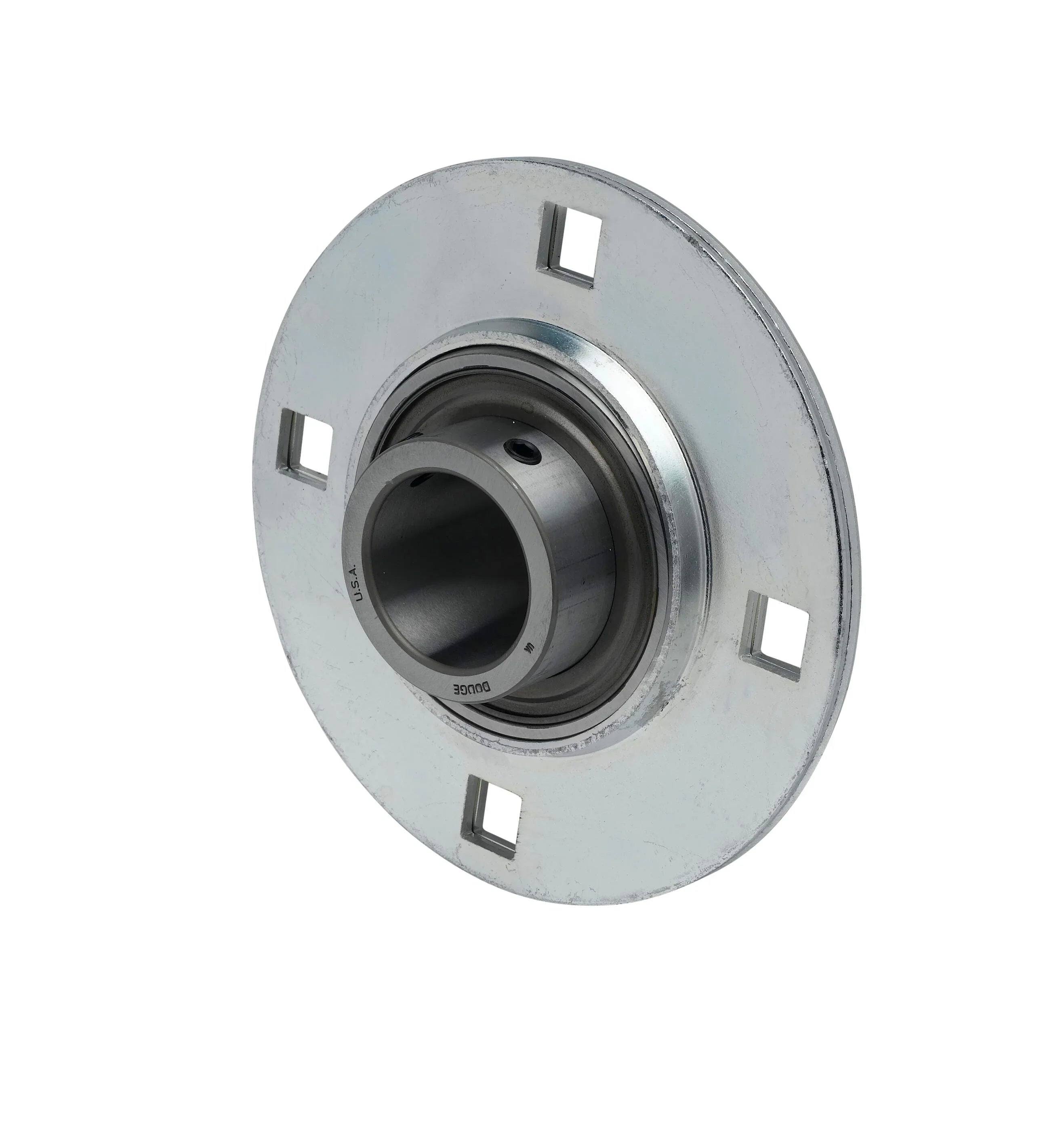

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
128182 - Dodge - F4B-SL-200L
F4B-SL-200L
Technical Specifications
| Ball Bearing Series | 203 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5313 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.4400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.4400 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.2200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/light_duty/f4b_sl_hi_asmtab.prj&varset={SERIES=211},{SS=2},{PN=128182},{DESCRIPTION=F4B-SL-200L},{WEIGHT=3.73},{A=2.22},{B=6.56},{D=5.44},{E=0.47},{G=0.53},{J=4.44},{L=2.71},{R=0.87},{S=1.35},{T=0.15}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Stamped Steel |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
