128141 - Dodge - F2B-SLX-102
Regular price
$54.54 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

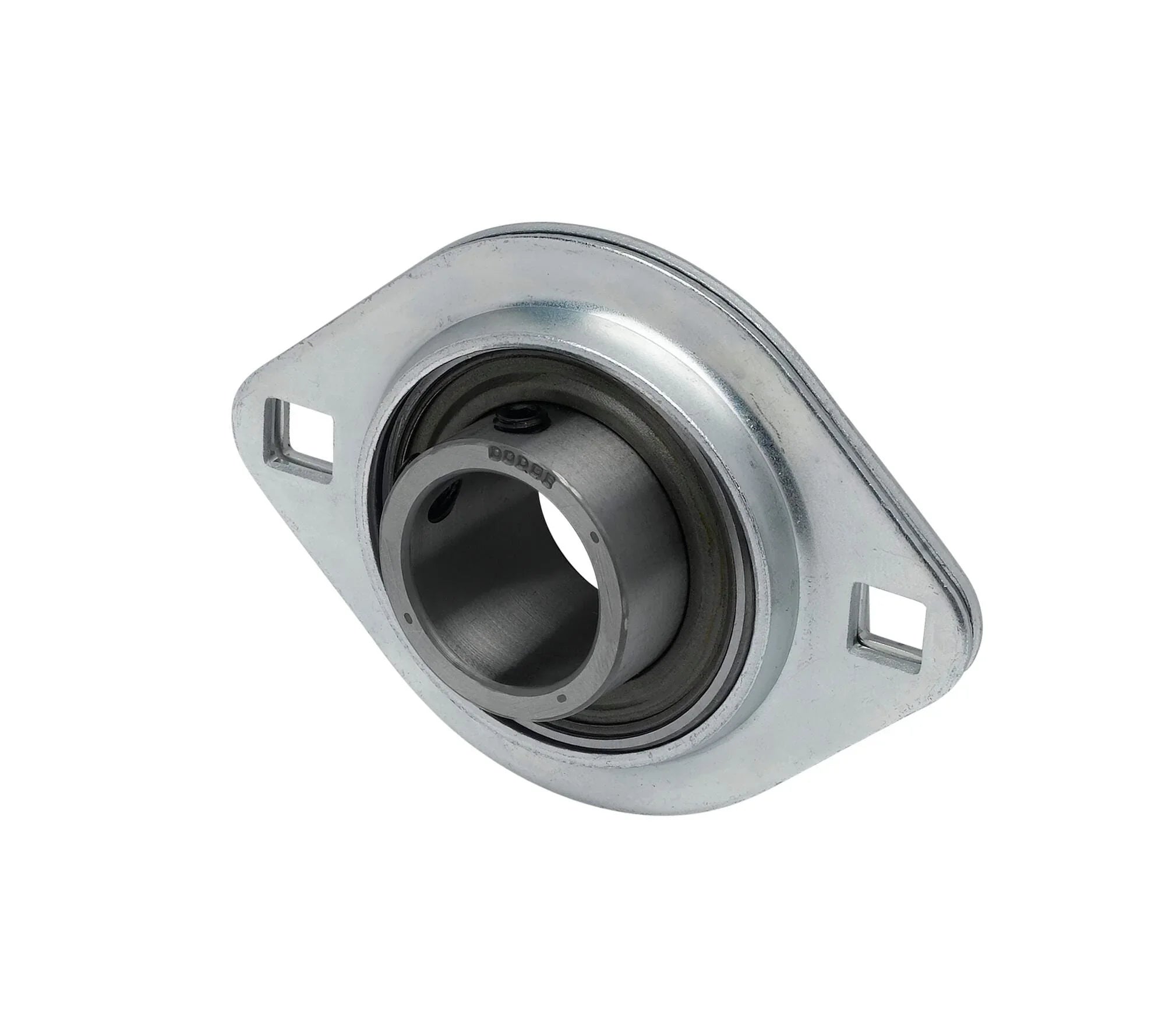

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
128141 - Dodge - F2B-SLX-102
F2B-SLX-102
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.4063 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/4_bolt_flange/f2b_slx_hi_asmtab.prj&varset={SERIES=206},{SS=1-1/8},{PN=128141},{DESCRIPTION=F2B-SLX-102},{W=1.14},{A=1.41},{B=4.44},{C=3.31},{D=3.56},{E=0.34},{G=0.41},{J=2.81},{L=1.75},{R=0.35},{S=1.05},{T=0.10}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Stamped Steel |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 1.1250 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
F2B-SLX-102
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.4063 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/4_bolt_flange/f2b_slx_hi_asmtab.prj&varset={SERIES=206},{SS=1-1/8},{PN=128141},{DESCRIPTION=F2B-SLX-102},{W=1.14},{A=1.41},{B=4.44},{C=3.31},{D=3.56},{E=0.34},{G=0.41},{J=2.81},{L=1.75},{R=0.35},{S=1.05},{T=0.10}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Stamped Steel |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 1.1250 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
