127723 - Dodge - F2B-DLEZ-012-SHCR
Regular price
$207.84 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

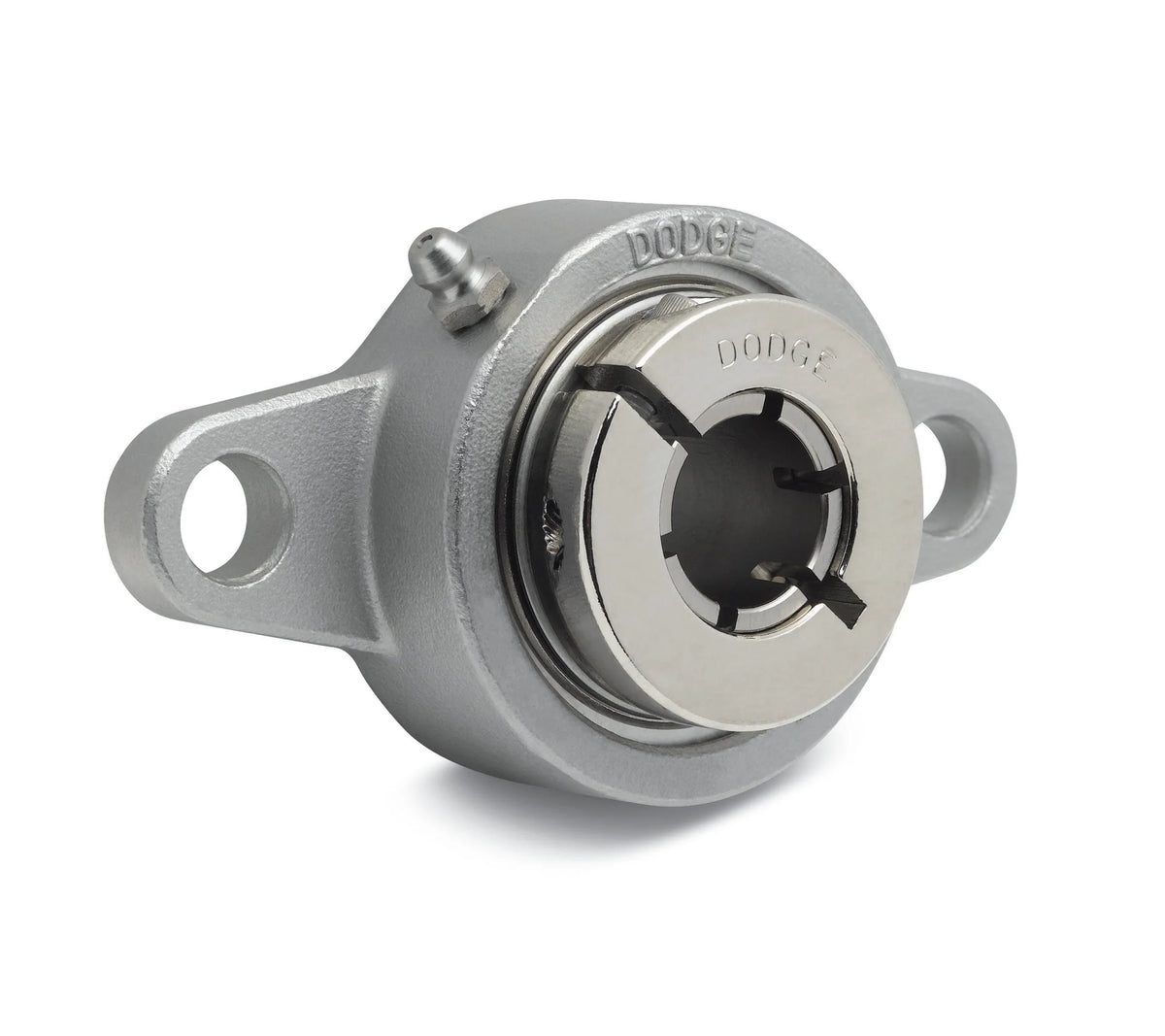

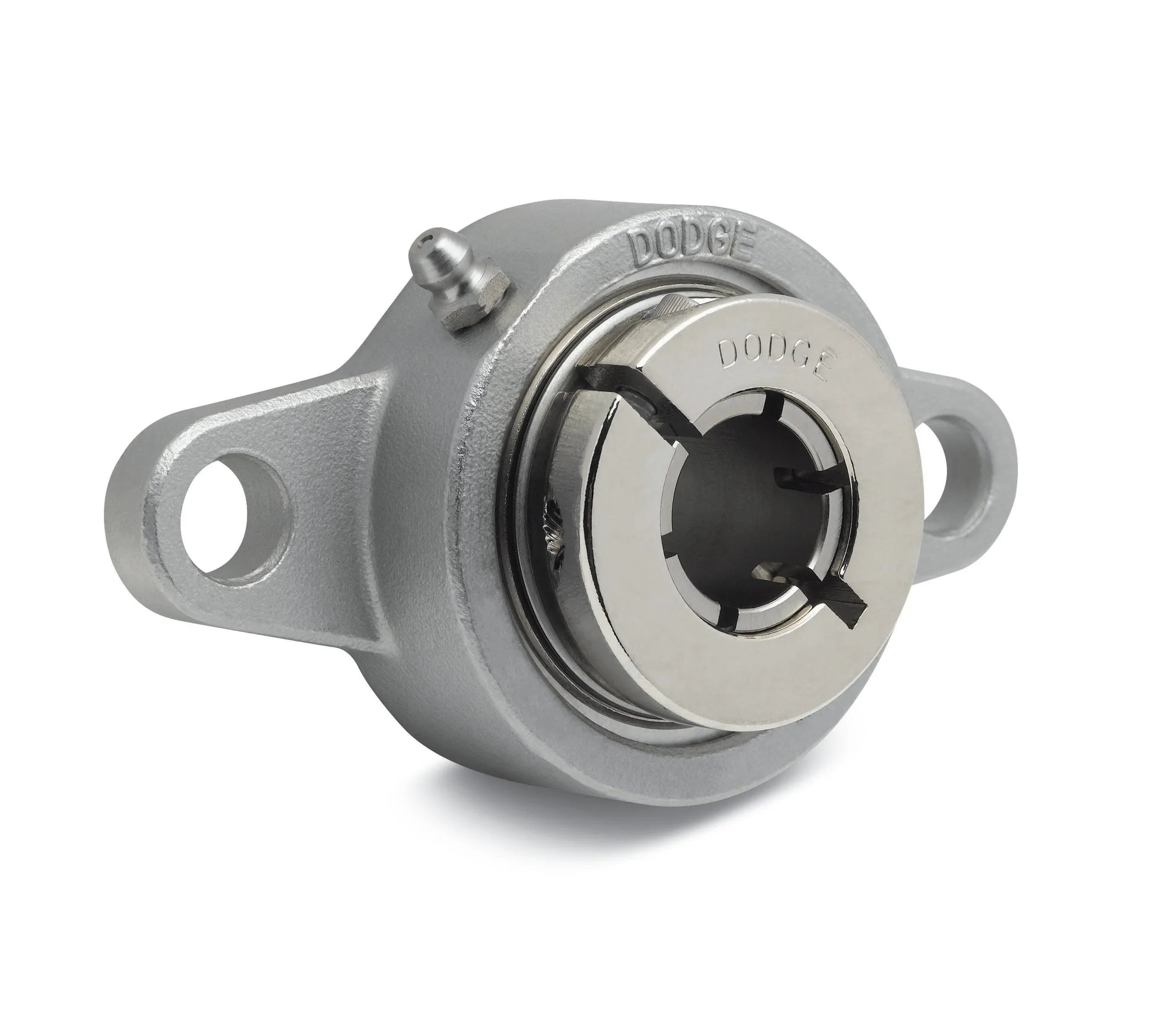

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
127723 - Dodge - F2B-DLEZ-012-SHCR
F2B-DLEZ-012-SHCR
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5400 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/f2b_ez_shcr_asmtab_i.prj&varset={SERIES=204},{SS=3/4},{PN=127723},{DESCRIPTION=F2B-DLEZ-012-SHCR},{W=1.10},{A=1.28},{B=4.38},{C=1.30},{D=3.54},{F=3/8},{H=0.32},{J=0.41},{L=1.71},{M=2.38},{CAPS=1390},{CAPD=2899}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Flange |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 0.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
