127653 - Dodge - WSTU-DLEZ-025M-PCR
Regular price
$233.35 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

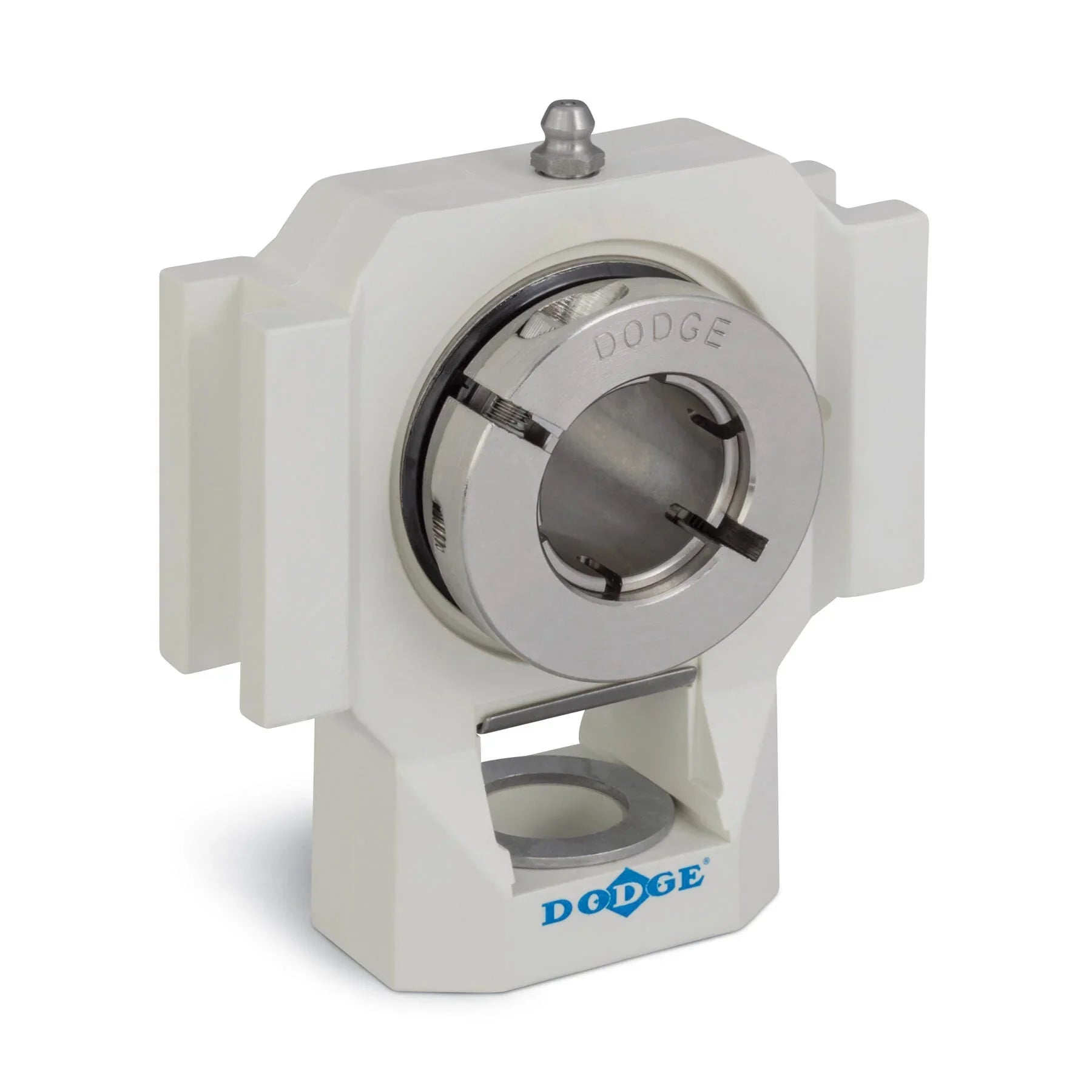

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
127653 - Dodge - WSTU-DLEZ-025M-PCR
WSTU-DLEZ-025M-PCR
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Type | Ball |
| Bore Length | 1.4400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/wstu_dlez_wide_asmtab_m.prj&varset={SERIES=205},{SS=25},{PN=127653},{DESCRIPTION=WSTU-DLEZ-25M-PCR},{W=0.34},{FS=WS300},{A=36.6},{B=100.8},{C=13.46},{D=55.9},{E=65.0},{F=15.9},{G=14.2},{H=16.5},{J=53.8},{K=18.0},{L=50.5},{M=76.96/76.20},{N=92.2},{R=14.2},{S=22.4},{T=35.1}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 25.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-300 |
