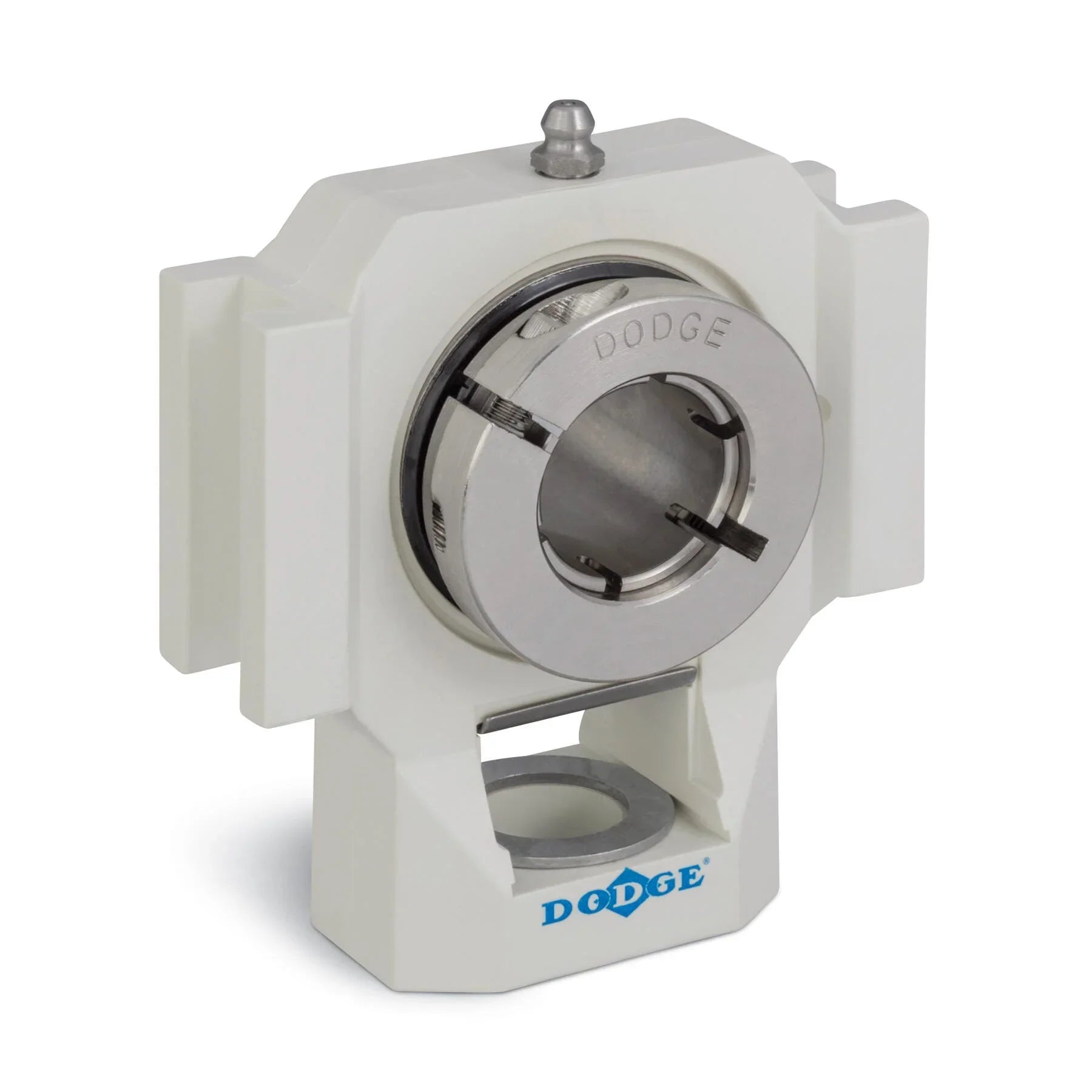

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
127621 - Dodge - WSTU-DLEZ-104-PCR
WSTU-DLEZ-104-PCR
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bore Length | 1.7500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/wstu_dlez_wide_asmtab_i.prj&varset={SERIES=207},{SS=1-1/4},{PN=127621},{DESCRIPTION=WSTU-DLEZ-104-PCR},{W=1.58},{FS=WS308},{A=1.75},{B=4.99},{C=0.53},{D=2.25},{E=3.10},{F=3/4},{G=0.56},{H=0.65},{J=2.41},{K=0.81},{L=2.69},{M=3.540/3.510},{N=4.20},{R=0.67},{S=1.08},{T=1.62}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 1.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-308 |
