127618 - Dodge - WSTU-DLEZ-100-PCR
Regular price
$233.35 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

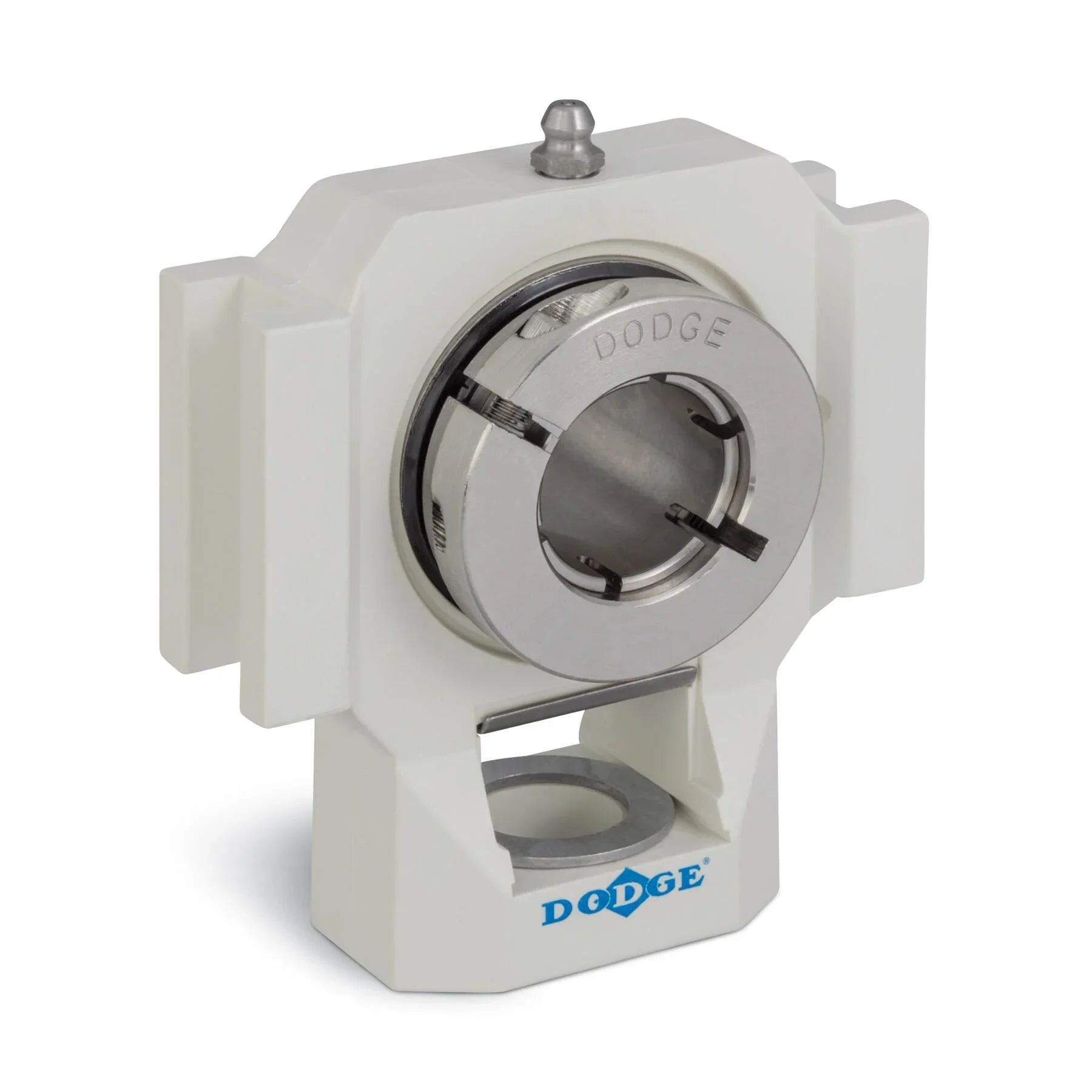

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
127618 - Dodge - WSTU-DLEZ-100-PCR
WSTU-DLEZ-100-PCR
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Type | Ball |
| Bore Length | 1.4400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/wstu_dlez_wide_asmtab_i.prj&varset={SERIES=205},{SS=1},{PN=127618},{DESCRIPTION=WSTU-DLEZ-100-PCR},{W=0.72},{FS=WS300},{A=1.44},{B=3.97},{C=0.53},{D=2.20},{E=2.56},{F=5/8},{G=0.56},{H=0.65},{J=2.12},{K=0.71},{L=1.99},{M=3.030/3.000},{N=3.63},{R=0.56},{S=0.88},{T=1.38}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-300 |
