127570 - Dodge - FB-SCEZ-20M-PCR
Regular price
$161.92 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

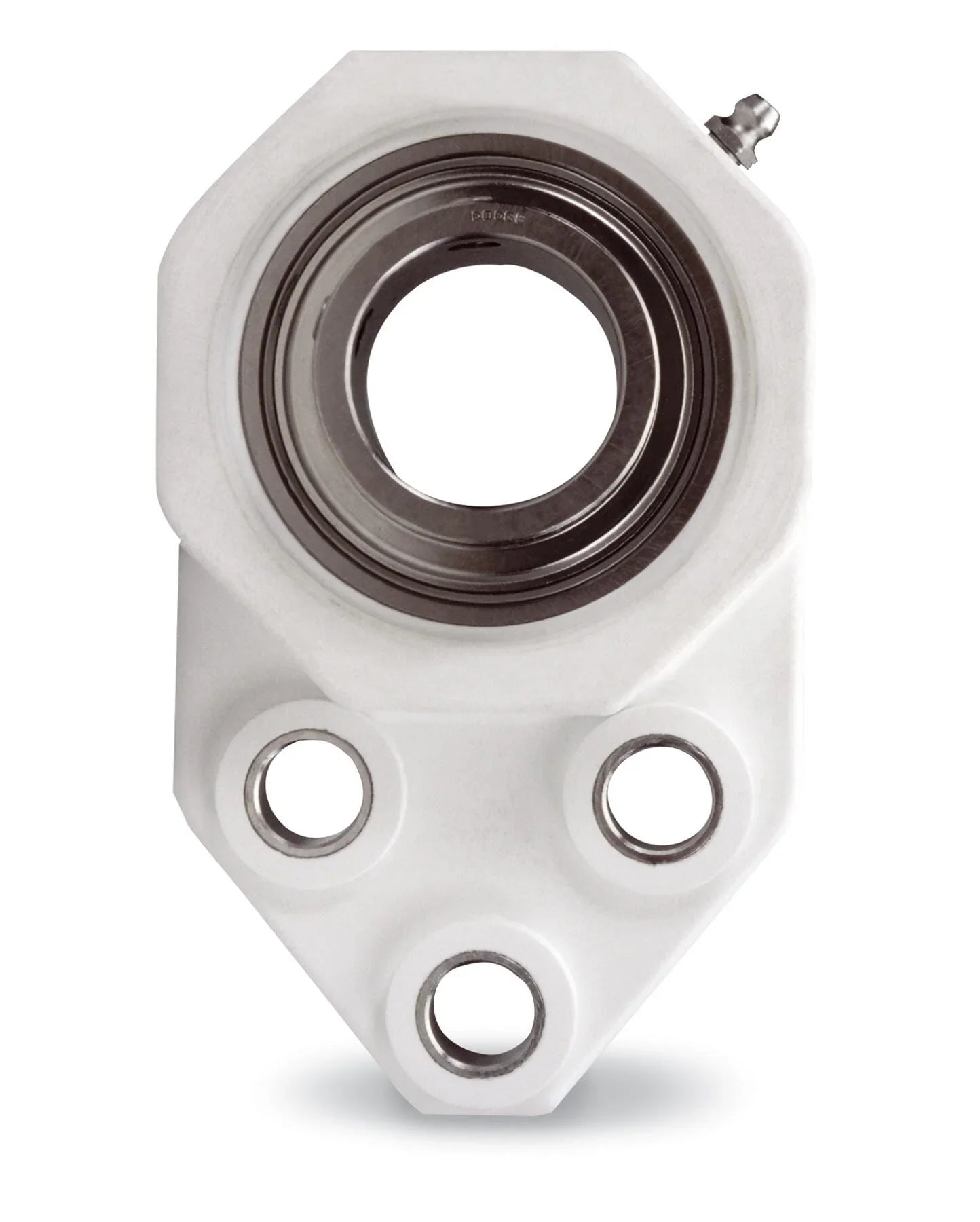

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
FB-SCEZ-20M-PCR
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 204 Series |
| Bearing Type | Ball |
| Bolt Diameter | 9.525 mm |
| Bolt to Bolt (Max) | 38.1 mm |
| Bolt to Bolt (Min) | 38.1 mm |
| Bore Length | 31.242 mm |
| Dynamic Load Capacity | 12895 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Flanged Bracket |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 20 mm |
| Standoff Housing | No |
| Static Load Capacity | 6592 lbf |
| Suitable for High Temperature | No |
| Suitable For Washdown | Yes |
