126842 - Dodge - P2B-SCMAH-211
Regular price
$447.98 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

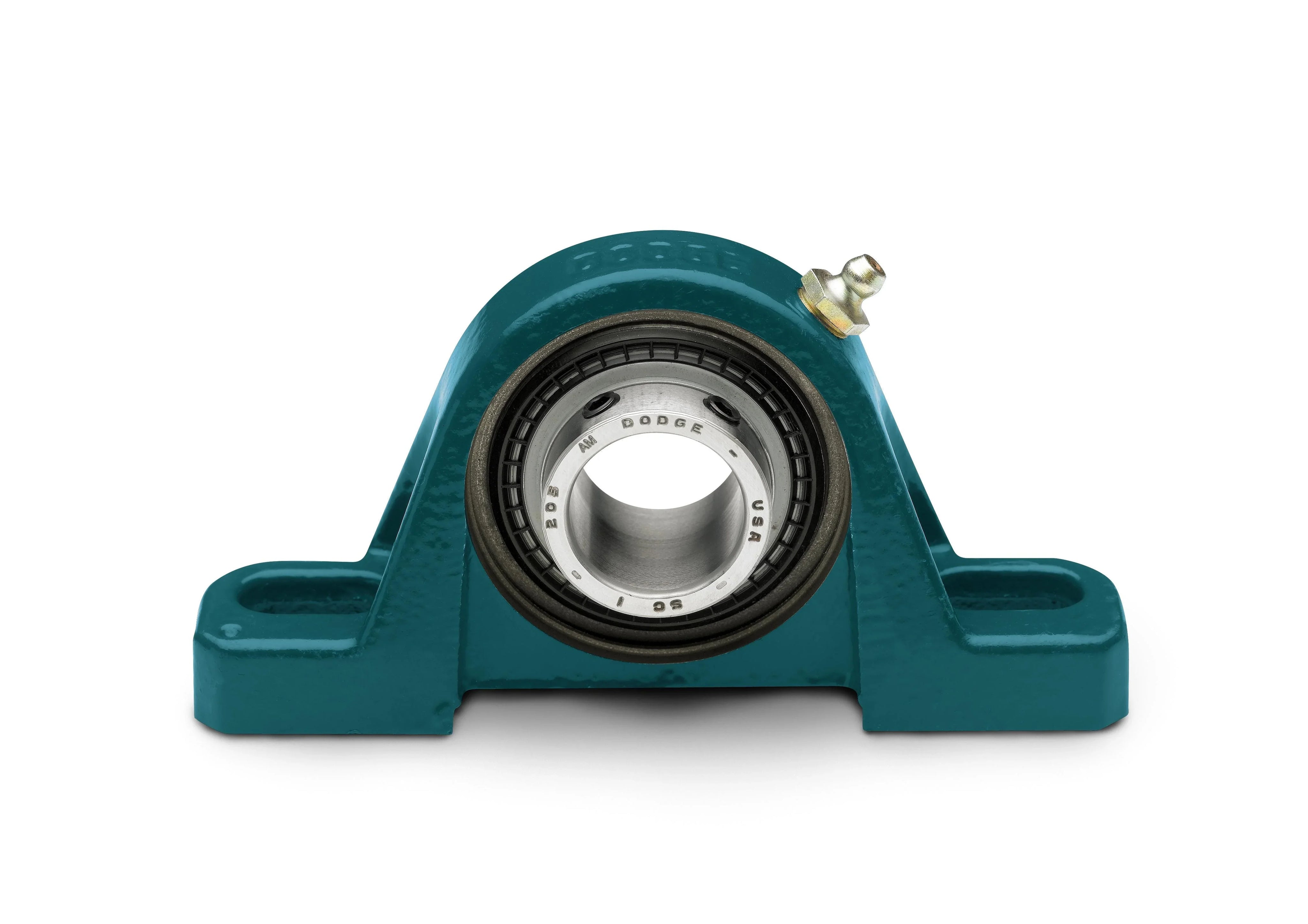

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
126842 - Dodge - P2B-SCMAH-211
P2B-SCMAH-211
Technical Specifications
| Ball Bearing Series | 215 Series |
| Base to Center Height | 3.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 9.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.6200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/pillow_blocks/p2b_scmah_hi_asmtab.prj&varset={SERIES=215},{SS=2-11/16},{PN=126842},{DESCRIPTION=P2B-SCMAH-211},{WEIGHT=21.0},{A=2.33},{B=11.75},{C=2.88},{DMIN=8.50},{DMAX=9.50},{F=7/8},{G=1.44},{H=1.00},{J=6.75},{L=3.62},{M=3.50},{R=0.86},{S=1.47},{U=5.48},{V=10.96},{W=1.04},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 14872 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1750 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 11108 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-50,TS-350 |
