126650 - Dodge - F2BZ-DL-40M
Regular price
$182.52 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

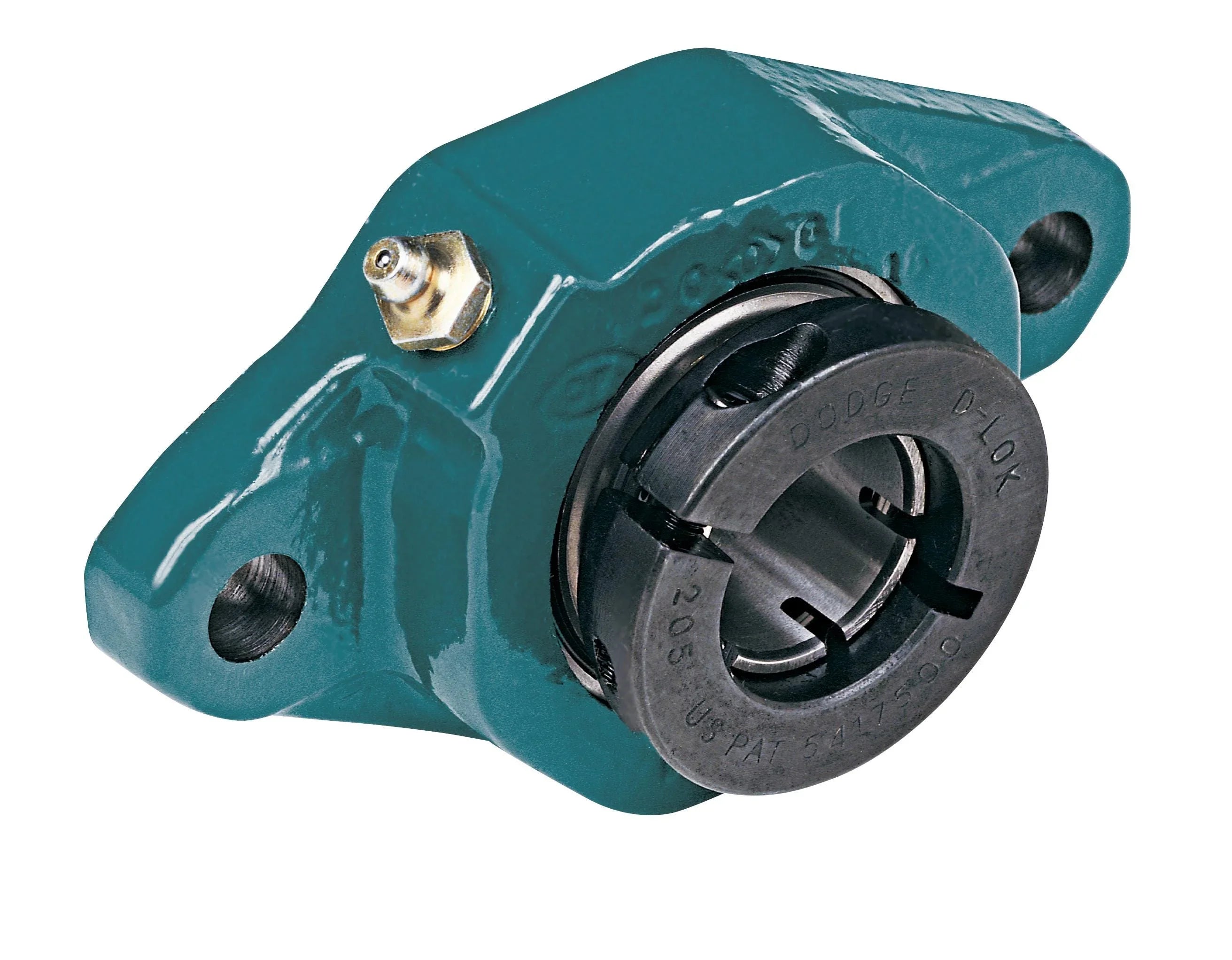

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
126650 - Dodge - F2BZ-DL-40M
F2BZ-DL-40M
Technical Specifications
| Ball Bearing Series | 208 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.6600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.6600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.0100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/metric/f2bz_iso_bolt_asmtab_m.prj&varset={RS=208},{SS=40},{PN=126650},{DESCRIPTION=F2BZ-DL-40M},{W=2.2},{A=51.1},{B=171.5},{C=55.9},{D=143.8},{E=4.1},{F=M12},{H=14.2},{J=17.8},{K=100.00/99.95},{L=89.6},{M=104.8},{N=46.5},{CAPS=4005},{CAPD=7332},{P=4.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange with Pilot |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.1600 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 3.9370 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
