126648 - Dodge - F2BZ-DL-30M
Regular price
$143.21 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

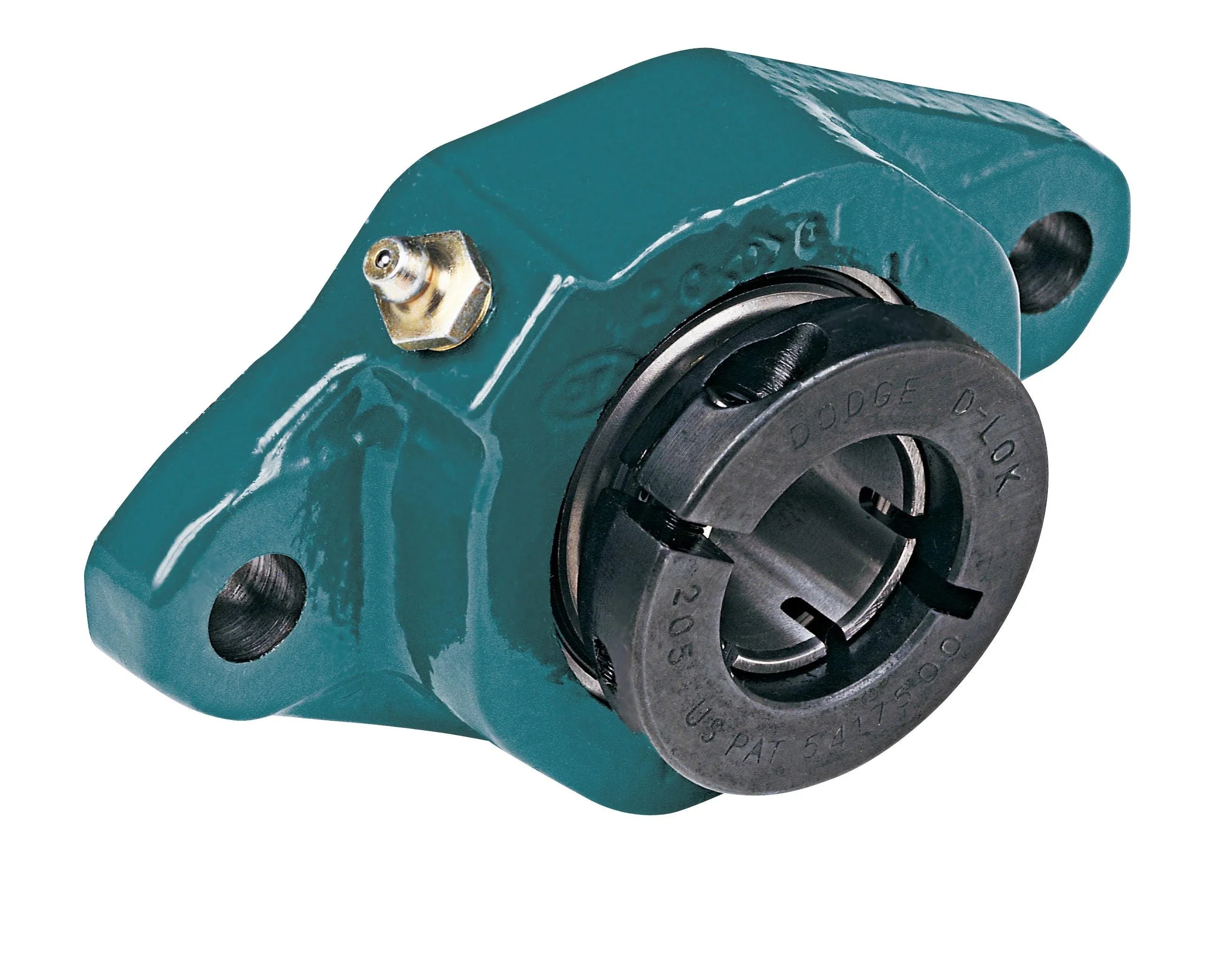

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
126648 - Dodge - F2BZ-DL-30M
F2BZ-DL-30M
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.5900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.5900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/metric/f2bz_iso_bolt_asmtab_m.prj&varset={RS=206},{SS=30},{PN=126648},{DESCRIPTION=F2BZ-DL-30M},{W=1.1},{A=39.6},{B=141.2},{C=43.7},{D=116.6},{E=3.0},{F=M10},{H=12.7},{J=13.5},{K=80.10/79.96},{L=56.4},{M=82.6},{N=39.6},{CAPS=2250},{CAPD=4368},{P=3.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange with Pilot |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5500 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.1200 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 3.1500 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
