126504 - Dodge - P2B-SC-101 MOD
Regular price
$97.15 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

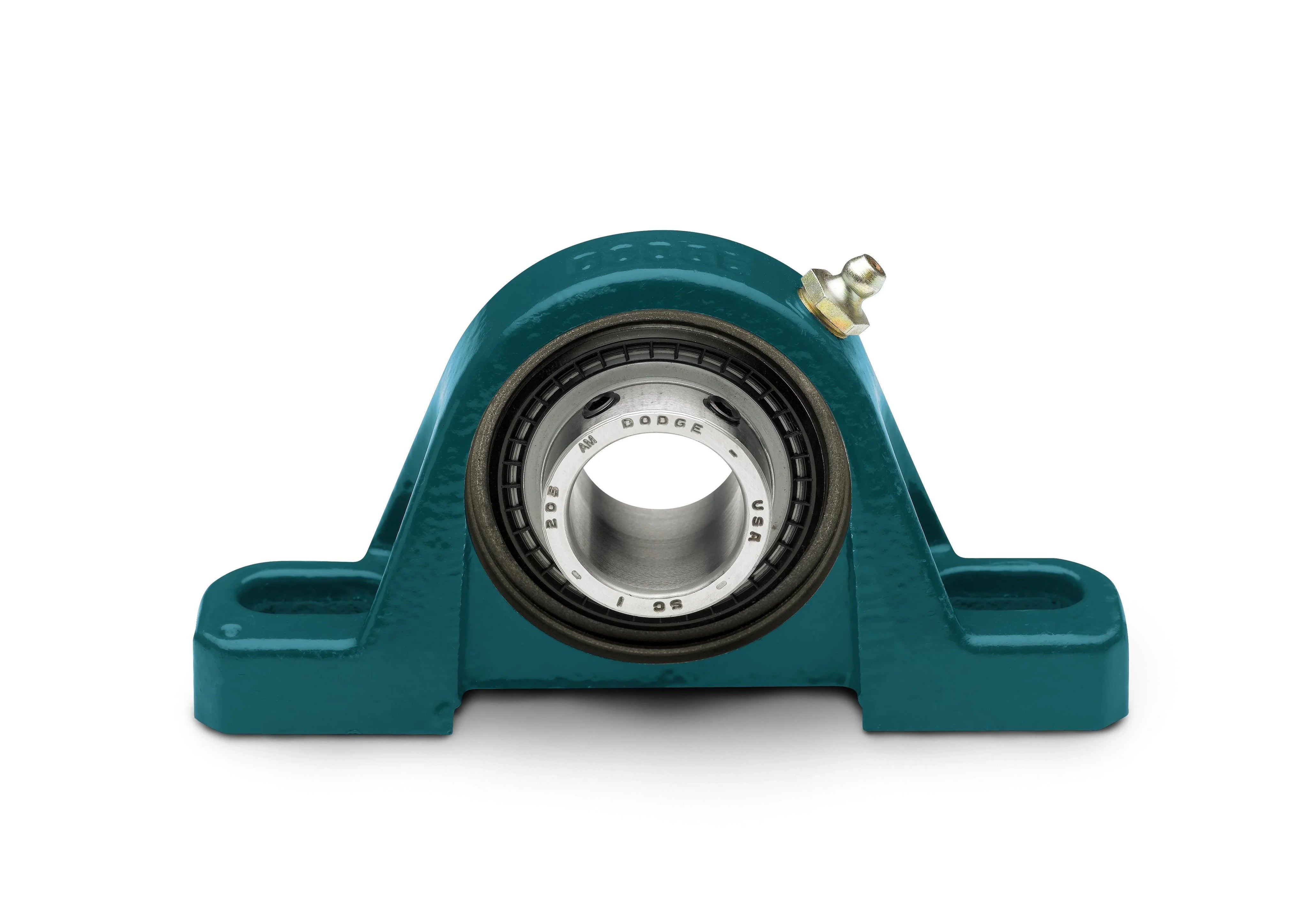

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
126504 - Dodge - P2B-SC-101 MOD
P2B-SC-101 MOD
Technical Specifications
| Ball Bearing Series | 206 Series |
| Base to Center Height | 1.6300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/pillow_blocks/p2b_sc_hi_asmtab.prj&varset={SERIES=206},{SS=1-1/16},{PN=126504},{DESCRIPTION=P2B-SC-101-NL},{WEIGHT=2.8},{LF=NO-LUBE},{A=1.52},{B=6.25},{C=1.75},{DMIN=4.25},{DMAX=5.00},{F=1/2},{G=0.94},{H=0.68},{J=3.25},{L=1.57},{M=1.63},{R=0.58},{S=0.94},{U=2.88},{V=5.76},{W=0.56},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.0625 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
