126418 - Dodge - P2B-SXRH-203-E
Regular price
$392.18 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

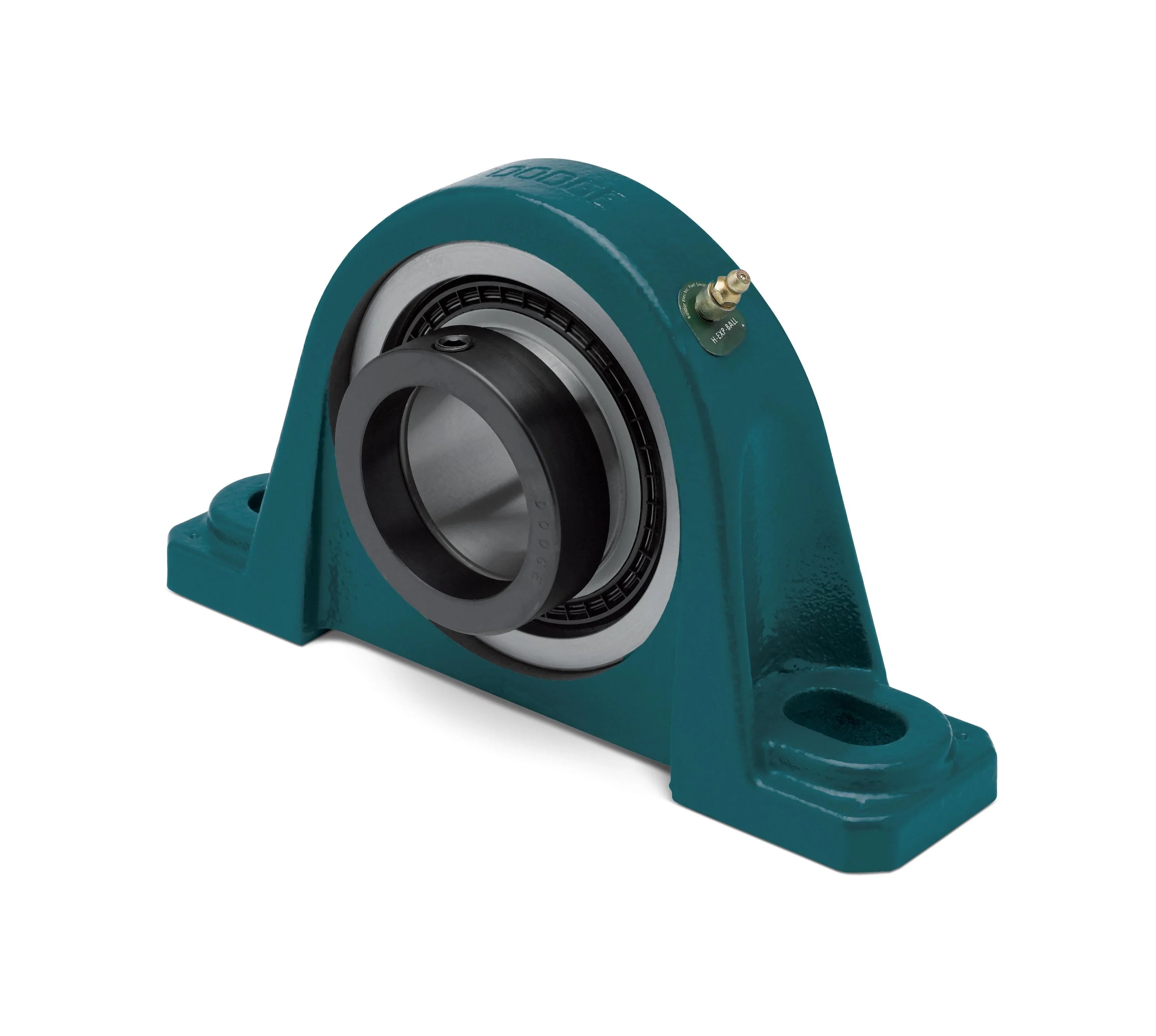

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
126418 - Dodge - P2B-SXRH-203-E
P2B-SXRH-203-E
Technical Specifications
| Ball Bearing Series | 211 Series |
| Base to Center Height | 2.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.9400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.8800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.5900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/pillow_block/p2b_sxrh_e_hi_asmtab.prj&varset={SERIES=211},{SS=2-3/16},{PN=126418},{DESCRIPTION=P2B-SXRH-203-E},{A=2.59},{B=9.50},{C=2.37},{DMIN=6.88},{DMAX=7.94},{F=5/8},{G=1.21},{H=0.88},{J=5.40},{L=3.00},{M=2.75},{R=0.88},{S=1.71},{T=0.22},{U=4.25},{V=8.50},{W=0.88},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
