126416 - Dodge - P2B-SXRH-107-E
Regular price
$233.66 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

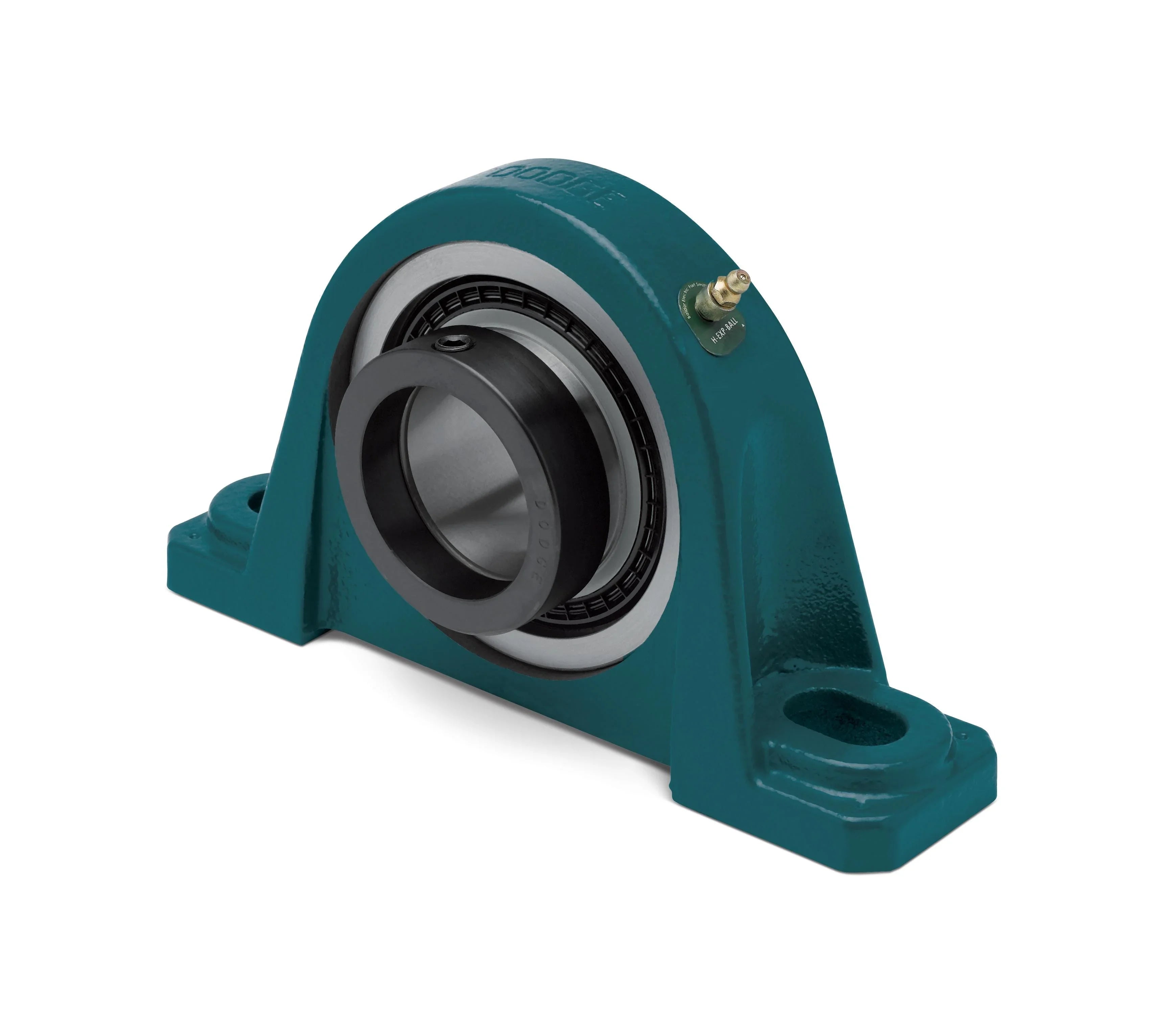

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
126416 - Dodge - P2B-SXRH-107-E
P2B-SXRH-107-E
Technical Specifications
| Ball Bearing Series | 207 Series |
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.8800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.1800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/pillow_block/p2b_sxrh_e_hi_asmtab.prj&varset={SERIES=207},{SS=1-7/16},{PN=126416},{DESCRIPTION=P2B-SXRH-107-E},{A=1.95},{B=7.25},{C=1.93},{DMIN=5.18},{DMAX=5.88},{F=1/2},{G=0.91},{H=0.93},{J=4.19},{L=2.13},{M=2.13},{R=0.67},{S=1.28},{T=0.16},{U=3.26},{V=6.52},{W=0.69},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
