126199 - Dodge - F4B-SCM-308
Regular price
$748.27 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

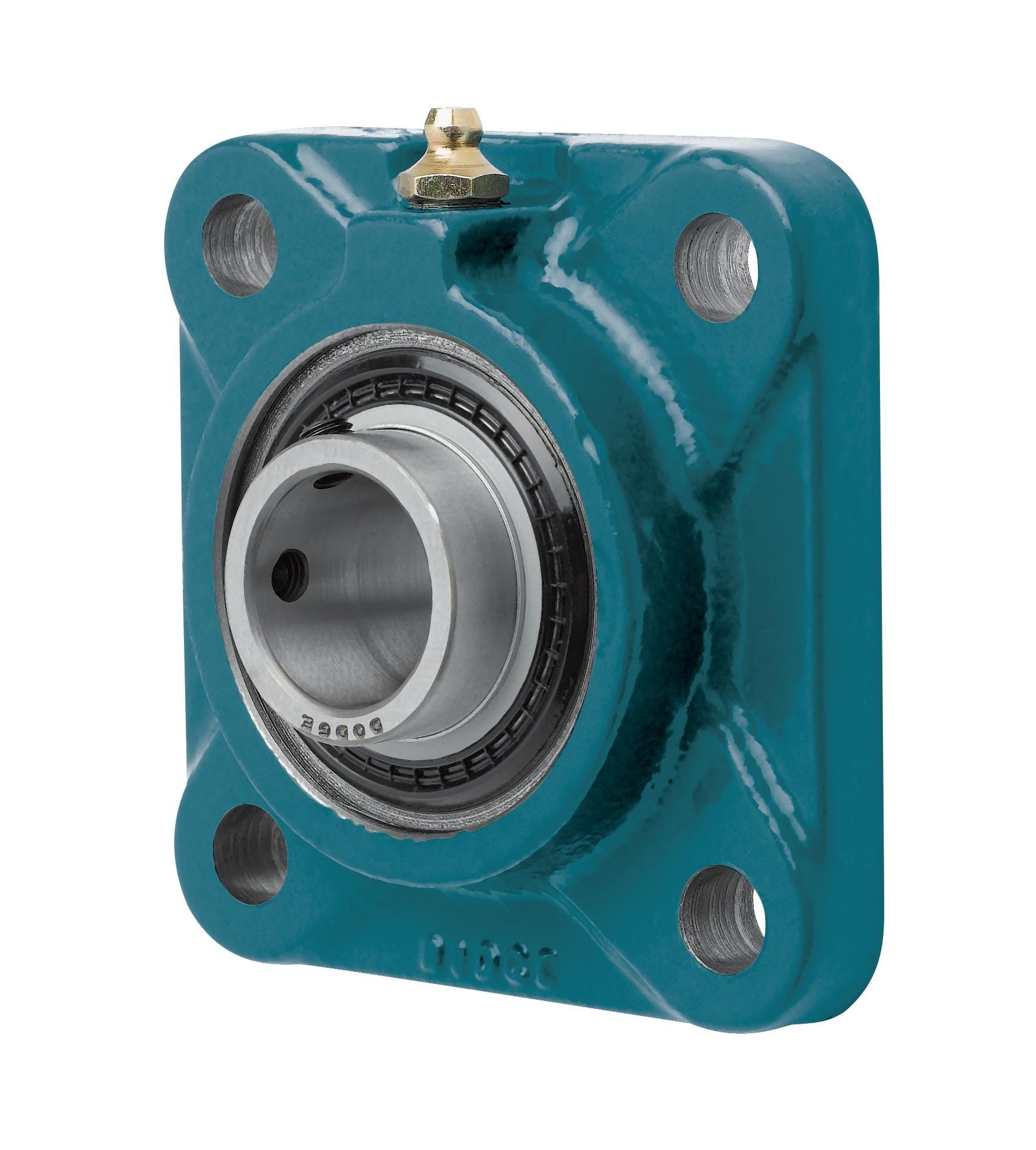

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
126199 - Dodge - F4B-SCM-308
F4B-SCM-308
Technical Specifications
| Ball Bearing Series | 218 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.7500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.5600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/4_bolt/f4b_scm_hi_asmtab.prj&varset={SERIES=218},{SS=3-1/2},{PN=126199},{DESCRIPTION=F4B-SCM-308},{WEIGHT=27.4},{A=2.56},{B=8.44},{C=3.38},{D=6.75},{F=3/4},{H=1.00},{J=0.60},{L=4.35},{N=4.63}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 21451 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 16641 |
| Static Load Capacity (Unit) | POUND_FORCE |
