125995 - Dodge - WSTU-SCM-55M
Regular price
$292.44 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

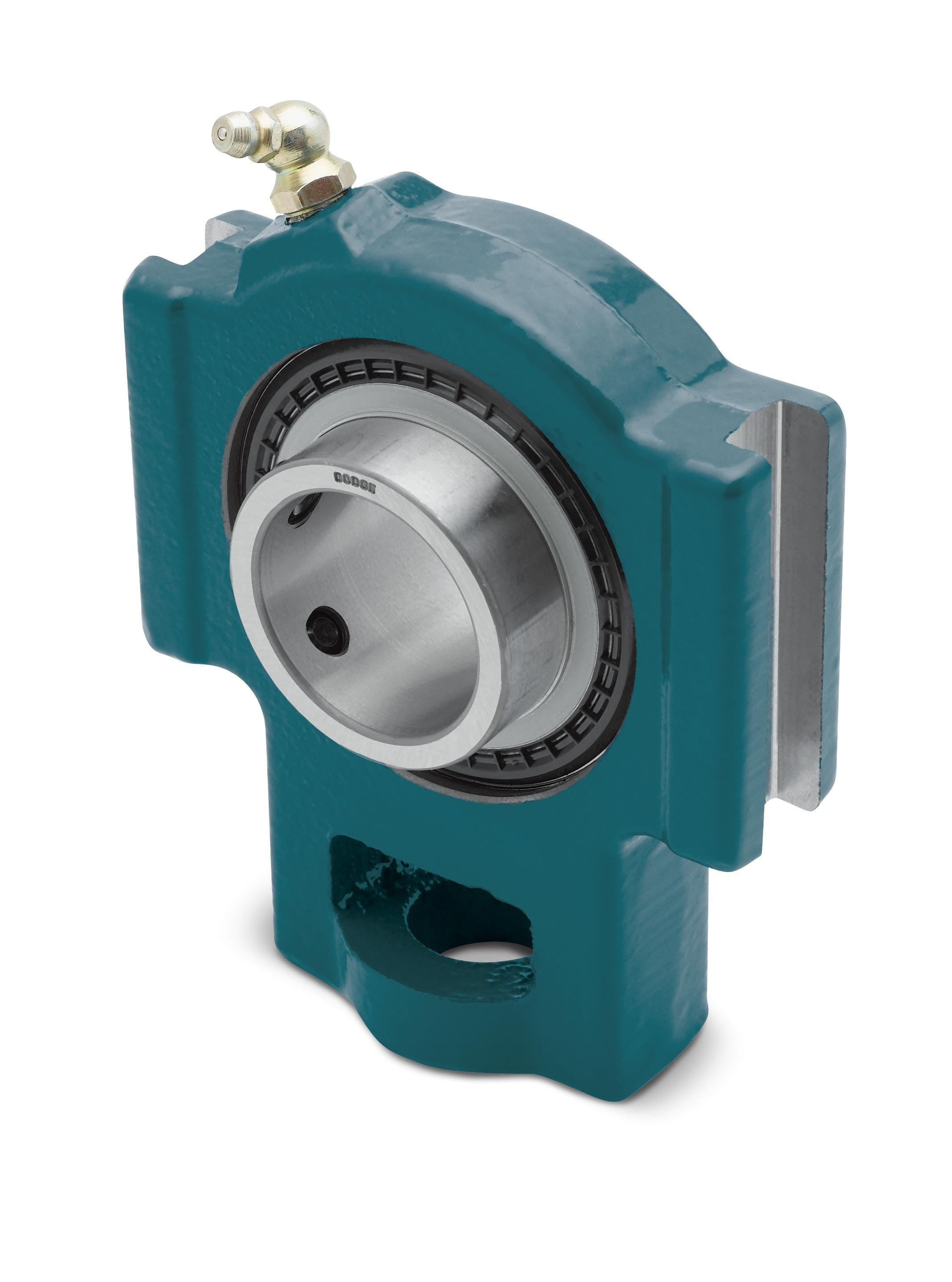

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
125995 - Dodge - WSTU-SCM-55M
WSTU-SCM-55M
Technical Specifications
| Ball Bearing Series | 212 Series |
| Bearing Type | Ball |
| Bore Length | 2.3100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/take_up/wstu_scm_hm_asmtab.prj&varset={SERIES=212},{SS=55},{PN=125995},{DESCRIPTION=WSTU-SCM-55M},{W=5.1},{FS=WS502},{A=58.7},{B=190.5},{C=27.00},{D=101.6},{E=119.1},{F=31.8},{G=19.1},{H=31.8},{J=101.6},{K=63.5},{L=75.4},{M=129.79/130.56},{N=149.4},{R=22.9},{S=35.8},{T=63.5}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11791 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 55.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 8100 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-502 |
