125986 - Dodge - NSTU-SCM-55M
Regular price
$265.45 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

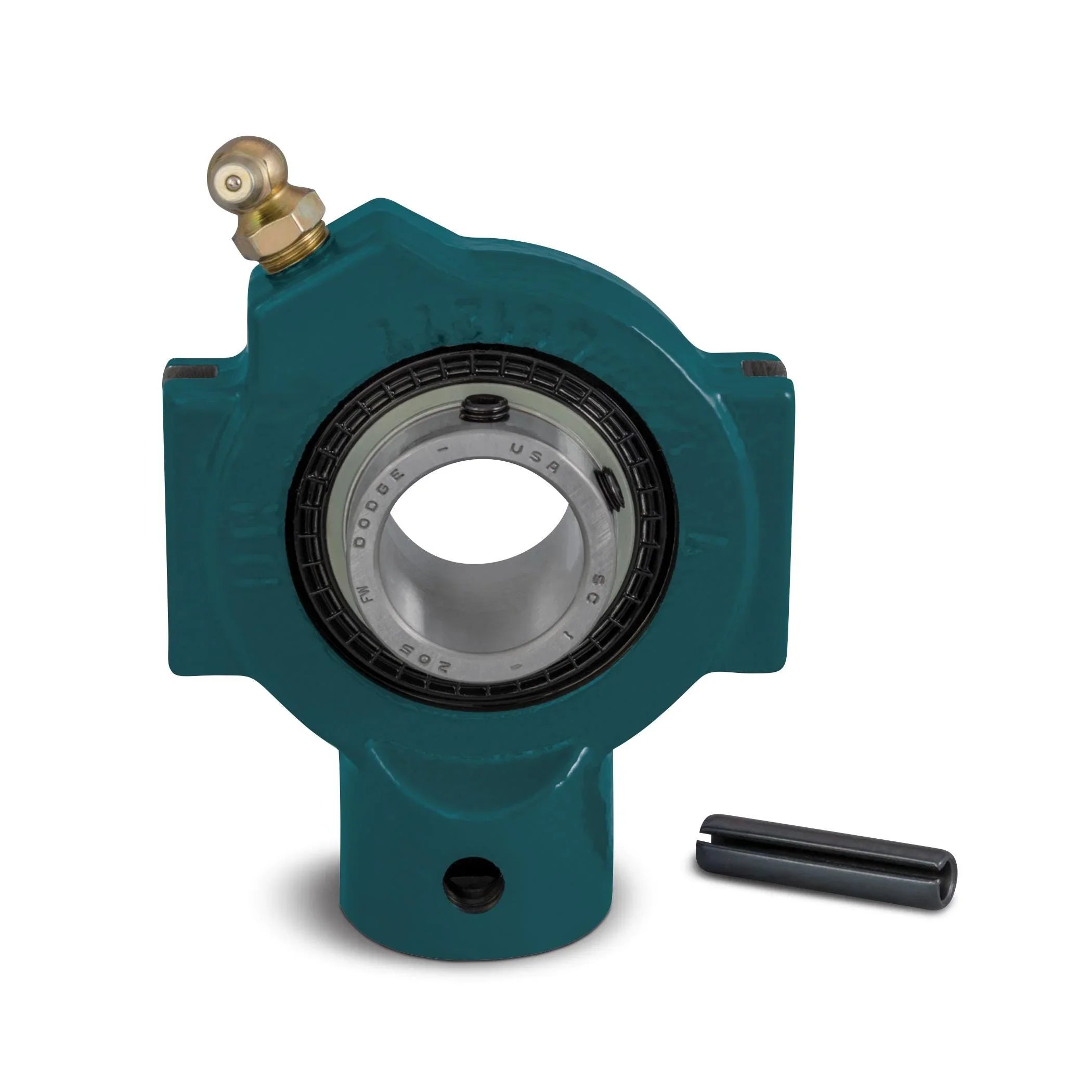

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
125986 - Dodge - NSTU-SCM-55M
NSTU-SCM-55M
Technical Specifications
| Ball Bearing Series | 212 Series |
| Bearing Type | Ball |
| Bore Length | 2.3100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/take_up/nstu_scm_hm_asmtab.prj&varset={SERIES=212},{SS=55},{PN=125986},{DESCRIPTION=NSTU-SCM-55M},{W=4.0},{FS=NS415},{A=58.7},{B=169.9},{C=7.95},{D=95.3},{E=98.6},{F=25.4},{G=17.5},{H=32.5},{J=41.4},{L=75.4},{M=125.65/124.89},{N=146.1},{P=11.2},{R=22.9},{S=35.8}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11791 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 55.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 8100 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | NS-415 |
