125983 - Dodge - NSTU-SCM-40M
Regular price
$181.06 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

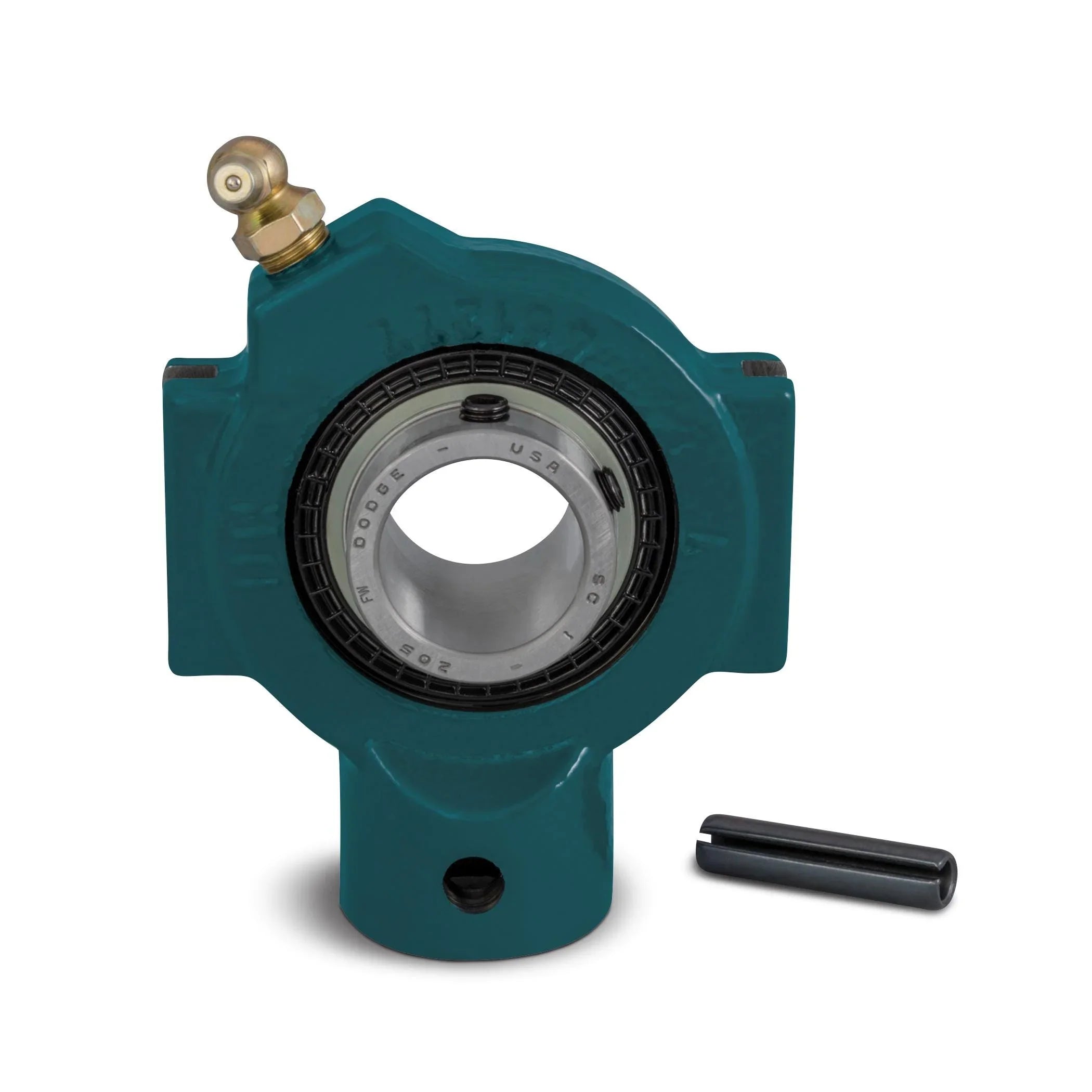

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
125983 - Dodge - NSTU-SCM-40M
NSTU-SCM-40M
Technical Specifications
| Ball Bearing Series | 209 Series |
| Bearing Type | Ball |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/take_up/nstu_scm_hm_asmtab.prj&varset={SERIES=209},{SS=40},{PN=125983},{DESCRIPTION=NSTU-SCM-40M},{W=2.3},{FS=NS400},{A=49.3},{B=138.2},{C=7.95},{D=76.2},{E=82.6},{F=22.2},{G=18.3},{H=31.0},{J=41.4},{L=56.4},{M=101.98/101.22},{N=120.7},{P=9.7},{R=19.1},{S=30.2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | NS-400 |
