125969 - Dodge - F4B-SCM-45M
Regular price
$174.68 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

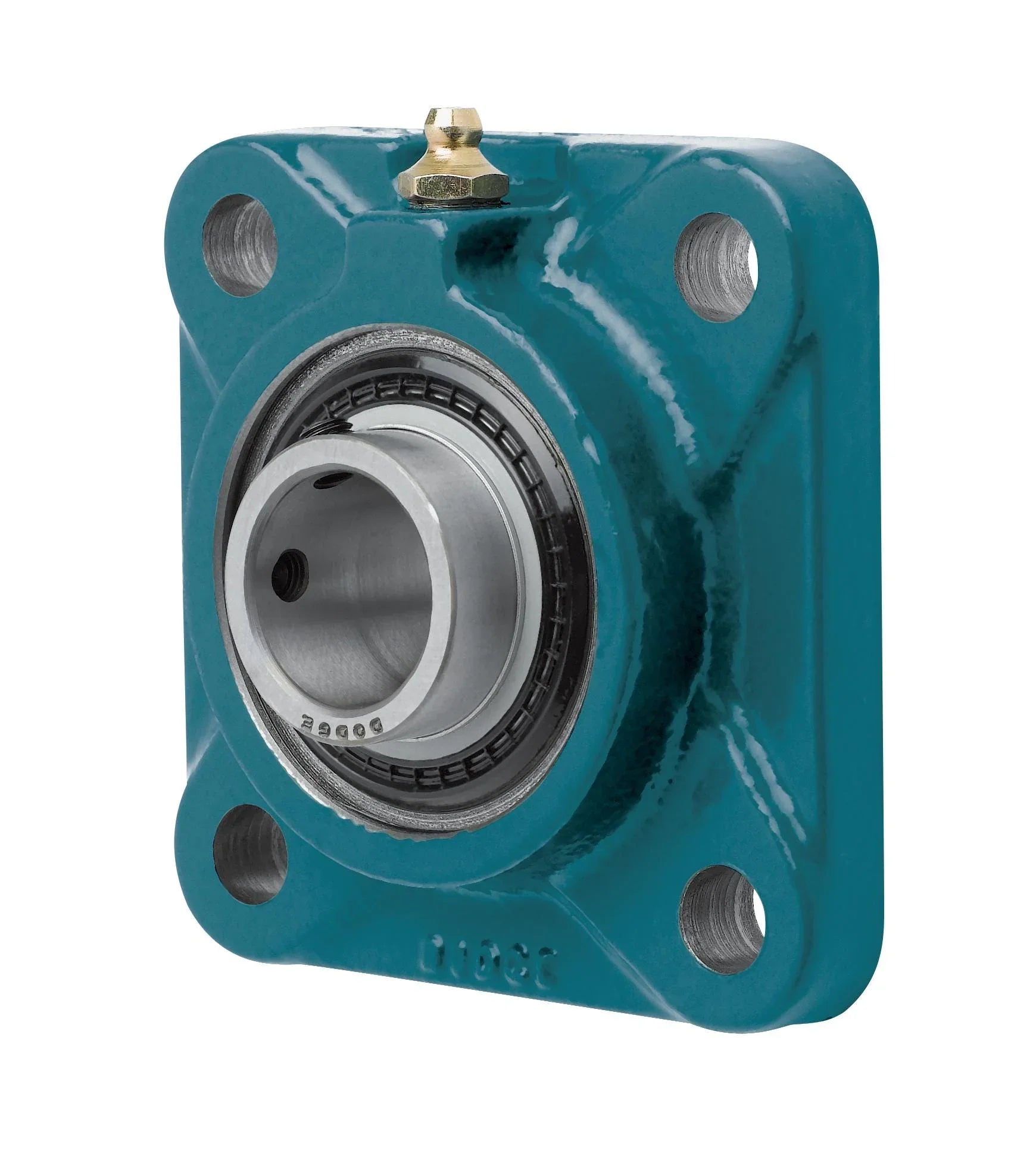

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
125969 - Dodge - F4B-SCM-45M
F4B-SCM-45M
Technical Specifications
| Ball Bearing Series | 210 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/4_bolt/f4b_scm_hm_asmtab.prj&varset={SERIES=210},{SS=45},{PN=125969},{DESCRIPTION=F4B-SC-45M},{WEIGHT=3.0},{A=49.3},{B=143.0},{C=51.3},{D=111.3},{F=M16},{F1=18.0},{H=16.0},{J=14.0},{L=61.7},{N=73.2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 45.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 5213 |
| Static Load Capacity (Unit) | POUND_FORCE |
