125911 - Dodge - WSTU-SC-25M
Regular price
$118.74 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

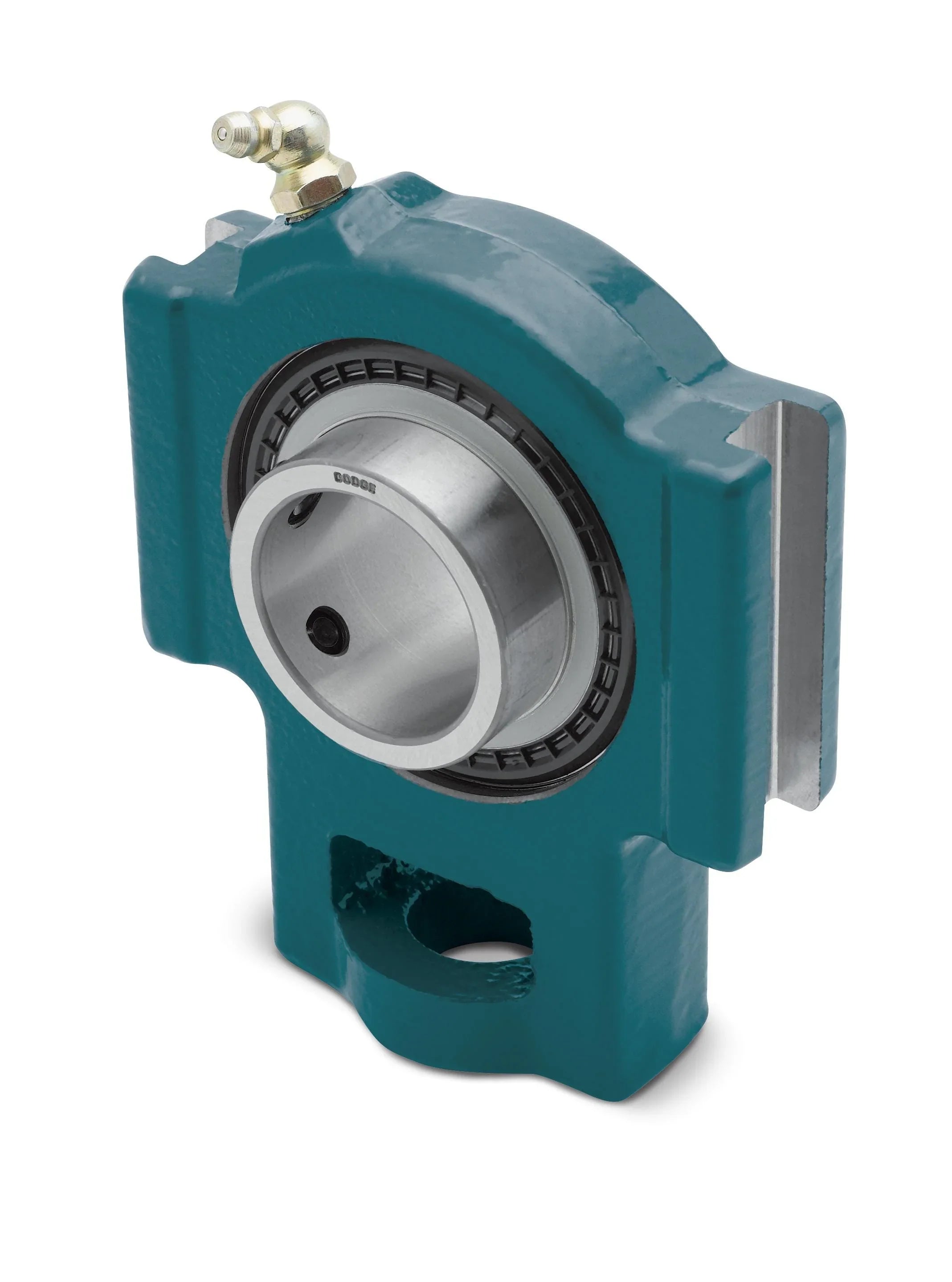

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
125911 - Dodge - WSTU-SC-25M
WSTU-SC-25M
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Type | Ball |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/take_up/wstu_sc_hm_asmtab.prj&varset={SERIES=205},{SS=25},{PN=125911},{DESCRIPTION=WSTU-SC-25M},{W=1.0},{FS=WS300},{LF=RE-LUBE},{A=34.0},{B=96.8},{C=13.49},{D=50.8},{E=62.0},{F=15.9},{G=9.7},{H=16.0},{J=50.8},{K=33.3},{L=33.5},{M=75.82/76.58},{N=92.2},{R=14.2},{S=19.8},{T=35.1}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 25.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-300 |
