125710 - Dodge - F2B-VSC-55M
Regular price
$142.29 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

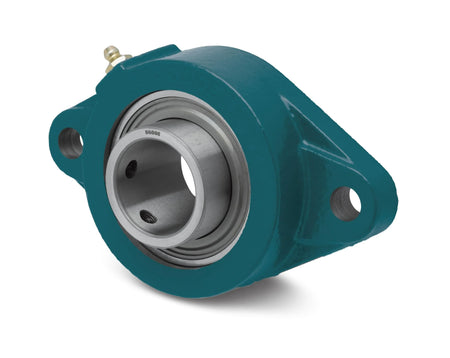

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
125710 - Dodge - F2B-VSC-55M
F2B-VSC-55M
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 7.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.2200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/2_bolt/f2b_vsc_m_asmtab.prj&varset={PN=125710},{SERIES=211},{SS=55},{DESCRIPTION=F2B-VSC-55M},{WEIGHT=2.99},{A=56.400},{B=219.200},{C=57.900},{D=184.200},{F=M16},{H=17.000},{J=17.300},{L=68.800},{M=133.400},{N=57.700}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 55.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
