125704 - Dodge - F2B-VSC-20M
Regular price
$52.01 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

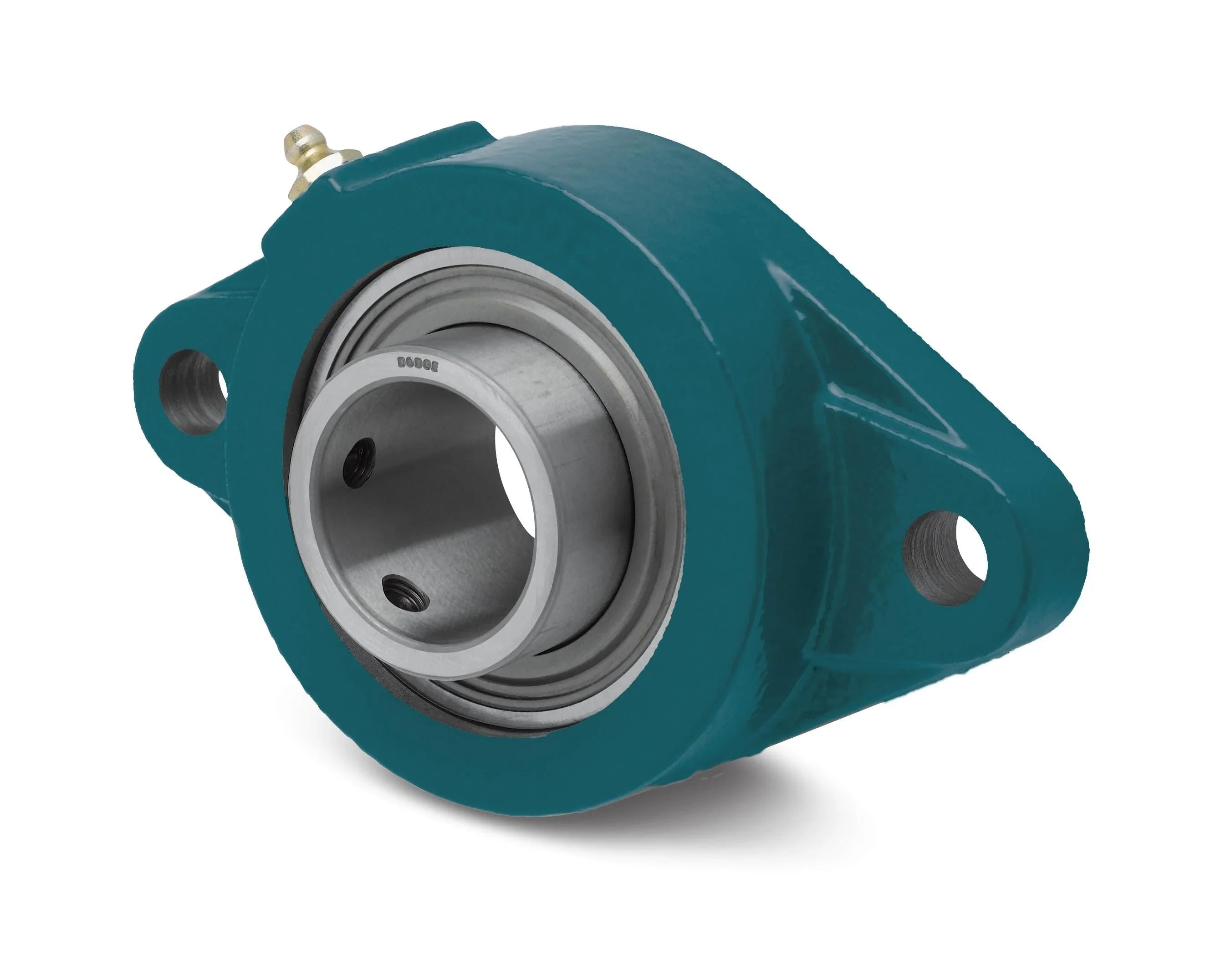

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
125704 - Dodge - F2B-VSC-20M
F2B-VSC-20M
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/2_bolt/f2b_vsc_m_asmtab.prj&varset={PN=125704},{SERIES=204},{SS=20},{DESCRIPTION=F2B-VSC-20M},{WEIGHT=0.63},{A=31.200},{B=112.000},{C=34.000},{D=89.700},{F=M10},{H=12.700},{J=9.100},{L=28.400},{M=60.500},{N=38.100}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 20.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
