125665 - Dodge - P2B-SXRU-75M
Regular price
$419.11 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

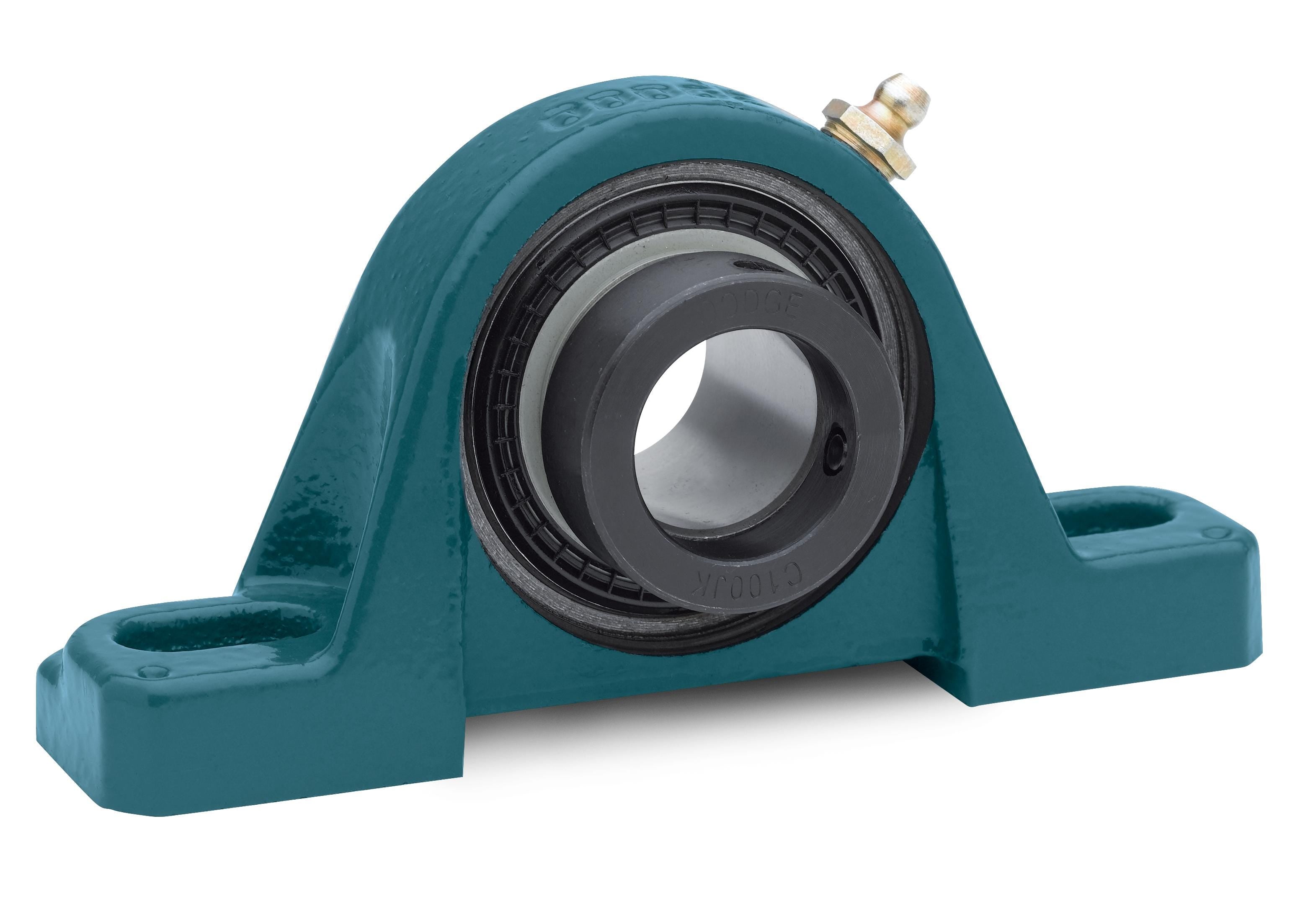

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
125665 - Dodge - P2B-SXRU-75M
P2B-SXRU-75M
Technical Specifications
| Ball Bearing Series | 215 Series |
| Base to Center Height | 3.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 9.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.3300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/metric/pillow_block/p2b_sxru_hm_asmtab.prj&varset={SERIES=215},{SS=75},{PN=125665},{DESCRIPTION=P2B-SXRU-75M},{WEIGHT=9.3},{A=76.7},{B=298.5},{C=73.2},{DMIN=215.9},{DMAX=241.3},{F=M22},{G=36.6},{H=25.4},{J=165.1},{L=101.6},{M=82.6},{R=21.8},{S=54.9},{U=139.2},{V=278.4},{W=26.4},{X=3.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 14872 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1750 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 75.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 11108 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-50,TS-350 |
