124748 - Dodge - LFT-SXV-008-NL
Regular price
$51.14 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

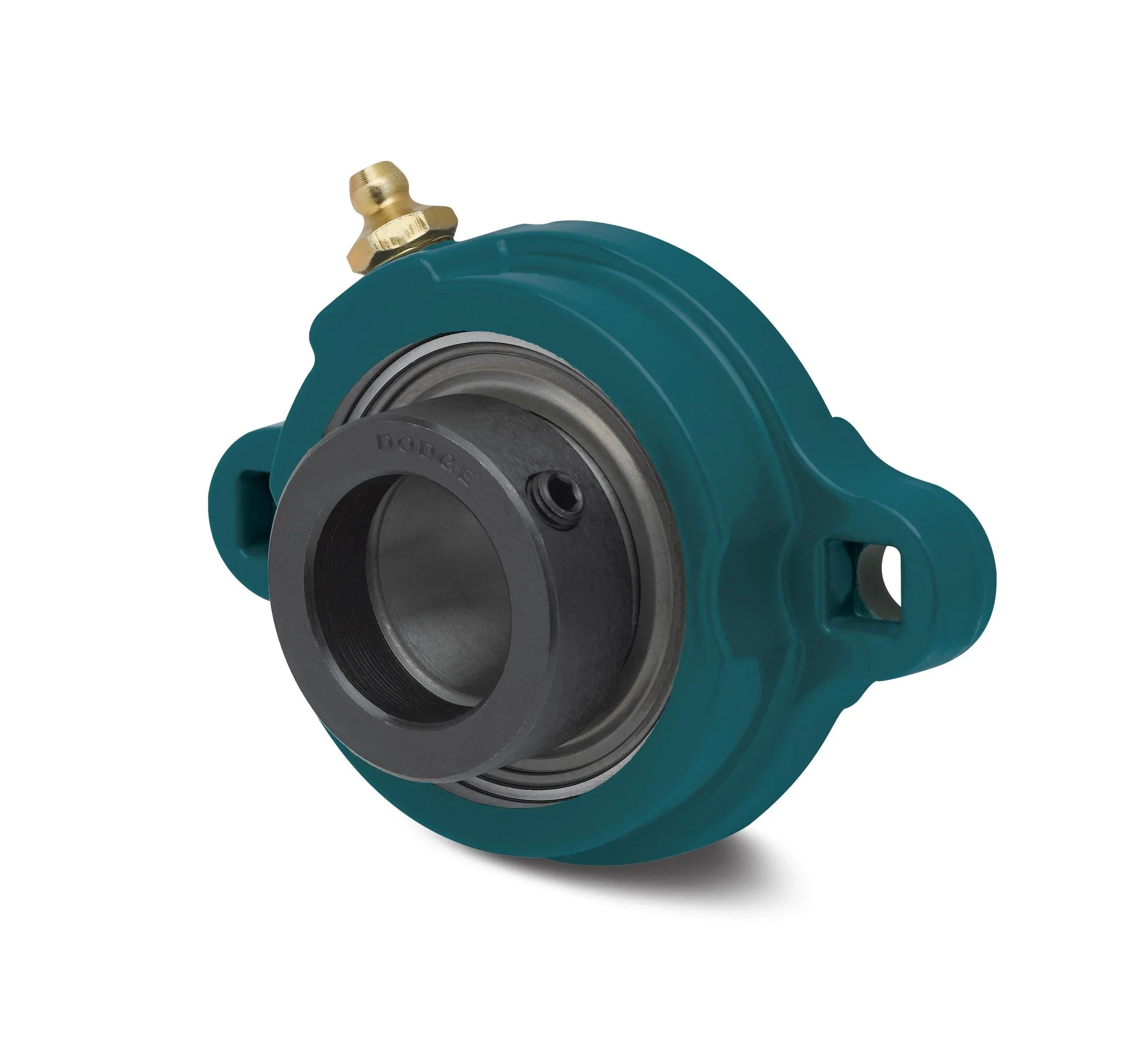

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
LFT-SXV-008-NL
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 203 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.2813 in |
| Bolt to Bolt (Max) | 2.5 in |
| Bolt to Bolt (Min) | 2.5 in |
| Bore Length | 1.13 in |
| Dynamic Load Capacity | 2158 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | No |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Alloy |
| Housing Type | Two-Bolt Flange (Light Duty) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 0.5 in |
| Standoff Housing | No |
| Static Load Capacity | 1079 lbf |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
