124633 - Dodge - LF-SC-107-NL
Regular price
$85.87 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

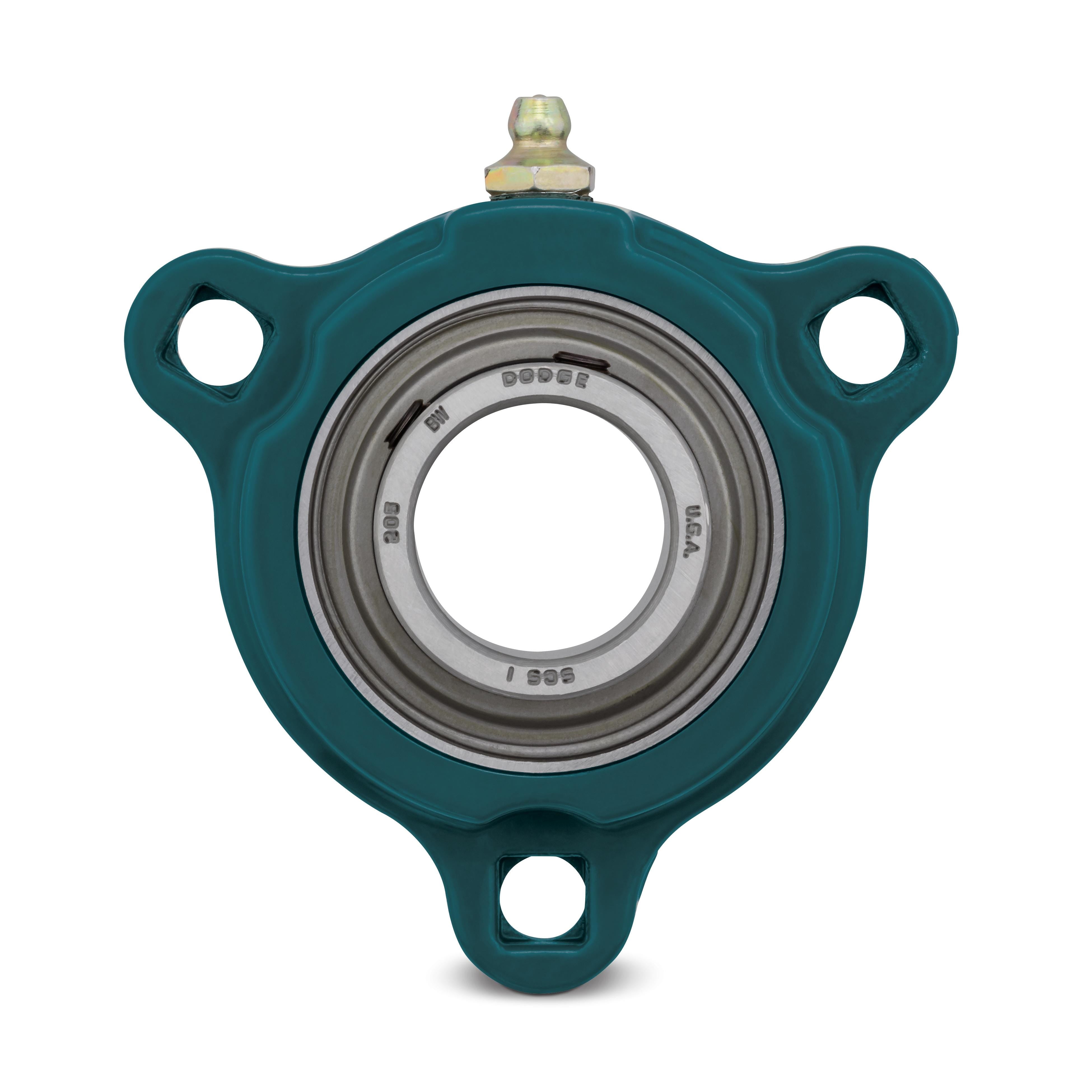

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
124633 - Dodge - LF-SC-107-NL
LF-SC-107-NL
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bolt Circle | 3.9400 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.4063 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.9400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.9400 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/lf_sc_hi_asmtab.prj&varset={SERIES=207},{SS=1-7/16},{PN=124633},{DESCRIPTION=LF-SC-107-NL},{W=1.95},{LF=NO-LUBE},{A=1.40},{B=4.81},{C=1.59},{D=3.94},{G=0.41},{H=0.50},{J=0.52},{L=1.84},{M=2.41},{N=2.14} |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Alloy |
| Housing Type | Three-Bolt Flange (Light Duty) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
