124620 - Dodge - LF-SC-008-NL
Regular price
$50.05 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

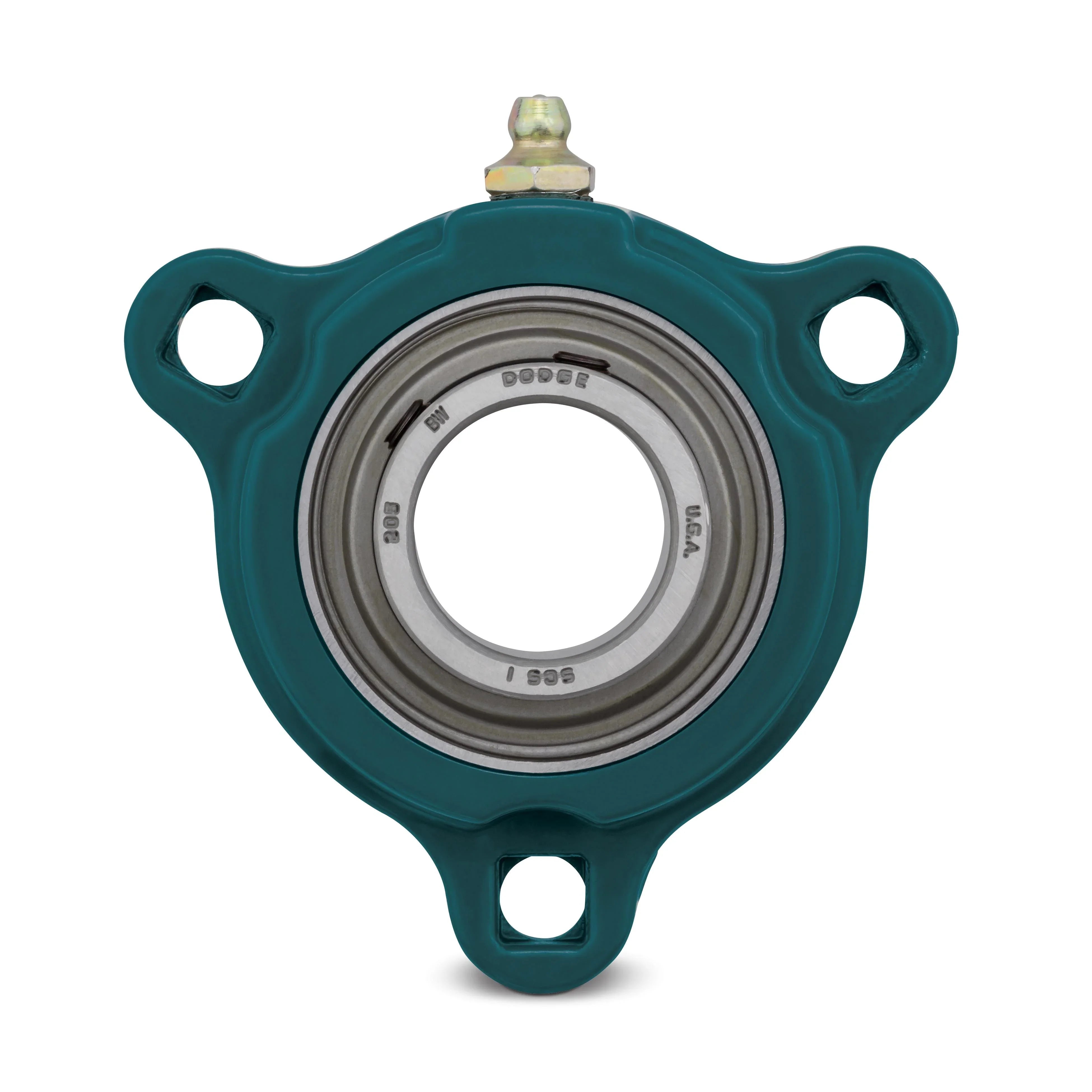

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
124620 - Dodge - LF-SC-008-NL
LF-SC-008-NL
Technical Specifications
| Ball Bearing Series | 203 Series |
| Bearing Type | Ball |
| Bolt Circle | 2.5000 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.2813 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/lf_sc_hi_asmtab.prj&varset={SERIES=203},{SS=1/2},{PN=124620},{DESCRIPTION=LF-SC-008-NL},{W=0.65},{LF=NO-LUBE},{A=1},{B=3.19},{C=1.05},{D=2.50},{G=0.28},{H=0.38},{J=0.33},{L=0.96},{M=1.59},{N=1.84} |
| Dynamic Load Capacity | 2158 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Alloy |
| Housing Type | Three-Bolt Flange (Light Duty) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1079 |
| Static Load Capacity (Unit) | POUND_FORCE |
