124424 - Dodge - HNG-SC-106
Regular price
$147.20 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

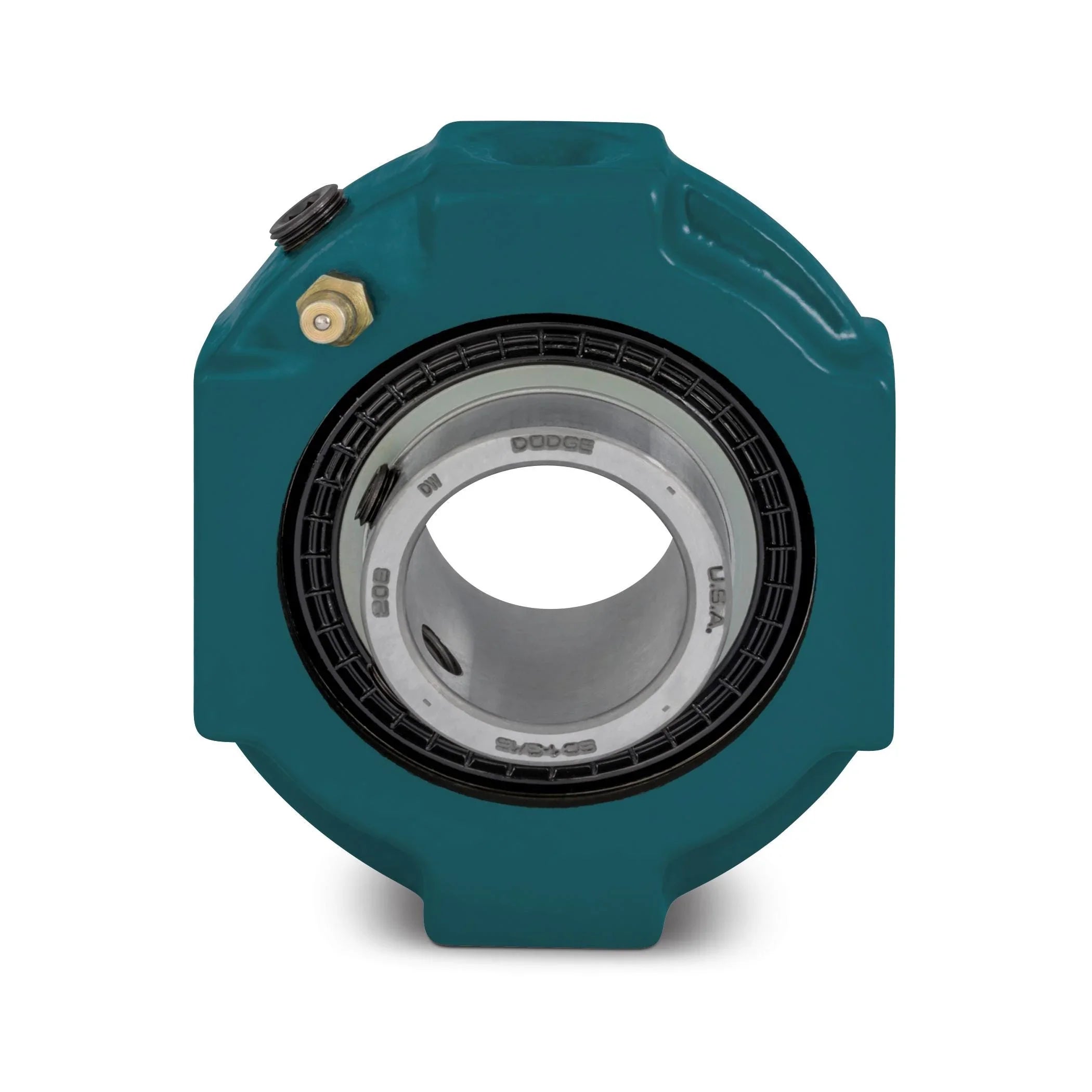

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
124424 - Dodge - HNG-SC-106
HNG-SC-106
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bore Length | 1.7100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/hanger/hng_sc_hi_asmtab.prj&varset={SERIES=207},{SS=1-3/8},{PN=124424},{DESCRIPTION=HNG-SC-106},{W=2.4},{A=1.71},{B=4.25},{C=1.68},{F=3.50},{L=1.84},{M=1/2},{R=0.67},{S=1.04}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Hanger |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.3750 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
